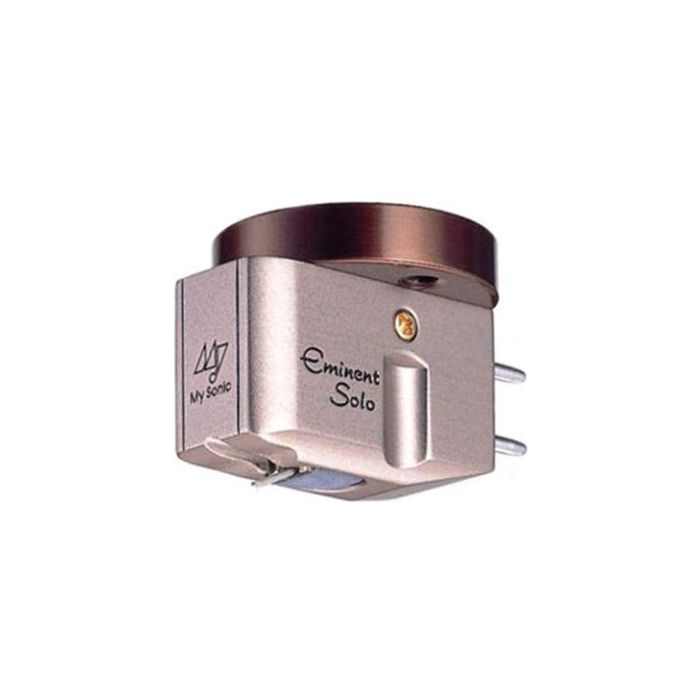

My Sonic Lab Eminent Solo Mono MC Phono Cartridge
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | Full Warranty |
| Product Type | Other |
Tech Specs
- Body: Extra Super Duralumin A7075 alloy body
- Type: Moving Coil
- Magnet: SH-μX core
- Cantilever: Super Duralumin
- Stylus: Semi-Line contact stylus (3µm x 30µm)
- Output Voltage: 0.4mV at 1kHz
- Internal Impedance: 1.2Ω (DCR)
- Weight: 9.0g
- Recommended Tracking Force: 1.9 – 2.2g
- Compliance: 10×10-6cm/dyen
- Recommended Loading: 100-800Ω (ideal is around 400Ω)
- Frequency Response: 10Hz – 50kHz
Description
My Sonic Lab Eminent Solo is a mono MC cartridge with an elliptical semi-line contact stylus. The eminent Solo has a low impedance maximum output design to produce a detailed resolution and efficient output.
Why the Eminent Mono?
My Sonic Labs’ Eminent Solo is a mono cartridge that uses the same engine as the highly regarded Eminent MC cartridge; an excellent choice for collectors of classic mono recordings.
Low Impedance Maximum Output Design
The Eminent Solo design, like all My Sonic Lab cartridge designs, is based on the low-impedance maximum output technique, which is achieved using very strong neodymium magnets in conjunction with a specially developed coil core material, named SH-µX. The SH-µX
The Eminent Solo uses a Neodymium #50 magnet that has no magnetic saturation interference, which reduces the number of coils wound, which in turn reduces the resistance while it’s high output voltage makes it possible to deliver efficient and detailed resolutions throughout the entire audio spectrum.
Semi-Line Contact Stylus
The Eminent Solo has a semi-line contact type stylus with a short radius of 3µmm and a long radius of 30µmm. This ensures accurate tracking, even with record grooves that have delicate amplitude variations.
The elliptical design increases contact surface area for improved stylus alignment and reduces incidence of miss-tracking caused by the pinch effect.
