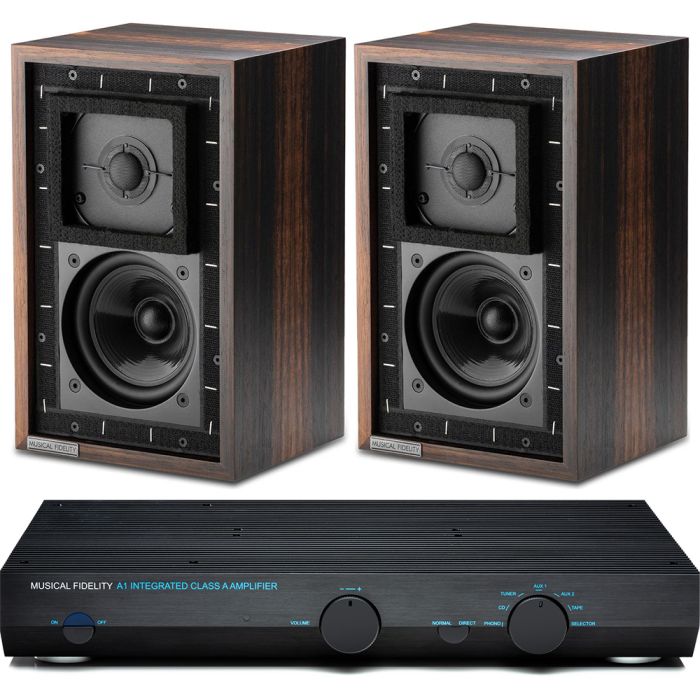

Musical Fidelity A1 Amplifier with LS3/5A Speakers Package
In stock
Available - Usually ships within 2-3 days
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Musical Fidelity A1 Integrated Amplifier
- Power: 25 Watts per channel into 8 Ohms
- Voltage: 42.5 Volts peak to peak
- Current: 25 Amps peak to peak
- Damping Factor: 150
- Gain (volume max): 32dB (Direct Mode), 42dB (Normal Mode)
- Output devices: 2 per channel
- Signal / noise ratio: 82dB
- Channel separation: 85dB
- Frequency response: + 0, –1dB, 10Hz to 40 kHz
- Line level sensitivity: 300mV rms nominal, 8V rms max
- Line level inputs impedance: 25k Ohms
- Tape Out impedance: 220 Ohms
- Pre Out impedance: 100 Ohms Phono Preamp: Phono RIAA response: +/- 1dB
- MM sensitivity: 5mV nominal
- MM capacitance / impedance / gain: 100pF / 50k Ohms / 40dB
- MM signal / noise ratio: 75dB
- MC sensitivity: 450μV nominal
- MC impedance / gain: 1k Ohm / 60dB
- MC signal / noise ratio: 70dB
- Inputs: 1x phono RCA MM/MC, 5x line RCA
- Outputs: 1 x line level RCA fix TAPE OUT • 1 x line level RCA var PRE OUT • 1 x 4mm banana/binding posts SPEAKER OUT
- General Information
- Dimensions (WxHxD): 440 x 68.3 x 283.3 mm
- Main voltages: 230V/115V Internally set or 100V optional
- Max. Consumption: 130W, 0W in standby (=Power Switch OFF)
- Weight: 10.5kg
Musical Fidelity LS3/5A Speakers (Pair)
- Type: Two way, closed type
- Frequency response: 80Hz-20KHz +/-3dB
- Nominal Impedance: 15 Ohms
- Sensitivity: 82.5dB/W/M
- Woofer: 110mm Cone
- Tweeter: 19mm Dome
- Recommended amplifier: 20-150W
- Cabinet: 12mm birch plywood
- Finish: Palisander veneer
- Dimensions: 305 x 190 x 165mm (HxWxD)
- Weight: 4.9Kg (each speaker)
Description
Musical Fidelity A1 Integrated Amplifier
Musical Fidelity A1 integrated amplifier is an updated version of the original A1 that was released in 1984, still offering the classic look of the original along with even better sound quality and updated features.
View Full Product Details Here
Musical Fidelity LS3/5A Speakers (Pair)
Musical Fidelity LS3/5A speakers are based on a classic BBC design from 1976, a two-way stand mount speaker that was designed for studio use and is a great choice for honest sound quality with flat frequency response.
