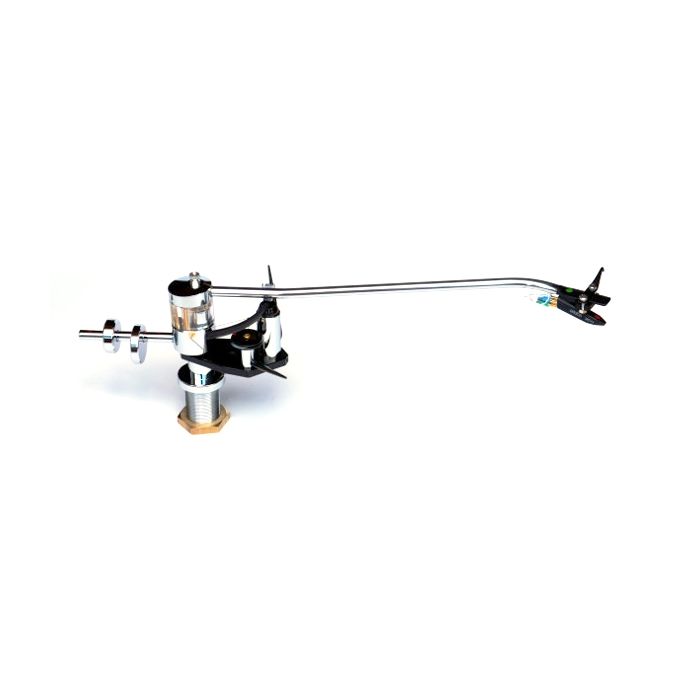

Moerch UP-4 MkII Tonearm
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Construction: Radial arm with interchangeable arm tubes
- Bearing principle: UP-4: Unipivot
Effective mass of complete tonearm with arm tube:
- Light (green): 4 g
- Medium (red): 7.5 g
- Extra heavy (blue): 14 g
- Fundamental resonance: 8 – 16 Hz
- Tracking force (calibrated scale): 0 – 3 g
- Bias compensation: Watch spring with string
- Azimuth: adjustable for correct channel separation.
- Cueing mechanism: Piston in U-pipe
- Damped with silicone fluid
- Distance between pivot
- Center of turnable platter: 212mm or 294.1mm
- Diameter of hole for mounting arm base: 20 mm
- Rear overhang from pivot: 70 mm
- Weight of UP-4: 240 g
- Weight of a set of counterweights: 120 g
- Effective length: 230 mm
- Offset angle: 24 degrees.
- Lateral tracking error: 0 degrees at 66mm
- 120.9 mm from center of record.
- Pivot point is in level with the record surface
- Bearing friction: less than 0.04 mN in all directions
- Balancing: Four (4) different balancing weights.
- Internal wiring: 19 strands of ultra pure silver insulated with Teflon
- Capacitance per channel: 28pF for all models.
Tonearm Cord:
- Balanced. Extremely purified copper strands
- Heavily silver coated. Halogen free insulation
- Moerch tonearm with Cardas RCA connectors
- Capacitance per channel: 100pF
- All terminals throughout the arm are gold plated
- Bearing concept of UP-4: Hardened steel pivot
- resting on a concave sapphire
- Damped for all motions with silicone fluid.
- UP-4 finish: CHROME or at special order GOLD
Description
Moerch model UP-4 MkII is a high end precision tonearm built around Moerch’s unique uni-pivot design. The UP-4 MkII offers great accuracy and stability when following the grooves on your turntable.
UP-4 MkII Design
Moerch’s model UP-4 MkII tonearm has a unique uni-pivot design. The bearing, which is dampened in all directions, is made of a hardened steel pivot resting on a concave, polished sapphire. The low positioning of the bearing provides better stability because a considerable part of the moveable mass of the arm is placed above the pivot point.
Customisable Tonearm
The model UP-4 MkII uses counterweights for the azimuth adjustment to allow you to get the best level for tracking. Like all Moerch models, they also have the facility of interchangeable arm wands.
