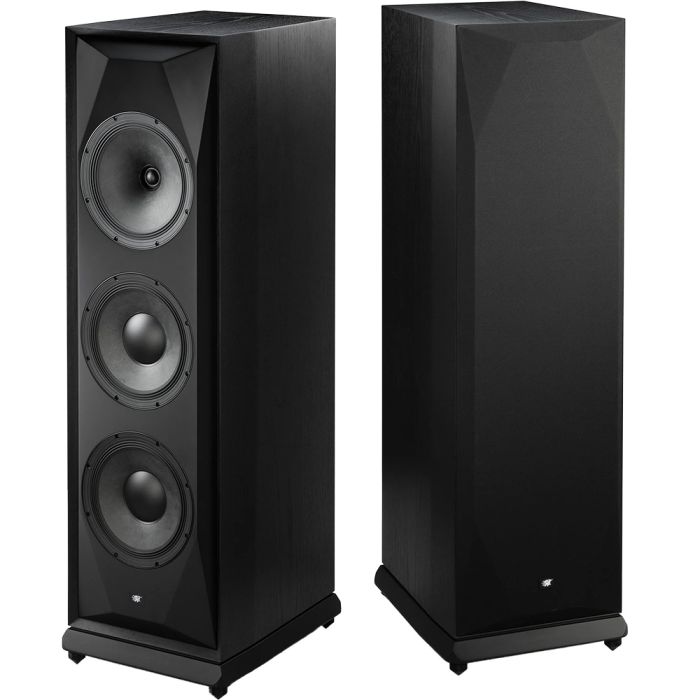

Mobile Fidelity Source Point V10 Speakers (Pair)
In stock
Features
| Removable Grilles | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- Frequency range - 27 Hz – 30 kHz
- Sensitivity - 91 dB (2.83 V / 1 m)
- Nominal impedance - 6 Ohms (4.5 Ohms minimum)
- Max power handling - 200 Watts
- Crossover frequencies - 130 Hz, 1.4 kHz
- System type - 3-way passive radiator with concentric driver
- Tweeter - 1.25" soft dome (tunable) — 31.8 mm
- Midrange - 10" paper cone — 254 mm
- Woofers - 2 × 10" paper cone — 2 × 254 mm
- Passive radiators - 2 × 10" — 2 × 254 mm
- Finishes - Walnut, Black Ash
- Dimensions (H × W × D) - 48.8" × 15.5" × 19.9" = 1240 mm × 394 mm × 505 mm
- Weight - 160 lbs = 72.6 kg
Description
The Mobile Fidelity Source Point V10 Speakers (Pair) represent a significant evolution of the acclaimed SourcePoint 10 platform, reimagined from the ground up by Andrew Jones. The V10 Master Edition incorporates a sophisticated multi-driver array designed to deliver exceptional scale, clarity and authority.
By adding twin 10-inch woofers and dual rear-firing passive radiators, deep bass responsibilities are removed from the concentric midrange and tweeter, allowing them to focus entirely on midband purity and treble refinement.
This configuration produces lifelike vocal presence, powerful bass extension, and crystal clear high frequencies. Housed in a resonance-controlled, multi-chambered cabinet, the V10 provides a bold, immersive soundstage suitable for demanding audiophiles seeking precision and musical impact.
Ten Drivers Working in Harmony
At the heart of the V10 system is its distinctive ten driver architecture, with five drivers operating in each speaker cabinet. This advanced layout features a concentric midrange and tweeter unit supported by twin 10 inch woofers and a pair of rear firing passive radiators.
Each driver is tasked with handling a specific part of the frequency spectrum, ensuring optimal control and minimal distortion. The result is a sound presentation that combines scale, speed and accuracy, filling the room with a large, three-dimensional soundstage.
Bass notes reach deep with authority, the midrange remains articulate and expressive, and the treble arrives with clarity and finesse. Every component works in harmony to achieve a seamless, unified performance.
Precision Low Frequency Engineering
The dual 10 inch passive radiators are engineered to deliver exceptionally controlled low-frequency reinforcement while avoiding the turbulence and coloration often associated with traditional bass ports. These radiators operate in isolated internal chambers and extend response down to 27 Hz with remarkable precision.
By absorbing much of the workload required for deep bass reproduction, they reduce strain on the active woofers, allowing them to operate within their ideal performance range. This improves clarity, transient response and overall bass articulation.
Whether playing complex orchestral pieces or modern electronic music, the V10 maintains stability, low distortion, and effortless power. The result is bass performance that feels deep, controlled and immersive, even at higher listening volumes.
Master Edition Crossover and Acoustic Refinement
A key component of the V10 Master Edition is its highly engineered, user-tunable crossover network. Built with premium components such as polypropylene film capacitors, metalized film resistors, and air core inductors, the crossover ensures low distortion and accurate signal management.
Adjustable treble settings allow listeners to tailor high frequency output to their room and personal preference, while careful phase alignment provides smooth transitions between all drivers. This enables a custom sound character without compromising neutrality or detail.
Complementing the crossover is a multi-faceted baffle designed to reduce edge diffraction and improve imaging. Its angled surfaces enhance dispersion and maintain clarity across a wide listening area, creating a dynamic and engaging soundstage.
Craftsmanship, Finishes and Everyday Practicality
The refined construction of the V10 extends beyond acoustics. The multi-chambered cabinet structure minimizes resonance, preserving detail and focus throughout playback. For users who prefer a more discreet appearance, the magnetically attached fabric grilles can be added or removed quickly while maintaining the baffle’s distinctive profile.
The speakers are available in two premium real wood veneer finishes: Walnut and Black Ash. Each cabinet is book-matched for natural grain continuity and sealed with a protective satin clear coat. These aesthetic details ensure the V10 looks as impressive as it sounds, blending seamlessly into both modern and traditional interiors.
With powerful engineering, elegant craftsmanship and user-friendly features, the V10 Master Edition offers an exceptional full-range listening experience.
