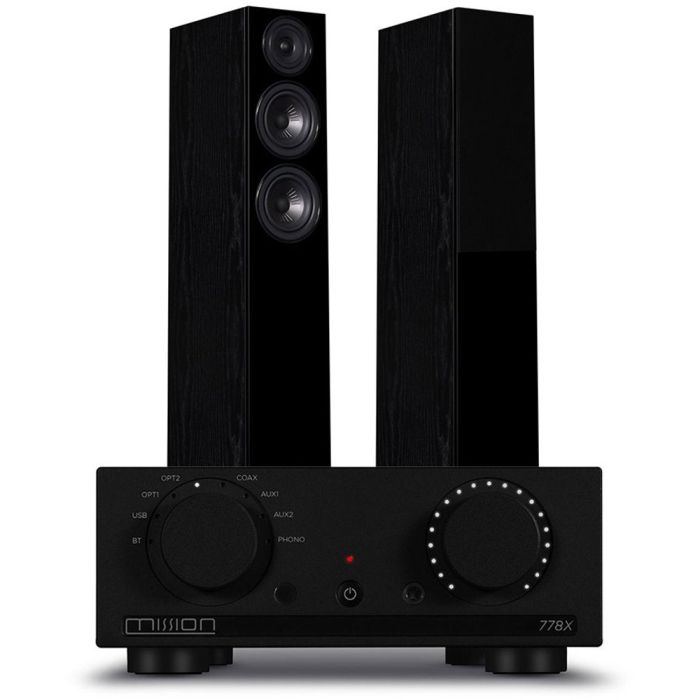

Mission 778X Integrated Amplifier with Wharfedale Diamond 12.3 Floorstanding Speakers
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Mission 778X Integrated Amplifier
- Model - 778X
- General Description - Digital-to-Analogue Converter, Stereo Amplifier
- Design Philosophy and Core Technology - • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support
- Large Tractile Controls With LED Level Indicators
- Inputs - 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
- 2 x AUX,1 x RCA (Phono MM)
- Outputs - 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
- Sampling Frequency - Optical / Coaxial: 44.1kHz-192kHz;
- PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
- Preamplifier Section -
- Gain (max.) - +0dB (Line), +47dB (Phono MM)
- Input Sensitivity - 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance - 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD) - <0.003%
- Frequency Response (ref. 1kHz) - 20Hz-20kHz (±0.1dB)
- PRE Output Level - 2.1Vrms (max.)
- PRE Output SNR - >110dB (A-weighted)
- DAC -
- D to A Converter - ESS Sabre32 ES9018K2M
- Resolution - 32-bit
- Max. Sampling Frequency - Optical/Coaxial: 192kHz;
- USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion (THD) - < 0.001% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz) - 2.1Vrms
- Power Amplifier Section -
- Gain - +31dB
- Rated Power Output - 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response (ref. 1kHz) - 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD) - <0.005% (30W / 8 ohms)
- Input Sensitivity - 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR) - >108dB (ref. 45W, A-weighted)
- Crosstalk @1K - >80dB (ref.1W)
- Standby Power Consumption - <0.5W
- Headphone Amplifier -
- Total Harmonic Distortion (THD) - < 0.01% (1kHz, 50mW )
- Output Impedance - 4.7 ohms
- Load impedance - 20-600 ohms
- General -
- Dimensions (mm) (W x H x D) - 236x98x380.6
- Carton Size (mm) ( W X H X D) - 450x392x175
- Net Weight - 6.3kg
- Finish - Black / Silver
- Power requirements (depending on region) - 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
- Standard Accessories - Power Cord, Remote Control, User Manual, Antenna
Wharfedale Diamond 12.3 Speakers (Pair)
- Type: 2.5-way bass reflex
- Bass: 5" advanced PP Cone
- Mid: 5" advanced PP Cone
- Treble Driver: 1" Textile Dome
- Sensitivity (2.83V @1M): 87.5dB
- Recommended Amp Power: 30-150W
- Peak SPL: 102dB
- Nominal Impedance: 8Ω Compatible
- Minimum Impedance: 4.6Ω
- Freq Response: (+/-3dB) 45Hz ~20kHz
- Bass Extension (-6dB): 40Hz
- Crossover Freq: 2.2kHz
- Cabinet Volume: 26.6L
- Dimensions (HWD): 975 x 180 x 348mm
- Net Weight: 19.5kg/pcs
Description
Mission 778X Integrated Amplifier
Missions 778X integrated amplifier represents a nearly four-decade obsession with sound for Mission. First launched as the 778 back in 1983, this amplifier is their first foray back into amplifiers since they launched the incredible Cyrus brand.
View Full Product Details Here
Wharfedale Diamond 12.3 Speakers (Pair)
Wharfedale Diamond 12.3 is the more compact floorstanding speaker in the series which retains the accuracy and musicality of the smaller standmount models. The refined presence and power make this an affordable option for an impressive stereo hi-fi system or at the front of a home cinema surround sound set up.
