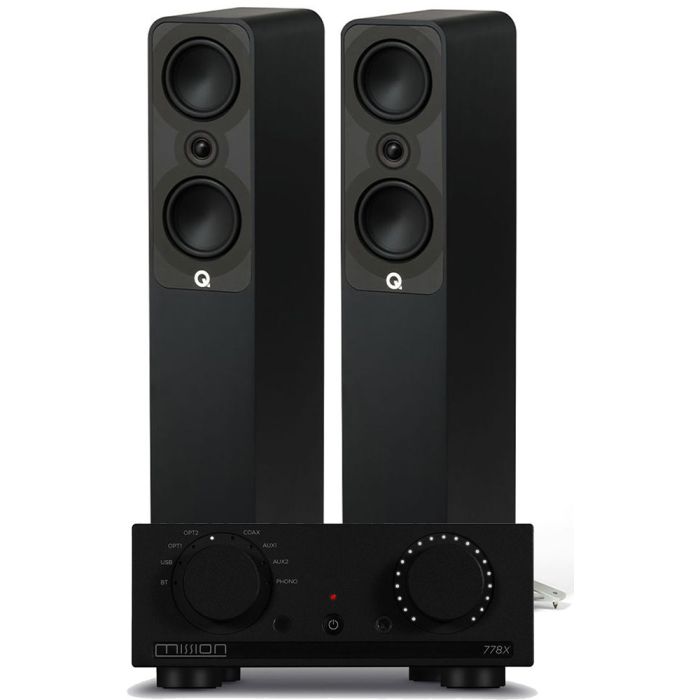

Mission 778X Integrated Amplifier with Q Acoustics Q 5040 Floorstanding Speakers
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Mission 778X Integrated Amplifier
- Model - 778X
- General Description - Digital-to-Analogue Converter, Stereo Amplifier
- Design Philosophy and Core Technology - • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support
- Large Tractile Controls With LED Level Indicators
- Inputs - 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
- 2 x AUX,1 x RCA (Phono MM)
- Outputs - 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
- Sampling Frequency - Optical / Coaxial: 44.1kHz-192kHz;
- PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
- Preamplifier Section -
- Gain (max.) - +0dB (Line), +47dB (Phono MM)
- Input Sensitivity - 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance - 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD) - <0.003%
- Frequency Response (ref. 1kHz) - 20Hz-20kHz (±0.1dB)
- PRE Output Level - 2.1Vrms (max.)
- PRE Output SNR - >110dB (A-weighted)
- DAC -
- D to A Converter - ESS Sabre32 ES9018K2M
- Resolution - 32-bit
- Max. Sampling Frequency - Optical/Coaxial: 192kHz;
- USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion (THD) - < 0.001% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz) - 2.1Vrms
- Power Amplifier Section -
- Gain - +31dB
- Rated Power Output - 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response (ref. 1kHz) - 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD) - <0.005% (30W / 8 ohms)
- Input Sensitivity - 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR) - >108dB (ref. 45W, A-weighted)
- Crosstalk @1K - >80dB (ref.1W)
- Standby Power Consumption - <0.5W
- Headphone Amplifier -
- Total Harmonic Distortion (THD) - < 0.01% (1kHz, 50mW )
- Output Impedance - 4.7 ohms
- Load impedance - 20-600 ohms
- General -
- Dimensions (mm) (W x H x D) - 236x98x380.6
- Carton Size (mm) ( W X H X D) - 450x392x175
- Net Weight - 6.3kg
- Finish - Black / Silver
- Power requirements (depending on region) - 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
- Standard Accessories - Power Cord, Remote Control, User Manual, Antenna
Q Acoustics Q 5040 Floorstanding Speakers
- Bass unit: 2 x 125 mm (5.0 in)
- Treble unit: 1 x 25 mm (1.0 in)
- Frequency response(-6dB): 39 Hz - 30 kHz
- Nominal impedance: 6 Ω
- Minimum impedance> 3.0 Ω
- Sensitivity (2.83V @ 1kHz): 91.5 dB/w/m
- Recommended amplifier power: 25-150 W
- Crossover frequency: 2.5 kHzz
- Effective volume: 27 L
- Dimensions (per loudspeaker / HxWxD)Inc spikes and stabiliser: 967 x 361 x 293 mm (38.1 x 14.2 x 11.5 in)
- Weight (per loudspeaker): 18.0 kg (39.7 lbs)
Description
Mission 778X Integrated Amplifier
Missions 778X integrated amplifier represents a nearly four-decade obsession with sound for Mission. First launched as the 778 back in 1983, this amplifier is their first foray back into amplifiers since they launched the incredible Cyrus brand.
View Full Product Details Here
Q Acoustics Q 5040 Floorstanding Speakers
Q Acoustics 5040 speakers are floorstanders of distinction, offering a big sound from compact cabinets that have a modest footprint. This makes them perfect for smaller rooms without compromising on sound or style.
