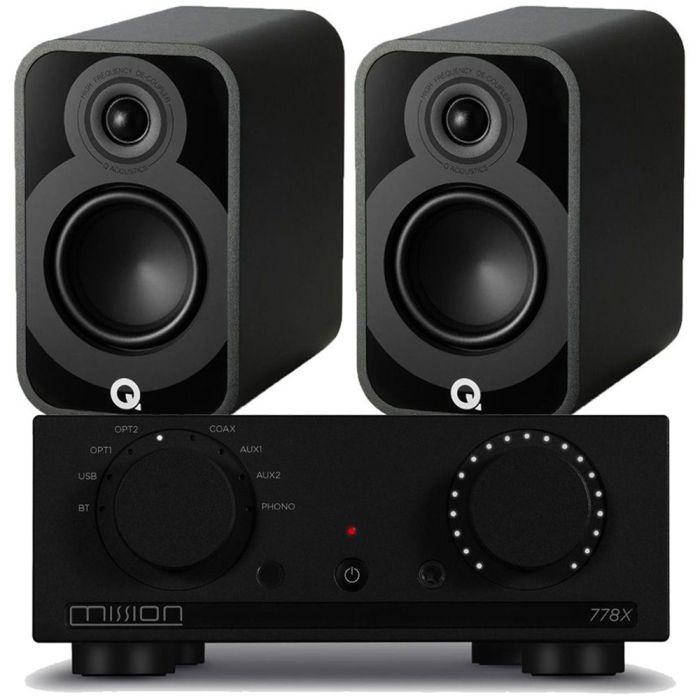

Mission 778X Integrated Amplifier with Q Acoustics 5010 Bookshelf Speakers
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Mission 778X Integrated Amplifier
- Model - 778X
- General Description - Digital-to-Analogue Converter, Stereo Amplifier
- Design Philosophy and Core Technology - • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support
- Large Tractile Controls With LED Level Indicators
- Inputs - 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
- 2 x AUX,1 x RCA (Phono MM)
- Outputs - 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
- Sampling Frequency - Optical / Coaxial: 44.1kHz-192kHz;
- PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
- Preamplifier Section -
- Gain (max.) - +0dB (Line), +47dB (Phono MM)
- Input Sensitivity - 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance - 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD) - <0.003%
- Frequency Response (ref. 1kHz) - 20Hz-20kHz (±0.1dB)
- PRE Output Level - 2.1Vrms (max.)
- PRE Output SNR - >110dB (A-weighted)
- DAC -
- D to A Converter - ESS Sabre32 ES9018K2M
- Resolution - 32-bit
- Max. Sampling Frequency - Optical/Coaxial: 192kHz;
- USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion (THD) - < 0.001% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz) - 2.1Vrms
- Power Amplifier Section -
- Gain - +31dB
- Rated Power Output - 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response (ref. 1kHz) - 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD) - <0.005% (30W / 8 ohms)
- Input Sensitivity - 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR) - >108dB (ref. 45W, A-weighted)
- Crosstalk @1K - >80dB (ref.1W)
- Standby Power Consumption - <0.5W
- Headphone Amplifier -
- Total Harmonic Distortion (THD) - < 0.01% (1kHz, 50mW )
- Output Impedance - 4.7 ohms
- Load impedance - 20-600 ohms
- General -
- Dimensions (mm) (W x H x D) - 236x98x380.6
- Carton Size (mm) ( W X H X D) - 450x392x175
- Net Weight - 6.3kg
- Finish - Black / Silver
- Power requirements (depending on region) - 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
- Standard Accessories - Power Cord, Remote Control, User Manual, Antenna
Q Acoustics 5010 Speakers (Pair)
- Bass unit 1 x 110 mm (4.5 in)
- Treble unit1 x 25 mm (1.0 in)
- Frequency response(-6dB) 56Hz - 30 kHz
- Nominal impedance 6 Ω
- Minimum impedance 3.3 Ω
- Sensitivity (2.83V @ 1kHz) 86.3 dB/w/m
- Recommended amplifier power 15-90 W
- Crossover frequency 2.5 kHz
- Effective volume 5.0 L
- Dimensions (per loudspeaker / HxWxD)264 x 160 x 263 mm (10.4 x 6.3 x 10.4 in)
- Weight (per loudspeaker) 5.6 kg (12.3 lbs)
Description
Mission 778X Integrated Amplifier
Missions 778X integrated amplifier represents a nearly four-decade obsession with sound for Mission. First launched as the 778 back in 1983, this amplifier is their first foray back into amplifiers since they launched the incredible Cyrus brand.
View Full Product Details Here
Q Acoustics 5010 Speakers (Pair)
Q Acoustics 5010 stand mount speakers are small in size but big in sound. Even though they are the entry-level model in the 5000 range, they demand attention and boast superb performance, with a sound that is beyond what you would expect from compact and easy-to-position speakers.
