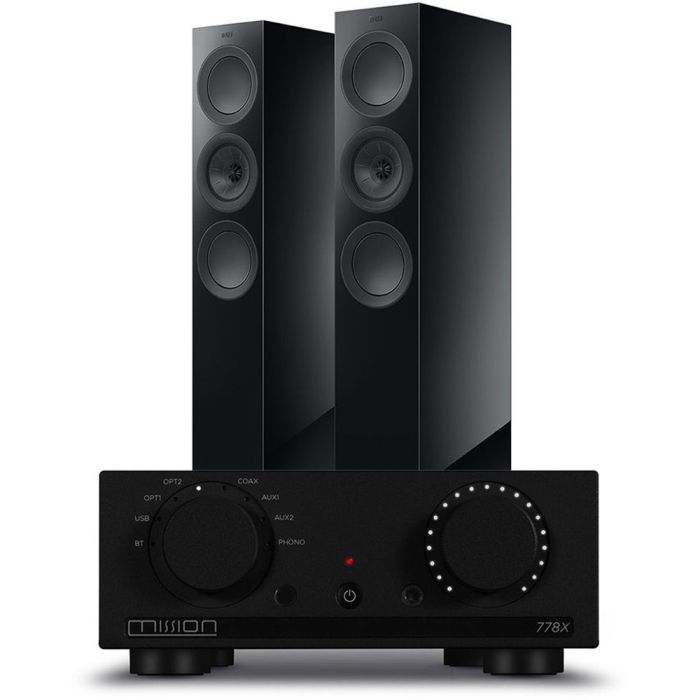

Mission 778X Integrated Amplifier with KEF R5 Meta Floorstanding Speakers
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Mission 778X Integrated Amplifier
- Model - 778X
- General Description - Digital-to-Analogue Converter, Stereo Amplifier
- Design Philosophy and Core Technology - • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support
- Large Tractile Controls With LED Level Indicators
- Inputs - 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
- 2 x AUX,1 x RCA (Phono MM)
- Outputs - 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
- Sampling Frequency - Optical / Coaxial: 44.1kHz-192kHz;
- PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
- Preamplifier Section -
- Gain (max.) - +0dB (Line), +47dB (Phono MM)
- Input Sensitivity - 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance - 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD) - <0.003%
- Frequency Response (ref. 1kHz) - 20Hz-20kHz (±0.1dB)
- PRE Output Level - 2.1Vrms (max.)
- PRE Output SNR - >110dB (A-weighted)
- DAC -
- D to A Converter - ESS Sabre32 ES9018K2M
- Resolution - 32-bit
- Max. Sampling Frequency - Optical/Coaxial: 192kHz;
- USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion (THD) - < 0.001% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz) - 2.1Vrms
- Power Amplifier Section -
- Gain - +31dB
- Rated Power Output - 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response (ref. 1kHz) - 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD) - <0.005% (30W / 8 ohms)
- Input Sensitivity - 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR) - >108dB (ref. 45W, A-weighted)
- Crosstalk @1K - >80dB (ref.1W)
- Standby Power Consumption - <0.5W
- Headphone Amplifier -
- Total Harmonic Distortion (THD) - < 0.01% (1kHz, 50mW )
- Output Impedance - 4.7 ohms
- Load impedance - 20-600 ohms
- General -
- Dimensions (mm) (W x H x D) - 236x98x380.6
- Carton Size (mm) ( W X H X D) - 450x392x175
- Net Weight - 6.3kg
- Finish - Black / Silver
- Power requirements (depending on region) - 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
- Standard Accessories - Power Cord, Remote Control, User Manual, Antenna
KEF R5 Meta Speakers (Pair)
- Design: Three Way bass reflex
- Drivers
- Uni-Q Driver Array: HF: 25 mm (1 in.) vented aluminium dome with MAT
- MF: 125 mm (5 in.) aluminium cone
- Bass Unit: LF: 2 x 130 mm (5.25 in.) hybrid aluminium cone
- Crossover frequency: 400 Hz, 2.7 kHz
- Frequency range (-6dB) : 38 Hz - 50 kHz
- Typical in-room bass response (-6dB) : 29Hz
- Frequency response (±3dB) : 58 Hz - 28kHz
- Harmonic distortion (90dB, 1m) : <1% 75 Hz and above <0.5% 110 Hz - 20 kHz
- Maximum output: 110dB
- Amplifier requirements: 15-200W
- Nominal Impedance: 4 Ω (min. 3.2 Ω)
- Sensitivity (2.83V/1m): 87dB
- Weight: 50kg (as a pair)
- Dimension (H x W x D) with terminal: 1025 x 175 x 344 mm (per unit)
Description
Mission 778X Integrated Amplifier
Missions 778X integrated amplifier represents a nearly four-decade obsession with sound for Mission. First launched as the 778 back in 1983, this amplifier is their first foray back into amplifiers since they launched the incredible Cyrus brand.
View Full Product Details Here
KEF R5 Meta Speakers (Pair)
KEF R5 Meta speakers (Pair) combine a sleek aesthetic with high-calibre sound quality, encapsulating the innovative vision of KEF’s upgraded Q-Series in its eighth carnation.
KEF R5 Meta speakers are elegant and compact floorstanders, the latest version of the smaller floorstanding speaker in the R-series range, now with a Meta upgrade. Along with the larget R7 Meta and R11 Meta, R5 Meta is the next best thing to KEF Reference floorstanding speakers, at a lower price point.
Revolutionary metamaterial has been added to the tweeter, for even less distortion. The R5 also uses the unique KEF Uni-Q driver array, as well as two 130mm hybrid aluminium bass units. The Uni-Q diver combines the tweeter and midrange unit together and is designed to distribute sound more evenly throughout the room. The is also a shadow flare around the driver to reduce diffraction.
