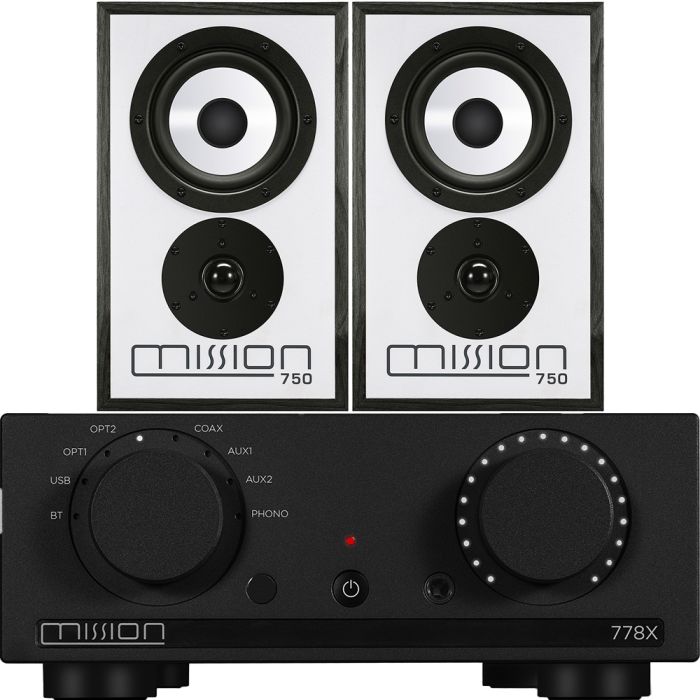

Mission 778X Integrated Amplifier and 750 Speakers Package
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Mission 778X Integrated Amplifier
- Model - 778X
- General Description - Digital-to-Analogue Converter, Stereo Amplifier
- Design Philosophy and Core Technology - • Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support
- Large Tractile Controls With LED Level Indicators
- Inputs - 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
- 2 x AUX,1 x RCA (Phono MM)
- Outputs - 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
- Sampling Frequency - Optical / Coaxial: 44.1kHz-192kHz;
- PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
- Preamplifier Section -
- Gain (max.) - +0dB (Line), +47dB (Phono MM)
- Input Sensitivity - 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance - 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD) - <0.003%
- Frequency Response (ref. 1kHz) - 20Hz-20kHz (±0.1dB)
- PRE Output Level - 2.1Vrms (max.)
- PRE Output SNR - >110dB (A-weighted)
- DAC -
- D to A Converter - ESS Sabre32 ES9018K2M
- Resolution - 32-bit
- Max. Sampling Frequency - Optical/Coaxial: 192kHz;
- USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion (THD) - < 0.001% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz) - 2.1Vrms
- Power Amplifier Section -
- Gain - +31dB
- Rated Power Output - 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response (ref. 1kHz) - 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD) - <0.005% (30W / 8 ohms)
- Input Sensitivity - 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR) - >108dB (ref. 45W, A-weighted)
- Crosstalk @1K - >80dB (ref.1W)
- Standby Power Consumption - <0.5W
- Headphone Amplifier -
- Total Harmonic Distortion (THD) - < 0.01% (1kHz, 50mW )
- Output Impedance - 4.7 ohms
- Load impedance - 20-600 ohms
- General -
- Dimensions (mm) (W x H x D) - 236x98x380.6
- Carton Size (mm) ( W X H X D) - 450x392x175
- Net Weight - 6.3kg
- Finish - Black / Silver
- Power requirements (depending on region) - 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
- Standard Accessories - Power Cord, Remote Control, User Manual, Antenna
750 Speakers
- Model - Mission 750
- General description - Two-way standmount
- Design philosophy and core technology -
- Enclosure type - Bass reflex
- Transducer complement - 2-way
- ABR -
- Bass driver - 5.25" (135mm) mineral loaded polypropylene cone
- Midrange driver -
- Treble driver - 1.25" (28mm) Soft Dome
- Full-range driver -
- AV shield - No
- Sensitivity (2.83V @ 1m) - 86dB
- Recommended amplifier power - 25W - 100W
- Peak power handling -
- Peak SPL - 103dB
- Nominal impedance - 6Ω (Compatible 8Ω)
- Minimum impedance - 4.5Ω
- Frequency response(+/-3dB) - 48Hz - 20kHz
- Bass extension(-6dB) - 42Hz
- Crossover frequency - 2.4kHz
- Cabinet Volume (in litres) - 12.2L
- Dimensions (mm) -
- Height (on plinth) - 355mm
- Width - 216mm
- Depth (with terminals) - (270 + 35) mm
- Carton size - 565 * 395 * 485 mm
- Net weight - 9.0kg / pcs
- Gross weight - 19.5kg / ctn
- Finish - Walnut or Black Oak real wood veneer with white bafe finish
- Standard accessories - rubber feet
Description
The speakers - Mission 750 Speakers(Pair)
The Mission 750 Speakers is inspired by previous designs. However, it features an entirely new concept. It is a smaller bookshelf model and is technically advanced while maintaining a classic look.
View Full Product Details Here
The amplifier - Mission 778X Integrated Amplifier
Missions 778X integrated amplifier represents a nearly four-decade obsession with sound for Mission. First launched as the 778 back in 1983, this amplifier is their first foray back into amplifiers since they launched the incredible Cyrus brand.
View Full Product Details Here
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
