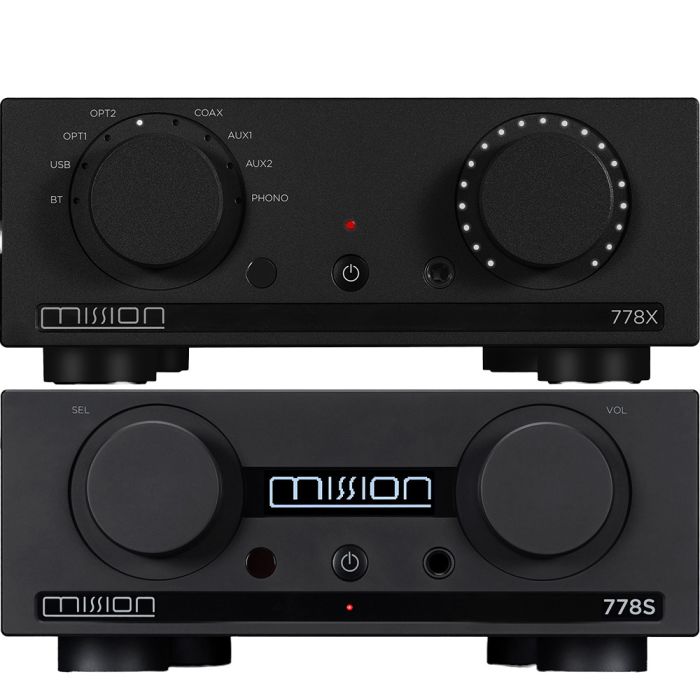

Mission 778X Amplifier and 778S Streamer Bundle

Mission 778X Integrated Amplifier:
- Model: 778X
- General Description: Digital-to-Analogue Converter, Stereo Amplifier
- Design Philosophy and Core Technology: Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support
- Large Tractile Controls With LED Level Indicators
- Inputs: 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
- 2 x AUX,1 x RCA (Phono MM)
- Outputs: 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
- Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz;
- PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
- Preamplifier Section
- Gain (max.): +0dB (Line), +47dB (Phono MM)
- Input Sensitivity: 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance: 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD): <0.003%
- Frequency Response (ref. 1kHz): 20Hz-20kHz (±0.1dB)
- PRE Output Level: 2.1Vrms (max.)
- PRE Output SNR: >110dB (A-weighted)
- DAC
- D to A Converter: ESS Sabre32 ES9018K2M
- Resolution: 32-bit
- Max. Sampling Frequency: Optical/Coaxial: 192kHz;
- USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion (THD): < 0.001% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz): 2.1Vrms
- Power Amplifier Section
- Gain: +31dB
- Rated Power Output: 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response (ref. 1kHz): 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD): <0.005% (30W / 8 ohms)
- Input Sensitivity: 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR): >108dB (ref. 45W, A-weighted)
- Crosstalk @1K: >80dB (ref.1W)
- Standby Power Consumption: <0.5W
- Headphone Amplifier
- Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW )
- Output Impedance: 4.7 ohms
- Load impedance: 20-600 ohms
- General
- Dimensions (mm) (W x H x D): 236x98x380.6
- Carton Size (mm) ( W X H X D): 450x392x175
- Net Weight: 6.3kg
- Finish: Black / Silver
- Power requirements (depending on region): 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
- Standard Accessories: Power Cord, Remote Control, User Manual, Antenna

Mission 778S Streamer:
- Digital Output Intensity: 500 ± 50mVpp
- Digital Output Impedance: 75 ohms
- Digital Frequency Response: -0.01dB (20Hz – 20kHz, ref. 1kHz)
- Digital Max Sampling Frequency: 192kHz / 24-bit
- Digital Outputs: 1 × coaxial, 1 × optical, USB audio out
- D To A Converter: ES9038Q2M
- Variable Output Voltage (0dBFS, 1kHz): 0 – 2.05Vrms (RCA)0 – 4.1Vrms (XLR)
- DAC Frequency Response: ±0.5dB (20Hz – 20kHz, ref. 1kHz)
- Total Harmonic Distortion: <0.001% (1kHz @ 2.05Vrms)
- DAC Max Sampling Frequency: 768kHz / 32-bit
- Signal-To-Noise Ratio (A-Weighted): >116dB (RCA), >120dB (XLR)
- DAC Output Impedance: 120 ohm (RCA)56 ohm (XLR)
- Headphone Amplifier THD: <0.01% (1kHz, 50mW)
- Headphone Output Impedance: 2.35 ohm
- Headphone Load Impedance: 20–600 ohm
- Standby Power Consumption: <0.5W
- Net Weight: 5.3kg
- Gross Weight: 6.7kg
- Dimensions (W × H × D): 236 × 98 × 357mm
- Carton Size (W × H × D): 396 × 190 × 445mm
