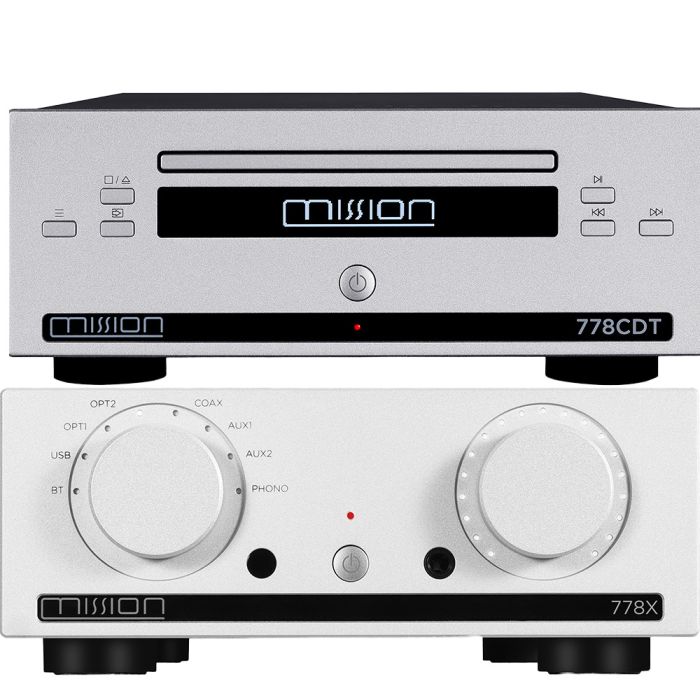

Mission 778X Amplifier and 778CDT CD Transport Bundle
In stock
Features
| Warranty The length of time your product is protected by warranty | 3 Years |
|---|---|
| Brand Color | None |
Tech Specs
Mission 778X Integrated Amplifier:
- Model: 778X
- General Description: Digital-to-Analogue Converter, Stereo Amplifier
- Design Philosophy and Core Technology: Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support
- Large Tractile Controls With LED Level Indicators
- Inputs: 1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
- 2 x AUX,1 x RCA (Phono MM)
- Outputs: 1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
- Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz;
- PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD256
- Preamplifier Section
- Gain (max.): +0dB (Line), +47dB (Phono MM)
- Input Sensitivity: 540mV (Line, Volume = 0dB); 2.5mV (Phone MM, Volume = 0dB)
- Input Impedance: 10K (AUX); 47K//100pF (Phono MM)
- Total Harmonic Distortion (THD): <0.003%
- Frequency Response (ref. 1kHz): 20Hz-20kHz (±0.1dB)
- PRE Output Level: 2.1Vrms (max.)
- PRE Output SNR: >110dB (A-weighted)
- DAC
- D to A Converter: ESS Sabre32 ES9018K2M
- Resolution: 32-bit
- Max. Sampling Frequency: Optical/Coaxial: 192kHz;
- USB: PCM 384kHz / 11.2896MHz (DSD256)
- Total Harmonic Distortion (THD): < 0.001% (1KHz @ 0dBFS)
- Output level (0dBFS, 1KHz): 2.1Vrms
- Power Amplifier Section
- Gain: +31dB
- Rated Power Output: 2x45W(@8ohms); 2 x 65W (@ 4 ohms)
- Frequency Response (ref. 1kHz): 20Hz-20KHz (± 0.5dB)
- Total Harmonic Distortion (THD): <0.005% (30W / 8 ohms)
- Input Sensitivity: 540mV (RCA AUX In); 2.5mV (Phono MM)
- Signal-to-Noise Ratio (SNR): >108dB (ref. 45W, A-weighted)
- Crosstalk @1K: >80dB (ref.1W)
- Standby Power Consumption: <0.5W
- Headphone Amplifier
- Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW )
- Output Impedance: 4.7 ohms
- Load impedance: 20-600 ohms
- General
- Dimensions (mm) (W x H x D): 236x98x380.6
- Carton Size (mm) ( W X H X D): 450x392x175
- Net Weight: 6.3kg
- Finish: Black / Silver
- Power requirements (depending on region): 220-240V ~ 50/60Hz; 100-120V ~ 50/60Hz
- Standard Accessories: Power Cord, Remote Control, User Manual, Antenna
Mission 778CDT CD Transport:
- Model: 778CDT
- Design Philosophy and Core Technology: Precision digital transport design, Optimised signal integrity for stable digital output, Focus on accurate clocking and low-jitter performance
- USB Storage Device Audio Format: WAV, MP3, WMA, AAC, FLAC, APE
- USB Storage Device File System: FAT16, FAT32, exFAT
- Digital Output Amplitude: 500 ±50 mVpp
- Output Impedance: 75 Ω
- Frequency Response: –0.01 dB (20 Hz – 20 kHz, reference 1 kHz)
- Sampling Rate: 44.1 kHz
- Digital Output Interface: 1 × Coaxial, 1 × Optical
- Standby Power Consumption: < 0.5 W
- Power Requirements (According to Region): 220–240 V, 50 / 60 Hz, 100–120 V, 50 / 60 Hz
- Product Size (W × H × D): 236 × 96 × 357 mm
- Carton Size (W × H × D): 470 × 161 × 514 mm
- Net Weight: 5.04 kg
- Gross Weight: 6.74 kg
- Finish: Silver, Black
Description
The Mission 778X Amplifier and 778CDT CD Transport Bundle has been specially selected to give you the very best experience from a combination from the hugely popular Mission range
The Amplifier - Mission 778X Integrated Amplifier
Missions 778X integrated amplifier represents a nearly four-decade obsession with sound for Mission. First launched as the 778 back in 1983, this amplifier is their first foray back into amplifiers since they launched the incredible Cyrus brand.
View Full Product Details Here
The CD Player - Mission 778CDT CD Transport
The Mission 778CDT CD Transport was created to complete the 778 Series, standing alongside the acclaimed 778X Integrated Amplifier and the 778S Streamer as a dedicated digital source for CD playback. Mission’s philosophy has always been to remove unnecessary complexity and focus on what truly matters, which is faithful musical reproduction.
View Full Product Details Here
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
