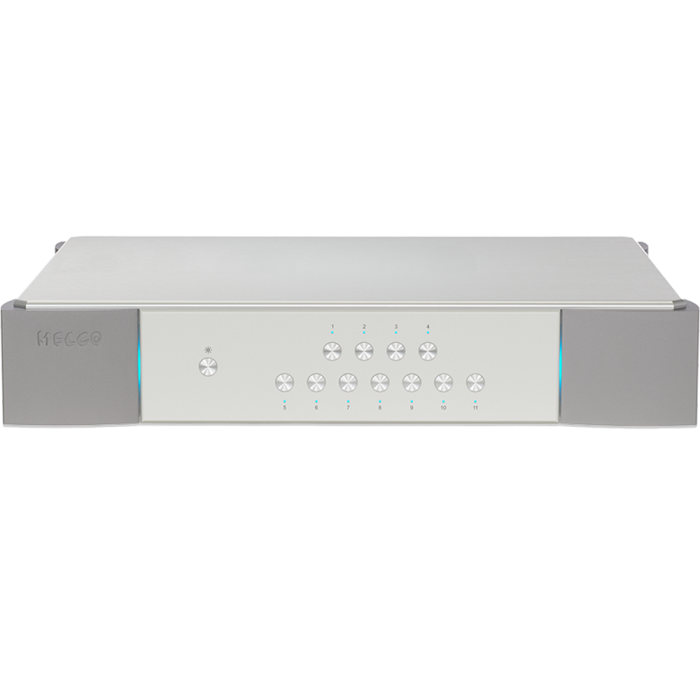

Melco S1 Flagship Audiophile Network Data Switch
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
Ports
- 4 x SFP+ (No.1-4, 10Gbps/1Gbps/OFF selectable)
- 7 x RJ45 (No.5-11, 1Gbps/100Mbps/10Mbps/OFF selectable)
- USB 2.0 (for power supply only)
Output Current
- SFP+ Port (4 Ports Total): Max. 1.8 A (DC 3.3 V)
- USB Port: Max. 0.9 A (DC 5 V)
Clock Input
- BNC, 10MHz, 50Ω, 0.5–5 Vpp
Power
- Dedicated 12 V toroidal separate power supply
General
- Size 440 x 82 x 353 mm (W H L)
- Weight Approx.14 kg
Model name
- Silver : S1-X-E (AC230V) / S1-X-EA (AC120V)
- Black : S1-XB-E (AC(230V) / S1-XB-EA (AC120V)
Description
The Melco S1 Flagship Audiophile Network Data Switch is a top-end network switch used to connect digital audio equipment. This equipment can include streamers and AV receivers with an Ethernet network connector.
Your router is also connected so that it can share data. The S1 has eleven ports and a linear power supply. The main aim is to reduce noise and jitter present on standard network switches.
Eleven ports
Eleven Ethernet ports are available on the Melco S1 Flagship Audiophile Network Data Switch. Each is optimized and can have its link speed set separately. The front buttons use a colour-coded indicator to show the speed set for that port.
This method optimizes the connection to match the connected equipment accurately. Moreover, any unused port can be switched off. Additionally, the LED activity indicators on the back can be turned off.
High-end design
The Melco S1 Flagship Audiophile Network Data Switch's main board has unique features specific to audio signal data. This ensures the best sound quality. There is also a high-quality linear power supply to reduce noise. For even more accuracy an external clock can be used. Professional grade Neutrik RJ45 connectors are used to maintain a good connection.
Why an audio network switch?
Standard network switches can introduce noise that interferes with audio data. Consequently, the Melco S1 Flagship Audiophile Network Data Switch has a design that reduces jitter and noise from the power supply.
The Melco S1 Flagship Audiophile Network Data Switch connects to your home router and then allows the signal to be streamed to connected devices. Devices can include PCs, laptops, DACs, Streamers, AV receivers, cameras, network drives, and many others.
