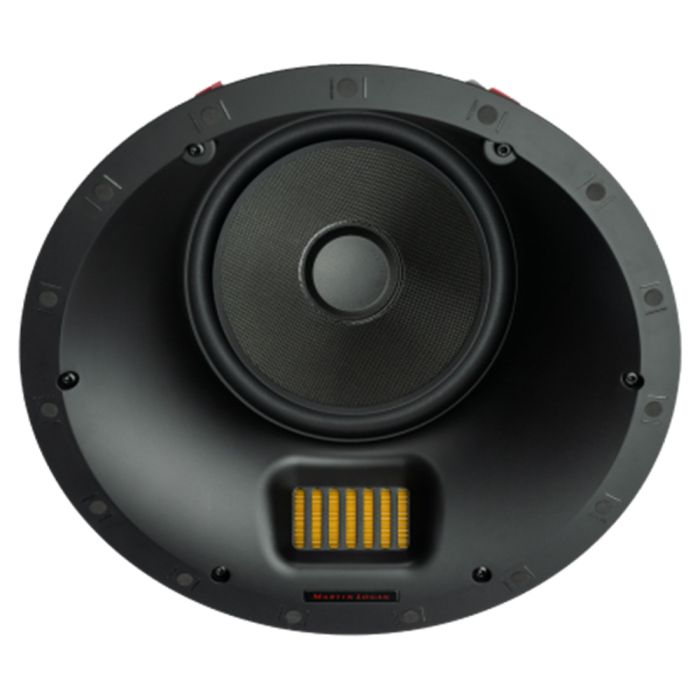

Martin Logan Motion XTC8-HT In Ceiling Speaker (Single)
In stock
Available - Usually ships within 2-3 days
Features
| Is Aimable | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- Frequency Response - 51 - 25,000 Hz ±3dB
- Tweeter Dispersion (horizontal x vertical) - 30 x 80 degrees
- Recommended Amplifier Power - Range 50–300 Watts
- Sensitivity - 91dB @2.83V/ 1 meter
- Impedance - 4 ohms. Compatible with 8 ohms
- High Frequency Driver - FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm
- Crossover Frequency - 2,000 Hz
- Crossover Type - 2 way
- Driver Configuration - 1 x 1.27” x 2.75” FMT, 1 x 8” Woofers
- Woofer Specifications - One 8” (20.32 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.
- Cabinet Material - Black w/ White Paintable Grill
- Connector - Push style
- Components - Custom air core coil inductors, polypropylene film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.
- Max Power Handling - 150 Watts
- Weight - 9.3 lbs. (4.2 kg) each
- Dimensions (overall size) - 12.68” x 7.15” (32.2 x 18.14cm)
- Required Wall Opening (includes tolerance) - 11.5” (29.1cm) diameter
- Projection From Wall Surface - 0.26” (0.65cm)
- Depth Behind Wall Surface - 7.03” (17.84cm)
