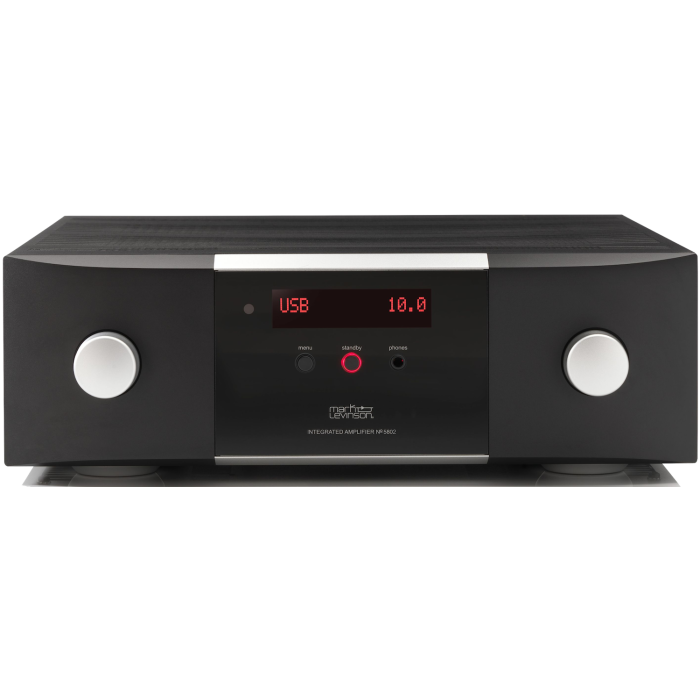

Mark Levinson No 5802 Integrated Amplifier
In stock
Available - Usually ships within 2-3 days
Features
| XLR Inputs | No |
|---|---|
| Brand Color | None |
| Headphones Socket | No |
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
DAC Stage
- Output Voltage: 5.7V RMSat Max Volume
Freq Response:
- 20Hz-20kHz, +0/-0.2dB (192kHz/24 Bit)
- 20Hz-20kHz, +0/-0.05dB (44.1kHz/16 bit)
THD:
<0.0025%, 20Hz-20kHz, at 3V RMS Out (192kHz/24bit)
<0.003%, 20Hz-20kHz, at 3V RMS Out (44.1kHz/16bit)
<0.006%, 90kHz, at 3V RMS Out (192kHz/24bit)
Signal to Noise Ratio:
>100dB (20Hz-20kHz, 192kHz/24 bit, A weighted)
>98dB (20Hz-20kHz, 192kHz/24 Bit, wideband, unweighted)
>94dB (20Hz-20kHz, 44.1kHz/16 bit, A weighted)
>92dB (20Hz-20kHz, 44.1kHz/16 Bit, wideband, unweighted)
Sample Rates/Bit Depth:
- PCM: 32-352.8, 384kHz; up to 32 bits
- DSD Native or DoP; single, double, or quad speed (2.8, 5.6, or 11.2MHz)
Digital Processing: Full MQA decoding;
- PCM: Seven user-selectable digital filter settings
- User selectable up-sampling to 352.8/384kHz
- DSD: Four user-selectable digital filter settings.
Headphone Output
- <0.04%, 20Hz and 1kHz, 2V RMS output 30Ohms Load
- <0.10Hz, 2V RMS output, 30Ohms load
- Output Overload: >3.3V RMS, 30 Ohms Load
- SNR >91dB (20Hz-20kHz, A weighted, referred to 2V RMS out),
- SNR >87dB (20Hz-20kHz, wideband, unweighted, referred to 2V RMS)
- SNR Output Impedance: <2.5 Ohms, 20Hz-20kHz
Amplifier Section
- Freq Response: <2Hz-20kHz, +0/-0.2dB; <2Hz-100kHz, +0/-3dB
- SNR: >103dB (20Hz-kHz, Awtd); >100dB (20Hz-kHz, wideband, unwtd)
- THD+ N: <0.035% at 1kHz, 125W, 8 Ohms; <0.18% at 20kHz, 125W, 8Ohms
- Output Power: 125W RMS per Channel at 8 Ohms, 20Hz to 20kHz
- Output Impedance: <0.098 Ohms, 20Hz-10kHz; <0.11 Ohms at 20kHz
- Damping Factor: >82, 20Hz-10kHz; >72 at 20kHz
General
- Digital: 2 optical Toslink, 1 asynchronous UBS-B, 1 coaxial S/PDIF RCA,
- Output: 1 pair RCA, 2 pairs speaker outs (high current, banana sockets)
Accept spade lugs with ¼”/6.3mm spacing up to 1/8”3mm thick)
- Control: RS-232 Port (DB9), IR in, 12V DC trigger in/out, Ethernet
- Mains Voltage: 100VAC, 115VAC, or 230VAC
- Power Consumption: Max 500W, Green mode <0.4W, Power Save 7W
- Dimensions (HDW): 154 x 507 x 438mm
- Weight: 27.6kg
Description
Mark Levinson No 5802 Integrated Amplifier Integrated Amplifier is designed for all your digital music sources, it provides a pure and vibrant audio performance and is made with top grade components so it can power every speaker. The 5802 is great for any hifi system and will give you an unforgettable experience.
Why Mark Levinson 5802?
The Mark Levinson No. 5802 is an integrated amplifier that combines a high-grade preamp, a class-A/B power amp and a custom built Precision Link II DAC in one sleek and robust unit. It sits below the bigger 5805 integrated amp as it’s designed only for digital audio but produces a performance that is dynamic and pure, which allows you to feel the very soul of the artist’s performance.
5802 vs. 5805
The No 5802 differs from the No 5805 as it doesn’t have any analogue inputs or a phono stage for connection to a turntable. If you need these inputs then the 5805 is for you but if not, the 5802 will provide everything you need to achieve a great hi fi system.
Precision Link II DAC
To get the most out of your digital music sources, the no 5802 has a built in custom built Precision Link II digital to analogue converter, which delivers audio with pristine detail and with minimal noise.
Extremely Low Distortion Level
The no 5802 amp uses class-A/B amplification and has a highly reliable power supply (500+ VA toroidal transformer) that is designed to deliver the correct amount of power to any set of loudspeakers and produce an audio performance that is rich, detailed, powerful and, more importantly, distortion-free!
Bluetooth AptX
You can connect your wireless devices to the No 5802 amp with the use of Bluetooth AptX, which is a highly reliable and an incredibly good quality verison of Bluetooth. Bluetooth AptX allows you to listen to music with the best wireless quality so you can enjoy all the music, podcasts and radio you need from your favourite streaming services.
High End Headphone Listening
The No 5802 amp has a built in class A analogue stage that powers your headphones so that you can listen to your music privately and at excellent quality.
