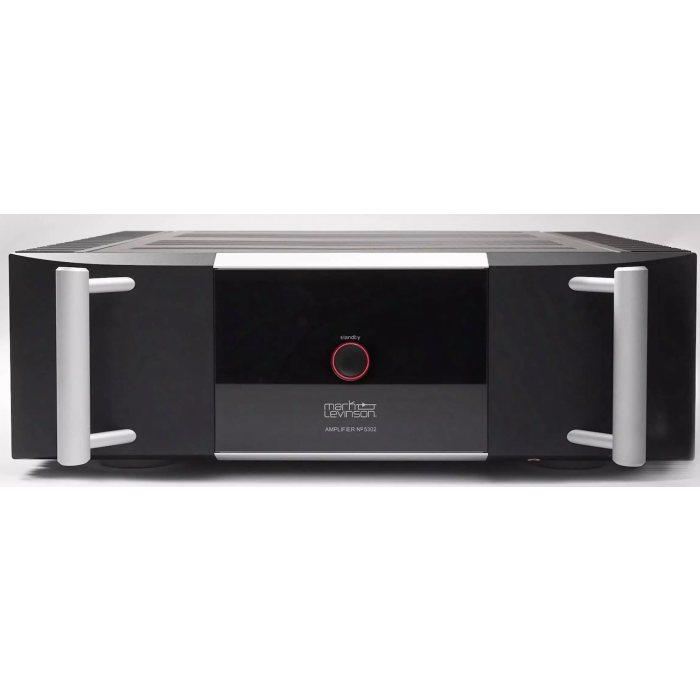

Mark Levinson No 5302 Power Amplifier
In stock
Available - Usually ships within 2-3 days
Features
| XLR Inputs | No |
|---|---|
| Remote Control | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
Stereo Mode:
- Output Power: 135W/Channel, 8Ohms Load, 20Hz-20kHz, at<0.35% THD
both channels driven 270W/Channel, 4Ohms load, 20Hz-20kHz
- Gain: 25.8dB
- Input Sensitivity: 145mV RMS input for 2.83V RMS output
- THD: <0.04% at 1kHz, 135W, 8Ohms Load, <0.35% at 20Hz, 135W, 8Ohms Load
- Signal to Noise Ratio: >102dB, 20Hz-20kHz, Wideband, unweighted, reffered to 135W/8Ohms
Bridged Monaural Mode:
- Output Power: 275W/Channel, 8Ohms Load, 20Hz-20kHz, at<0.3% THD, 550W, 4Ohms Load, 20Hz-20kHz
- Gain: 31.8dB
- Input Sensitivity: 73mV RMS input for 2.83V RMS output
- THD: <0.04% at 1kHz, 275W, 8Ohms Load, <0.3% at 20Hz, 275W, 8Ohms Load
- Signal to Noise Ratio: >105dB, 20Hz-20kHz, wideband, unweighted, reffered to 275W/8Ohms
General:
- Freq Response: 2-Hz-20kHz, +0/-0.35dB, <2Hz-80kHz, +0/-3dB
- Input Impedance: Balanced (XLR): 100kOhms, Unbal/Single-ended (RCA): 50kOhms
- Input Connectors: 1 Pair Bal Line Level Inputs (XLR), 1 Pair single-ended line level inputs (RCA)
- Output Connectors: 2 Pairs high Current Multi-Way Binding Posts
- Control: RS-232 (DP-9), Ethernet, USB-A, baseband IR, Programmable 12V DC Trigger in/out
- Power Consumption: Max 1000W, Normal Standby 35W, Green Standby <0.4W
Dimensions
- Height: 145mm
- Width: 457mm
- Depth: 527mm
- Weight: 31.7kg
Description
Mark Levinson No 5302 Power Amplifier is designed to deliver an incredible music experience with great dynamics, deep low ends and low distortion. The 5302 power amp is flexible, powerful and can also be used as a monoblok amp.
Why Mark Levinson 5302?
The Mark Levinson No 5302 Power Amp is extremely versatile, powerful and is a great addition to any hi fi system. It has a dual mono design, that can be bridged and doubled up as monoblok amplifier, and delivers an abundance of power any loudspeaker.
Flawless and Powerful
With the use of an efficient and stable 1100VA toroidal power supply, the 5302 receives the right amount of power at all times so that you can immerse yourself with an engaging and powerful music experience.
Power any Speaker
No matter how demanding your loudspeakers may be, the 5302 power amp has you covered with the ability to deliver pristine power instantly, so you can feel the deep bass and hear every note.
Bridgeable Dual Mono Amp
The No 5302 is a bridgeable dual-mono amp, which means it can either power two loudspeakers or be configured to just power one, leaving you the option to add a second so that you can gain complete control over your sound system.
Iconic Design
Mark Levinson No 5302 power amp follows the rest of the 5000 range with it’s elegant looks, bold geometry and minimalist aesthetic, perfect if you want a matching hi-fi system. The front of the amp is layered with anodized black, solid aluminum panels that blend seamlessly into the sleek glass display, with a large standby button that completes the look.
