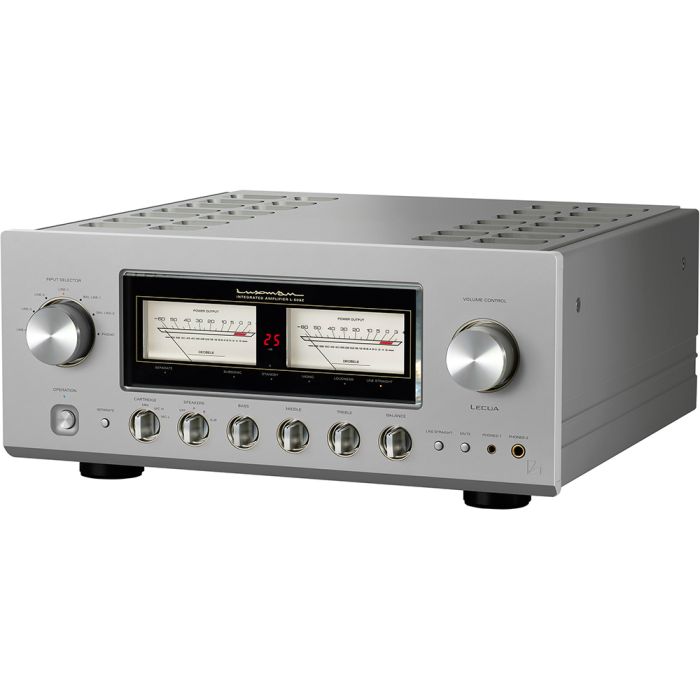

Luxman L-509Z Integrated Amplifier
In stock
Available - Usually ships within 2-3 days
Features
| XLR Inputs | No |
|---|---|
| Brand Color | None |
| Headphones Socket | No |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
- Rated output - 120W + 120W (8Ω), 220W + 220W (4Ω)
- Input sensitivity/input impedance - PHONO (MM): 2.5mV/47kΩ, PHONO (MC-H): 0.3mV/100Ω, PHONO (MC-L): 0.1mV/40Ω, LINE: 180mV/47kΩ, BAL.LINE: 180mV/79kΩ, MAIN IN: 1.1V/47kΩ
- Output voltage - PRE OUT: 1V
- Frequency response - PHONO: 20Hz to 20kHz (±0.5dB), LINE: 20Hz to 100kHz (within -3dB)
- Total harmonic distortion - 0.007% or less (8Ω, 1kHz), 0.03% or less (8Ω, 20Hz to 20kHz)
- S/N ratio (IHF-A) - PHONO (MM): 87dB or more, PHONO (MC-H): 70dB or more, PHONO (MC-L): 62dB or more, LINE: 106dB or more
- Volume adjustment - LECUA-EX
- Amplification feedback circuit - LIFES 1.0
- Output configuration - Bipolar 4-parallel push-pull
- Damping factor - 330
- Max. amount of tone control - BASS: ±8dB at 100Hz, TREBLE: ±8dB at 760Hz, TREBLE: ±8dB at 10kHz
- Power supply - 230V~(50Hz) / 115V~(60Hz)
- Power consumption - 390W, 150W (under no signal), 0.5W (at standby)
- External dimensions - 440(W) x 193(H) x 463(D) mm, front side knob of 20mm and rear side terminal of 37mm included in depth
- Net weight - 29.4kg (main unit)
- Accessories - Remote control (RA-17A), Power cable
- Speaker terminal, Supported Y-lug terminal dimension - Width of part a: 16mm or less, Width of part b: 7mm or more
Description
The Luxman L-509Z Integrated Amplifier is a celebration of Luxman's 100 year anniversary. Japan's most decorated high-end audio brand has delivered its finest integrated amplifier, the L-509Z couple classic style alongside exceptional build quality and lashings of pure musical power.
Improving upon the previous L-509X model, this latest flagship has been tweaked and improved to deliver the best possible performance - truly the next best thing to Luxman's C-10X pre and M-10X power amplifier combo - and these cost more than double the price combined.
For vinyl listeners, this amplifier is also a beautiful match for the PD-191A turntable, which was released shortly after this model.
On demonstration in our showroom and available for home trial - please contact us to arrange a listen.
