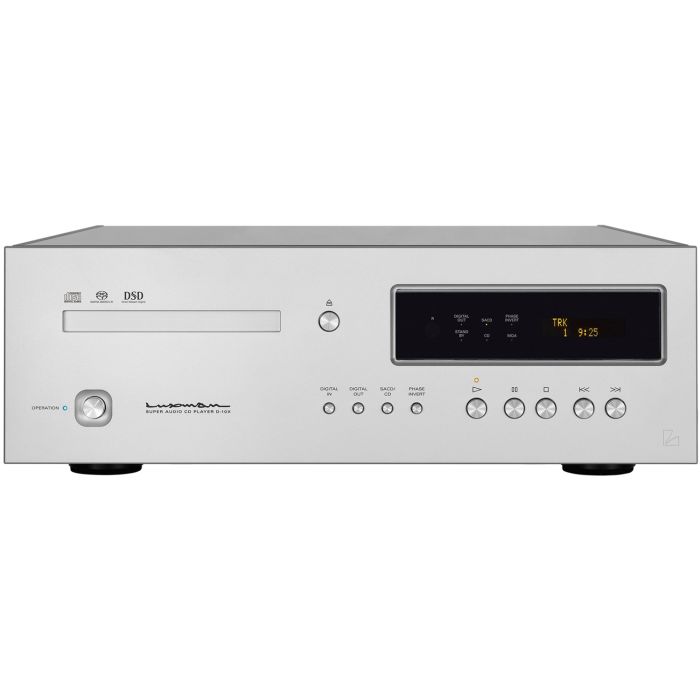

Luxman D-10X CD Player

Luxman D-10X flagship SACD/CD player builds on the acclaimed D-08u, adding further playback capabilities, latest conversion technology, reinforced mechanism and a refined analogue output stage. Equipped with the most advanced mechanical, digital and analogue technology, Luxman D-10X unveils the ultimate soundstage.

Latest LxDTM-i transport

To minimise even the slightest distortions triggered by vibration and resonance, Luxman upgraded the disc drive creating the LxDTM-i (Luxman original Disc Transport Mechanism improved). The drive is enclosed in 8mm thick aluminium sides that extend to the front and rear panels, plus a 5mm thick steel top plate. For added protection, the physical mounting system supports the side frame. Together with improved disc reading mechanism, the result is higher quality playback.

Advanced digital processing

The D-10X marks the debut of the world’s finest D/A converter, the MUS-IC BD34301EKV from ROHM Semiconductor. Used in dual mono configuration, these converters combine top-flight specs with an impressive suite of silicon-level refinements.

MQA is an award-winning British technology that delivers the sound of the original master recording. The player includes MQA technology, which enables you to playback MQA-CDs as well as MQA audio files up to 24-bit transferred via USB, optical and coaxial inputs.

ODNF-u balanced analogue circuit

Years of ODNF amplifier development have resulted in ODNF-u – Only Distortion Negative Feedback (ultimate) – which debuts on the D-10X. This fully balanced configuration maximises error detection accuracy, minimising distortion. You’ll hear greater expressive power with enhanced microdynamics across the audio spectrum, especially in the higher frequencies.

The stage also achieves a natural and smooth waveform without the conventional output filters. The secret is the tailored, gradual 1st order filter × 3 band processing inside the circuitry. To protect the analog signal from changes in ground impedance and magnetic fields, the D-10X incorporates a composite, loop-less chassis. Well shielded, the chassis is also effective at blocking digital noise.

Substantial power supplies

To provide highly abundant, highly stable power, Luxman increased the power transformer capacity by 27% compared to their previous flagship. They also provide independent regulators for each circuit along with formidable filter capacitors for the ultimate stability.

Unique Luxman PCB layout

Dielectric effects, unwanted resistance and stray capacitance in printed circuit board patterns can all degrade the audio signal. Luxman suppresses these effects with generously thick 100μm copper foil, gold-plated connections and peel coat removal of the solder mask. The gently curved wiring pattern delivers smooth signal flow.

Premium selected components

No detail is too small for Luxman engineers to consider and refine. The RCA output jacks apply gold plating over an alloy that combines the conductivity of copper with the durability of brass. Rugged Neutrik XLR terminals are used for the balanced outputs. In addition, density gradient cast iron insulator feet provide firm support, while diffusing shelf-borne resonance.

Versatile digital inputs

To complement advanced audio systems, Luxman provides one coaxial and two optical inputs, plus a USB input that supports both DSD and PCM. In addition to isochronous transfer, the USB supports four modes of Bulk Pet transfer that optimise the processor load between the source and the D-10X for improved transparency.

4X zoom display

You select your listening position carefully. The 4X zoom function makes the fluorescent display easy to read from your seat. When playing MQA-CDs and files, a three-colour indicator confirms decode status: Studio (blue), Authentic (green) and Renderer (magenta).

Ergonomic IR remote control

The supplied aluminium remote control has the same blasted white finish as the player's front panel. Without leaving the ideal listening position, you can use the numeric keypad, transport controls and display dimmer.

LUXMAN’s original playback software

For audio playback from a PC, the Luxman Audio Player application is recommended. This software supports FLAC, ALAC, WAV, AIFF, MP3, DSF and DSDIFF files.
