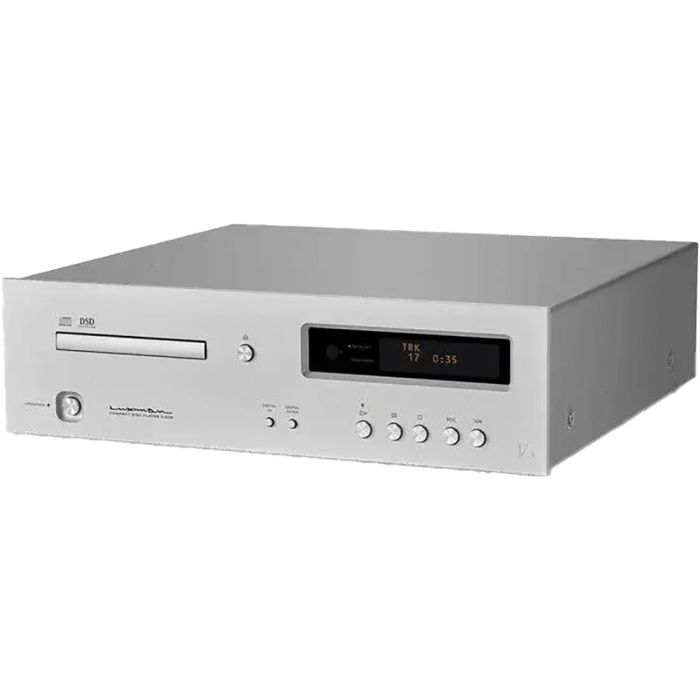

Luxman D-03R CD Player
In stock
Available - Usually ships within 2-3 days
Features
| Coaxial Digital Output | No |
|---|---|
| Optical Digital Output | No |
| Includes Pre Amp | No |
| Brand Color | None |
| Includes DAC Digital Inputs | No |
| USB Digital Output | No |
| AES/EBU Digital Output | No |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Remote Control | No |
| Upsampling Feature | No |
| Product Type | Other |
Tech Specs
Digital input
- USB - 1 system
- COAX - 1 system
- OPT - 1 system
- Digital output
Supported sampling frequencies
- USB input (PCM) - 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz (16, 24, 32bit)
- USB input (DSD) - 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (1bit)
- COAX/OPT input - 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (16, 20, 24bit), 2.8MHz (DoP)
Analogue output
- Unbalanced - 1 system
- Balanced - 1 system
- Analogue output voltage/impedance - 2.4 V / 300 Ω (unbalanced), 600 Ω (balanced)
- Frequency response - CD 5Hz–20kHz (+0, -1.0dB), USB 5Hz–47kHz (+0, -3.0dB)
- Total harmonic distortion - CD 0.002%, USB 0.001%
- S/N ratio (IHF-A) - CD 110dB, USB 118dB
- Power consumption - 14 W
- Accessories - Remote control (RD-28), power cable (JPA-10000i)
- Supported discs - CD, MQA-CD
Dimensions
- Width - 440 mm
- Height - 133 mm
- Depth - 410 mm
- Weight - 13.2 kg
Description
The Luxman D-03R CD Player, announced for 2025, is the successor to the acclaimed X model, bringing cutting-edge digital playback technology into a refined and durable chassis. Designed for both audiophiles and music enthusiasts, the D-03R supports high-resolution signals up to PCM 32-bit/384 kHz and DSD 22.5 MHz, ensuring exceptional clarity and dynamic range.
MQA decoding, including MQA-CD, is fully integrated, allowing listeners to enjoy master-quality recordings directly from disc. The robust Trinity transport mechanism, featuring a 3.2 mm steel base with an offset center of gravity, provides remarkable mechanical stability while minimizing vibrations. This engineering precision ensures optimal signal retrieval and faithful playback, setting a new standard in CD performance for both traditional and high-resolution digital media.
Advanced Conversion Technology and Superior Components
At the core of the Luxman D-03R CD Player is the BD34352EKV digital-to-analog converter from ROHM, configured in a full dual mono layout for exceptional channel separation and accuracy. This DAC technology forms the heart of a powerful digital processing environment that supports high-resolution formats through both USB and digital inputs.
Whether connecting a PC, network transport, or other digital source, the player delivers pristine performance with PCM up to 384 kHz/32-bit and DSD up to 22.5 MHz. For coaxial and optical connections, it supports PCM up to 192 kHz/24-bit. Every playback path is designed for uncompromised transparency and musicality, complemented by a high-capacity 6,600 µF power supply unit and the inclusion of Luxman’s premium JPA-100000i power cable for optimal energy delivery.
Refined Design with Intuitive Operation
The Luxman D-03R CD Player reflects the brand’s heritage of combining engineering excellence with elegant design. Its traditional left-side disc mechanism layout ensures optimal signal flow, while the chassis is enclosed in a specialist metal structure that effectively blocks vibrations and enhances sound accuracy. On the front panel, a high-clarity OLED display provides playback information with a four-stage dimmer for optimal visibility in any environment.
The unit includes an aluminum remote control for convenient operation, while the tactile design of the front interface ensures precision and ease of use. Every element, from the thoughtful layout to vibration control, reinforces the focus on achieving the highest level of musical fidelity in a beautifully understated form.
Connectivity, Performance, and Specifications
The Luxman D-03R CD Player is as versatile as it is precise, offering a wide range of digital and analog outputs. Balanced and unbalanced analog outputs ensure compatibility with high-end audio systems, while coaxial and optical inputs and outputs provide flexibility for external components.
Performance specifications highlight its excellence: frequency response reaches 5 Hz–20 kHz for CD and up to 47 kHz for USB input, total harmonic distortion measures as low as 0.001%, and the signal-to-noise ratio peaks at 118 dB with USB sources. Measuring 440 × 133 × 410 mm and weighing 13.2 kg, the D-03R combines solid construction with refined proportions.
Bundled accessories include the RD-28 aluminum remote control and a premium Luxman power cable, completing a system that represents a pinnacle of modern CD playback.
