Luxman Centennial Black Edition Hi-Fi System
In stock
Available - Usually ships within 2-3 days
Features
| Includes USB Input | No |
|---|---|
| Bluetooth Connectivity | No |
| HDMI | No |
| DAB | No |
| Brand Color | None |
| FM | No |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
Luxman L-509Z Integrated Amplifier
- Rated output - 120W + 120W (8Ω), 220W + 220W (4Ω)
- Input sensitivity/input impedance - PHONO (MM): 2.5mV/47kΩ, PHONO (MC-H): 0.3mV/100Ω, PHONO (MC-L): 0.1mV/40Ω, LINE: 180mV/47kΩ, BAL.LINE: 180mV/79kΩ, MAIN IN: 1.1V/47kΩ
- Output voltage - PRE OUT: 1V
- Frequency response - PHONO: 20Hz to 20kHz (±0.5dB), LINE: 20Hz to 100kHz (within -3dB)
- Total harmonic distortion - 0.007% or less (8Ω, 1kHz), 0.03% or less (8Ω, 20Hz to 20kHz)
- S/N ratio (IHF-A) - PHONO (MM): 87dB or more, PHONO (MC-H): 70dB or more, PHONO (MC-L): 62dB or more, LINE: 106dB or more
- Volume adjustment - LECUA-EX
- Amplification feedback circuit - LIFES 1.0
- Output configuration - Bipolar 4-parallel push-pull
- Damping factor - 330
- Max. amount of tone control - BASS: ±8dB at 100Hz, TREBLE: ±8dB at 760Hz, TREBLE: ±8dB at 10kHz
- Power supply - 230V~(50Hz) / 115V~(60Hz)
- Power consumption - 390W, 150W (under no signal), 0.5W (at standby)
- External dimensions - 440(W) x 193(H) x 463(D) mm, front side knob of 20mm and rear side terminal of 37mm included in depth
- Net weight - 29.4kg (main unit)
- Accessories - Remote control (RA-17A), Power cable
- Speaker terminal, Supported Y-lug terminal dimension - Width of part a: 16mm or less, Width of part b: 7mm or more
Luxman D-07X CD Player
- Supported Disc: 2-channel SACD, CD, MQA-CD
- Supported sampling frequency:
USB input (PCM): 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz (16, 24, 32bit)
- USB input (DSD): 2.8MHz, 5.6MHz, 11.2 MHz, 22.4MHz (1bit)
- COAX/OPT input: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (16, 20, 24bit)
- Analog output voltage/impedance: Unbalanced 2.4V / 300Ω, Balanced 2.4V / 600Ω 2.3V for SACD/DSD
- Frequency characteristic: CD 5Hz – 20kHz (+0, -1.0dB), SACD 5Hz – 38kHz (+0, -3.0dB), USB 5Hz – 47kHz (+0, -3.0dB)
- Total harmonic distortion: CD 0.0016%, SACD 0.0007%, USB 0.001%
- S/N ratio (IHF-A): CD 122dB, SACD 125dB, USB 122dB
-- D/A converter: ROHM BD34301EKV (monaural mode) x 2
- Power-supply voltage: AC100V (50/60Hz)
- Power consumption 33W (according to the Electrical Appliance and Material Safety Law), 1W (during standby)
- External dimensions: 440 (width) x 132 (height) x 410 (depth) mm, Depth includes front knob 2mm and rear terminal 8mm
- Weight: 17.0 kg (body), 23.8 kg (standard packaging)
Luxman NT-07 Network Transport
- Digital input - Network : 1000 Base-T (gigabit · ethernet)
- HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
- Digital output - USB (USB2.0), OPT, COAX
- HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
- Storage connection - USB x 2 terminals (USB2.0, single partition, FAT32, exFAT, NTFS)
- Supported sampling frequencies - USB : PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
- DSD : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit)
- COAX / OPT / HDMI (ARC) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 24-bit)
- Corresponding format formats - WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF)
- Streaming protocols - UPnP (OpenHome), TIDAL Connect, Spotify Connect, Roon Ready (soon to be available)
- Power supply - 230 V～(50 Hz) / 115 V～ (60 Hz)
- Power consumption - 27 W (HDMI in/output when connected to USB storage) - 5.9 W (HDMI in/output when USB storage is disconnected)
- Dimensions - 440(W) x 92(H) x 398(D) mm
- front side display of 3 mm and rear side terminal of 13 mm included in depth
- Net weight - 10.3 kg (main unit)
- Accessories - Remote control (RC-30), Power cable
Luxman PD-151 MKII Turntable
Turntable Platter
- Drive system: Belt drive system
- Motor: Brushless DC motor with PID control
- Material: Machined aluminum, Surface finish: Diamond cutMaterial
- Revolution: 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable)
- Wow and flutter: 0.04% or less (W.R.M.S.)
- Revolution adjustment range: ±6% (each rotation speed adjustable independently)
- Weight 4.0kg (Platter)
Tonearm section
- Type: Static balanced, S shaped, universal type
- Bearing: Concealed knife edge
- Effective length: 222.5mm
- Overhang: 18mm
- Tracking error angle: ±3° or less
- Adjustable height range: 15mm
- Applicable cartridge weight 4 to 10g (including headshell 17 to 23g)
- Anti-skating: 0 to 4g
Main unit
- Power source: 230V～50Hz / 115V～60Hz
- Power consumption: 6W
- Net weight: 15.8kg (main unit), 17.2kg (with dust cover)
- Accessories: Platter, Headshell, Rubber mat, Rubber belt, Platter mount handle (2 pieces), EP adaptor, Counterweight, Arm adjustment hex wrench set (2 types), Flathead screwdriver for rotation speed adjustment, phono cable (DIN→RCA : already installed in theunit), Power cable
- Dimensions: 465(W) × 133(to the upper surface of the platter) (H)×393(D) mm
Description
To mark its extraordinary 100th anniversary, Japanese audio icon Luxman unveils the Centennial Black Edition System—a collection that pays tribute to a century of innovation, design, and dedication to high-fidelity sound. Joining the ranks of other heritage brands like Bang & Olufsen and Philips, Luxman celebrates with a trio of new products and a special four-piece system dressed in an elegant all-black finish.
The centerpiece of this celebration is the P-100 Centennial headphone amplifier, a marvel of modern engineering and Luxman’s most refined headphone amp to date. Designed to drive a wide range of headphones with authority and precision, the P-100 introduces the next evolution of the brand’s audio philosophy, setting a new benchmark for headphone amplification.
P-100 Centennial Headphone Amplifier: Innovation in Every Detail
The P-100 Centennial headphone amplifier is a tour de force in design and performance, equipped with a fully balanced circuit architecture supported by four discrete amplifiers. At its core lies the new LIFES (Luxman Integrated Feedback Engine System) technology—an advanced refinement of the company’s classic ODNF feedback system.
This updated design incorporates high-quality components and a thoroughly reimagined signal path that significantly reduces distortion and enhances clarity. With a dramatically improved signal-to-noise ratio, the P-100 delivers quieter, more transparent sound reproduction. This ensures audiophiles enjoy an immersive, clean listening experience that reveals the full depth and nuance of their favorite recordings.
Flexibility and Protection with Audiophile Precision
Luxman designed the P-100 to suit virtually every headphone and listening style. In addition to a standard 6.3mm output, the amplifier offers balanced 4-pin XLR and 4.4mm outputs, along with a 3-pin XLR configuration for bridge-tied load (BTL) setups when two units are used in tandem.
Control and customization are paramount, with an improved volume attenuator, left/right balance control, and sensitivity settings for low, medium, or high impedance headphones. A six-step volume limiter also helps protect your headphones and hearing without compromising sound quality. Whether you're fine-tuning performance or simply enjoying the music, the P-100 ensures complete control with exceptional refinement.
The Complete Centennial Black Edition System: A Statement in Form and Function

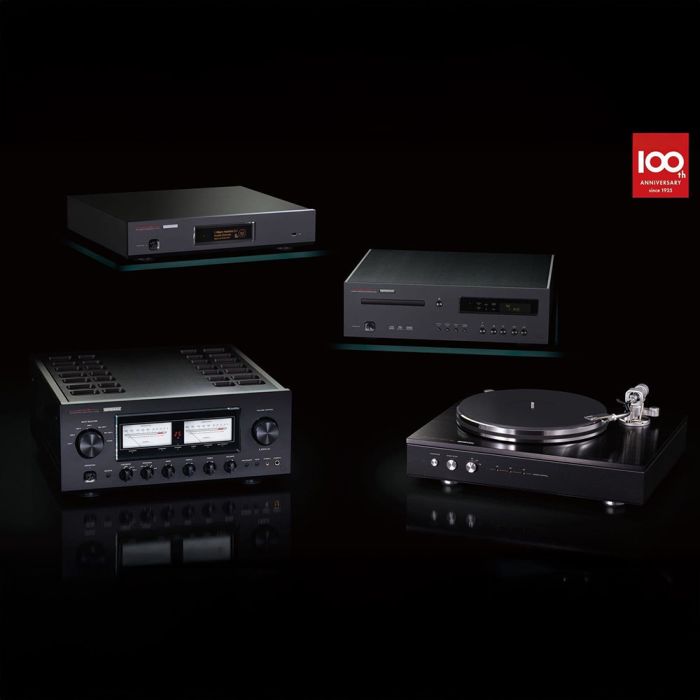

Completing the Luxman Centennial Black Edition System are three of the company’s most respected components, unified in a stunning limited-edition black finish. The set includes the acclaimed L-509Z integrated amplifier, the D-07X CD/SACD player, the NT-07 network transport, and the PD-151 MkII turntable.
These models, already celebrated for their performance and build quality, gain an even more distinctive presence in their exclusive Centennial Black attire. Limited to just 100 complete sets worldwide, this system is available only as a unified four-piece package, reinforcing its exclusivity and aesthetic harmony. For discerning enthusiasts looking to mark a century of audio excellence, this system offers a rare and luxurious opportunity to own a piece of Luxman history.
