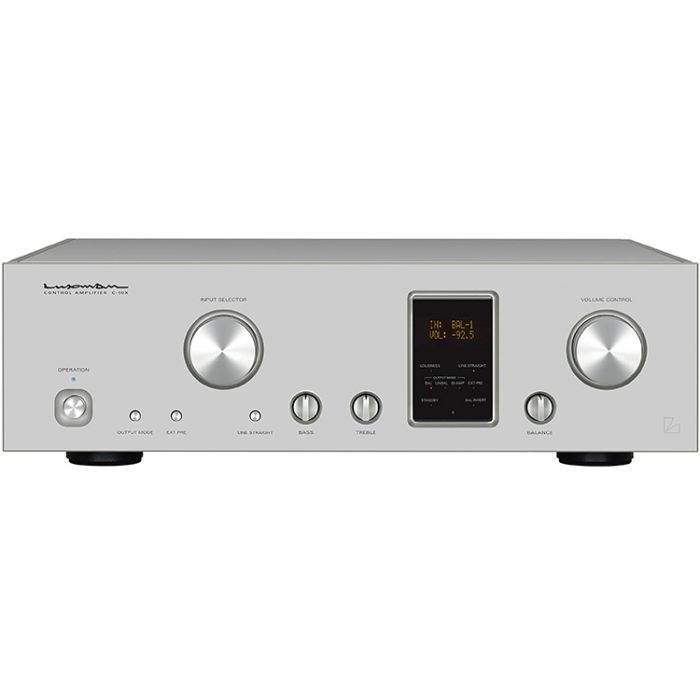

Luxman C-10X Pre Amplifier
In stock
Available - Usually ships within 2-3 days
Features
| Remote Control | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
- Input sensitivity/Input impedance - Unbalanced 180mV/45kΩ - Balanced 180mV/90kΩ
- Output/Input impedance - Unbalanced rating 1V/90Ω, max. 14.1V - Balanced rating 1V/180Ω, max. 28.7V
- Frequency response - 20Hz to 20kHz (+0, within -0.1dB) - 5Hz to 110kHz (+0, within -3.0dB)
- Total harmonic distortion - Unbalanced 0.005% (20Hz to 20kHz) - Balanced 0.003% (20Hz to 20kHz)
- S/N ratio (IHF-A) - Unbalanced 129dB - Balanced 132dB
- Volume control - LECUA-EX
- Amplification feedback circuit - LIFES 1.0
- Max. change amount of tone control - BASS: ±8dB at 100Hz - TREBLE: ±8dB at 10kHz
- Remote control functions - Operation, Dimmer, Input selector Output mode (Unbalanced, Balanced, Bi-amp) Balanced phase switching Channel preset (Balanced phase setting, Input level offset setting, Bi-amp output level setting) External pre-amplifier input Line straight, Loudness, Volume up/down, Mute Zoom display
- Power consumption - 40W, 2.6W (at standby)
- External dimensions - 440(W) x 130(H) x 434(D) mm front side knob of 16mm and rear side terminal of 15mm included in depth
- Net weight - 19.8kg (main unit)
- Accessories - Remote control (RA-20), Power cable
Description
The Flagship Luxman C-10X Pre Amplifier offers a new listening experience. Several innovations include a high-precision electronic volume control along with motor-driven tone controls. There is also a unique feedback system that is designed to eliminate distortion. The unit acts as a control centre with four balanced and unbalanced inputs as well as two outputs. Lastly, only the best quality circuit boards and components are used for the ultimate in sound quality.
Unique feedback system for natural sound
Only Distortion Negative Feedback (ODNF) is used by the Luxman C-10X Pre Amplifier. This system provides the same sound quality as a non feedback amplifier, by just feeding back the distorted part of the sound. The result is overwhelming audio performance.
Electronic volume control
The Luxman C-10X Pre Amplifier comes with a next-generation electronic volume control known as LECUA-EX. Additionally, the fully balanced 3D layout of the circuit boards is designed to provide infinite silence along with instantaneous power and a great sense of realism. The volume control system uses a series of fixed resistors and a rotary encoder, rather than a constantly varying potentiometer. The pulses from the decoder are used to set the volume electronically. This suppresses and imbalances and gives a smooth volume control.
Quality circuit boards
The circuit boards in the Luxman C-10X Pre Amplifier use thick copper traces that are low resistance and have a gold-plated peel-resistant coating. This reduces dielectric effects for better sound quality. Moreover, the traces are not angled which prevents the signal transmission from being degraded by having smooth curves. All of the components and connectors of the Luxman C-10X Pre Amplifier are of the best possible quality. Moreover, the internal wiring is all made of oxygen-free copper.
Versatile controllability
The flagship Luxman C-10X Pre Amplifier also acts as a control centre. The environment of the whole audio system is adjustable. For example, the output mode can be switched between unbalanced, balanced, or bi-amplified configurations. The balance can be very finely adjusted without causing any sound deterioration. Moreover, the input gain has been increased allowing a wider range of inputs to be matched using the input offset function. In other words, the volume level of each input can be matched.
Dimmable fluorescent display
The high visibility fluorescent display on the Luxman C-10X Pre Amplifier is dimmable. Moreover, the display is zoomable. This means that the size of the display of the input and output volume levels can be adjusted for easier viewing from the listening position. The display size is changed using the remote control. Lastly, the status of the inputs and outputs is indicated by LEDs inside the display panel.
Motor-driven tone controls
The Luxman C-10X Pre Amplifier features motor-controlled electronic bass and treble controls. These have a volume-linked loudness function that matches human hearing characteristics. For example, human hearing is less sensitive to frequency extremes at low volumes, as a result, the bass and treble are boosted slightly. The volume control features a high-precision rotary encoder that has high reliability and a weighty quality feel when you rotate the machined aluminium knob. The unit also comes with a fully-featured aluminium remote control.
Highly regulated power supply
To provide a high transient response the power supply in the Luxman C-10X Pre Amplifier has a powerful CI core transformer as well as a large number of top-quality reservoir capacitors. In fact, seven 3,300MFD capacitors provide a massive amount of reserve power. As a result, any voltage dips are eliminated giving excellent regulation.
