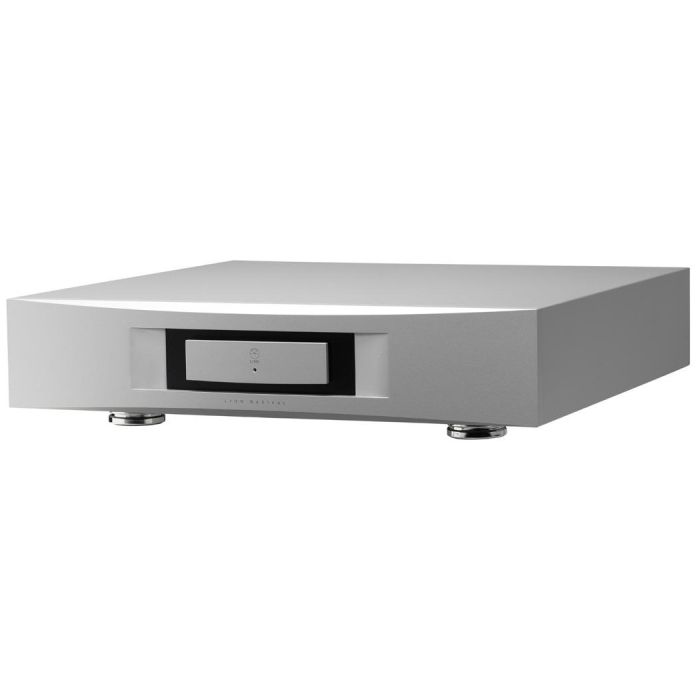

Linn Uphorik Phono Stage
In stock
Features
| Warranty The length of time your product is protected by warranty | 5 Years |
|---|
Tech Specs
Supported Cartridges: Moving Magnet (MM) and Moving Coil (MC)
Clip Indicator Threshold: Occurs at greater than +10 dBv output level
Input Connectors: MM - 1 x L/R pair RCA and 1 x L/R pair XLR,MC - 1 x L/R pair RCA and 1 x L/R pair XLR
MM Gain: +44 dB / +48 dB @ 1 kHz (measured using 20 Ω source into 47 k Ω)
MM Resistance: 51 kΩ, 49 kΩ , 47 kΩ, 45 kΩ
MM Capacitance: 68 pF, 105 pF, 135 pF, 175 pF, 215 pF, 255 pF, 285 pF, 325 pF
MC Gain: +54 dB / +64 dB @ 1 kHz (measured using 20 Ω source into 1 k Ω)
MC Resistance (low): 31 Ω, 37 Ω, 42 Ω, 53 Ω, 70 Ω, 100 Ω, 170 Ω
MC Resistance (high): 580 Ω, 670 Ω, 810 Ω, 1 kΩ
MC Capacitance: 470 pF, 1 nF, 1.5 nF, 2 nF
Line Outputs: 1 x L/R pair RCA, 1 x L/R pair XLR
Line Output: Maximum output voltage 6 V RMS, 8.5 V Peak, +15.6 dBv (measured signal to screen), Output Impedance: 300 Ω
XLR Output: Maximum output voltage 12 V RMS, 17 V Peak, +21.6 dBv (measured signal to screen) Output Impedance: 600 Ω
THD+N: Better than 0.015%: MM -44 dBv input, Better than 0.015%: MC -64 dBv input
Signal to Noise Ratio: Better than 105 dB MM Phono Input, Better than 105 dB MC Input
Channel Balance: Better than ± 0.2 dB
Channel Separation: Below the noise floor MM Input (left to right), Below the noise floor MC Input (left to right), Below the noise floor MM to MC Breakthrough
Frequency Response: 2.5 Hz to 40 kHz (-3 dB) MM Phono Input, 2.5 Hz to 40 kHz (-3 dB) MC Phono Input
RIAA Tracking: ± 0.2 dB MM Input 20 Hz to 20 kHz, ± 0.2 dB MC Input 20 Hz to 20 kHz
Mains Input voltage: 100 - 120 V
(auto-sensing): 220 - 240 V
Mains Supply Frequency: 50 - 60 Hz
Standby Power Consumption: 11 W
Fuse Replacement: 250 V, 200 mAL
Product Dimensions: (H) 91 mm x (W) 380 mm x (D) 380 mm (H) 3.58 inches x (W) 15 inches x (D) 15 inches
Shipping Dimensions: H 220 mm x W 520 mm x D 490 mm, H 8.75 inches x W 20.25 inches x D 19.25 inches
Product Weight: 4.4. kg / 9.8 lb
Shipping Weight: 4.9 kg / 10.8 lb
Description
Use the Linn Uphorik phono stage to fine-tune your turntable system with the Linn Uphorik phono stage and get the most from your vinyl collection. This is a precision moving-coil and moving magnet phono stage, featuring gain and load adjustment for any cartridge.
Uphorik features separate dedicated inputs and circuits for moving magnet (MM) and moving coil (MC) cartridges, and has a full range of adjustment that allows you to easily optimise its settings to any cartridge.
This makes Uphorik the most flexible phono stage available, and means it can adapt to your system should you upgrade your cartridge in the future.
Uphorik is developed from our reference internal phono stage, Urika, sharing its dual mono topology and fully screened differential input.
Uphorik's flexibility also extends to connections, with a choice of balanced or unbalanced outputs, and RCA or XLR inputs, which guarantees Uphorik will always meet your requirements, no matter how the rest of your system evolves.
So... why the Linn Uphorik?
- Separate dedicated inputs and circuits for MM and MC cartridges
- Configurable load and gain switches for every cartridge combination
- Dual mono channel separation with internal shielding
- Balanced and unbalanced connections
- Linn Dynamik Switch Mode Power Supply (SMPS)
