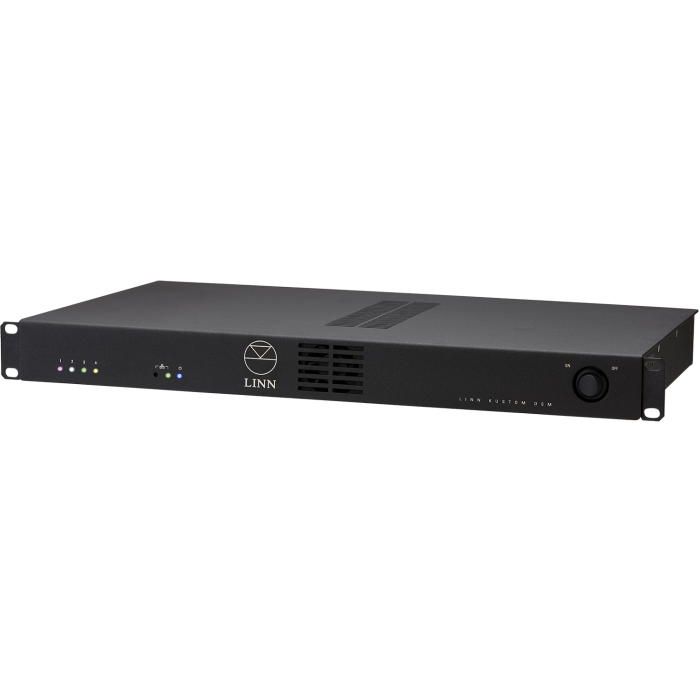

Linn Kustom DSM Network Streamer
In stock
Features
| Digital Optical Input | No |
|---|---|
| Preamp Output | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- Dimensions: Rack Height 1U (fits standard 19” rack)
- Overall Size: (W) 450mm x (H) 44mm x (D) 280 mm (W) 482mm inc. mounting brackets
- (H) 51.5mm inc. feet
- Weight 2.45 kg 2.36 kg
- Audio Formats: FLAC, ALAC, WAV, MP3,
- WMA (except lossless), AIFF, AAC, OGG
- Resolution: Up to 24-bit 192 kHz
- Ethernet: x 1 (1000BASE-T RJ45)
4 Stream/8 Zone Inputs:
- HDMI ARC: x 4
- Toslink: x 4
- SPDIF: x 4
- RCA Phono x 2 pairs
2 Stream/4 Zone Inputs:
- HDMI ARC: x 2
- Toslink: x 2
- SPDIF: x 2
- RCA Phono x 2 pairs
- Supported Input Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4,192
- Outputs: Analogue RCA Phono x 8 pairs x 4 pairs
- Analogue Max Input Voltage: 2.5 V RMS, 3.5 V peak
- Analogue Input Impedance: 10k Ω
- SPDIF Input Voltage: 500mV+/-100mV
- SPIDIF Input Impedance: 75 Ω
- Line Output Voltage: 3 V RMS, 4.3 V peak
- Line Output Impedance: 300 Ω
- DC Offset Voltage: < 5 mV
Description
Linn Kustom DSM Network Streamer is a compact multi-zone network player that offers custom installation to the highest standard. Enjoy quality sound in every room in the house with the most advanced Linn DSM streaming technology.
Compact and Easy to Install
The Kustom DSM is a compact unit that integrates seamlessly into your home audio system. Linn designed the Kustom DSM to be as discreet as possible, with a slim design that fits on a ultra compact 1U rack mount. You can connect as many Kustom DSM products together as you need to enjoy music throughout your whole home. You can also combine the Kustom DSM with any Linn system within the same multi-room system, which enables you to select different levels of Linn performance.
Seamless Integration
Whatever your existing system may be, the Kustom DSM Network streaming system will give you the highest quality sound with the option to add amps and speakers due to it's source only nature. It can be seamlessly integrated in to any smart home with certified drivers for Control 4 and Creston.
App Control
The Linn Kustom DSM provides the home with only the highest audio quality, in every room. Even better, it works along with Kazoo, Linn's own app for controlling consumer devices. This means you can sit back, relax and control your network player from the touch of a button, and without having to leave your ideal listening position.
Version
The Kustom DSM comes in two variants, both in an ultra-slim 1U height chassis. Please choose from the two options as seen below.
- 2 stream/4 zone that sends two audio streams to a maximum of four different zones
- 4 stream/8 zone that sends four audio streams to a maximum of eight different zones
Connection Types
The two Kustom DSM models have various analogue and digital inputs to allow you to connect local sources, such as, HDMI ARC, SPDIF, Toslink and a pair of RCAs. Each zone also has a couple of RCA outputs for connection to downstream components.
Hand-Built Design
Crestron, Control4 and Kazoo
The Kustom DSM can be integrated into any smart-home automation system as it has drivers for Crestron and Control4, it also works with Linn's control app, Kazoo, which is available on your smart phone, tablet or laptop.
