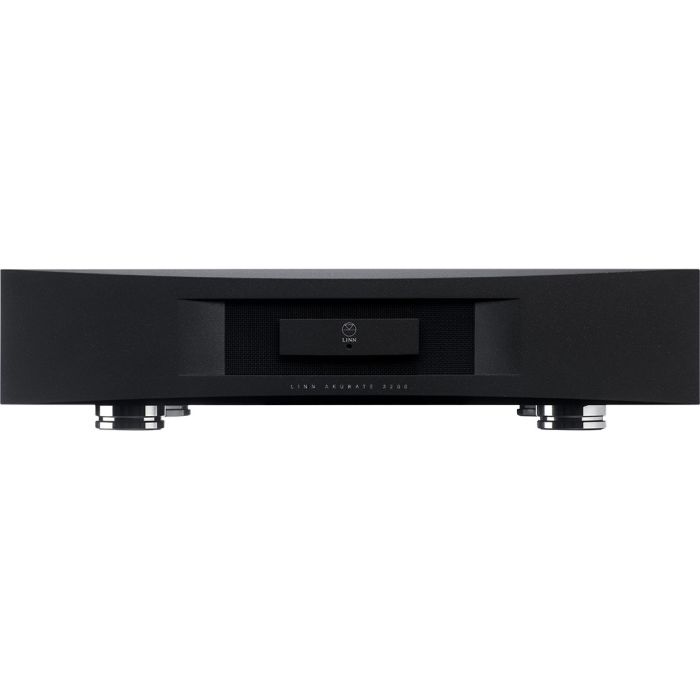

Linn Akurate 4200 Power Amplifier
In stock
Features
| XLR Inputs | No |
|---|---|
| Remote Control | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
Type: Four-channel power amplifier
Mains supply: (auto) 100 – 120 V ac (±10%)
50 – 60 Hz 200 – 240 V ac (±10%) 50 – 60 Hz
Fuse: 250 V, t10 a
In power/sleep mode: (Phono) 20 W
In power/sleep mode: (Balanced) 22 W
Input power maximum: (contin) 300 W
Max out power (p/ch): 200W rms into 4Ω
Max out power (p/ch): 111W rms into 8Ω
Input connectors
- RCA Phono input connectors
- XLR Bal output connectors
- 4mm banana / binding post
Gain settings
Phono:
25.6, 26.6, 27.6, 28.6, 29.6, 30.6, 31.6, 32.6dB
Balanced:
19.6, 20.6, 21.6, 22.6, 23.6, 24.6, 25.6, 26.6dB
Input impedance
(Phono models) 7.5 K Ω input impedance
(Balanced models) 7.8 K Ω input level
For clipping (Phono models) 1.1 V rms
Input level for clipping:
(Balanced models) 2.2 V rms
Harmonic distortion: < 0.005 % load tolerance
Unconditionally stable in all loudspeakers
Frequency response: 1.4 Hz to 41 kHz
Peak output voltage: 41 V f
General
Dimensions: (HWD) 91 x 380 x 380mm
Weight: 8.3 kg
Description
Akurate power amplifiers are responsive and powerful enough to power the most demanding music, delivering loud, complex passage and quiet interludes with equal precision. Featuring Linn's latest technologies, including Chakra amplification and Dynamik power, Akurate amplifiers represent the cutting edge in power amplification.
Akurate power amplifiers incorporate chakra, Linn's patented high-efficiency ultra-linear power amplifier technology, which ensures superior levels of responsiveness, efficiency and reliability whilst producing less heat and lower distortion than traditional designs. Linn’s proprietary Dynamik switch Mode Power supply (sMPs) technology generates stable low-noise power rails for the audio circuitry, with higher mains noise isolation 2 and efficiency than noisy, bulky conventional power supplies.
All Akurate Power Amplifers feature high quality binding posts and are available with either Balanced (XLR) or Unbalanced (RCA Phono) connectors.
Choose from two, three and four-channel models to exactly match your system requirements. Cool-running and virtually silent during normal use, Akurate power amplifiers can be combined to improve performance through multi-amping and upgraded all the way to fully Aktiv configuration, with a dedicated amplification channel powering each individual loudspeaker drive unit. Automatic signal-sensing technology detects the presence of an audio signal and minimises power consumption by reverting to sleep mode when inactive, while fault detection and protection mechanisms help safeguard your system against short circuit or excessive load damage. An exceptional power amplifier in its own right, listen to an Akurate power amplifier as part of a full Akurate system to experience why this is the true performance choice for music lovers.
Features:
- Linn Chakra technology for responsive, powerful and efficient performance
- Powered by Linn Dynamik Switch Mode Power Supply (SMPS)
- Output power 200W per/ch (into 4Ω) - Available in 2, 3 or 4 channel models
- Choice of balanced or unbalanced models (XLR or RCA connectors)
- Internally upgradeable with Aktiv crossover cards for use in a fully Aktiv system
- Energy saving automatic signal-sensing circuitry
- Precision-engineered enclosure offers exceptional acoustic properties
