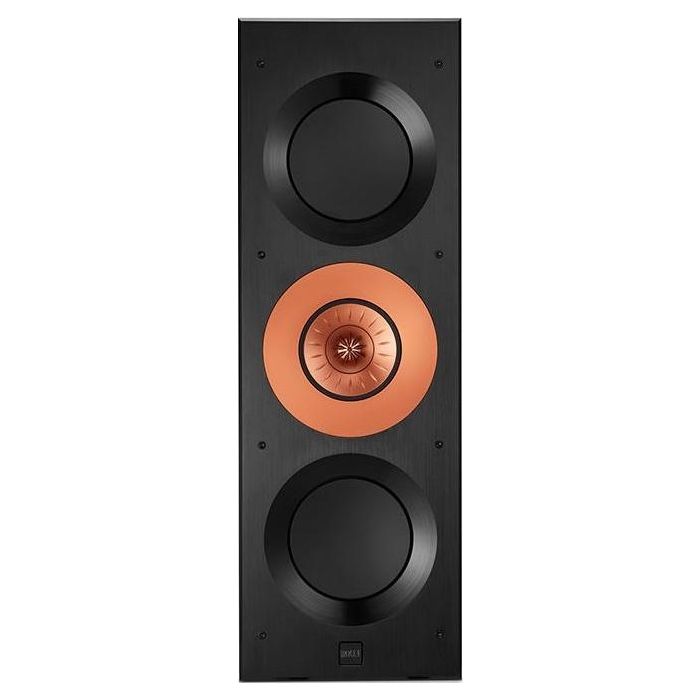

KEF Ci3160REF-THX In Wall Speaker
In stock
Available - Usually ships within 2-3 days
Features
| Is Aimable | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- Nominal Impedance: 4 Ohms
- Sensitivity: 90dB (2.83V/ 1m)
- Freq Resp (±6dB) Open-Back: 40-28k Hz
- Frequency Range (-10DB): 32Hz-30kHz
- Nominal Coverage (Degrees): 115
- Crossover Frequencies: 350Hz, 2.7kHz
- LF Driver: 2 x 160mm (6.5")
- MF Driver: 125mm (5.25") Uni-Q
- HF Driver: 25mm (1 in.)
- Recommended Amp Power: 40 - 350W
- Recommended High-Pass Filter: 40Hz
- Dimensions (HWD): 680 x 230 x 105.7mm
- Cut-Out Dimensions (H X W): 660 x 209mm
- Mounting Thickness (Max/Min): 40mm/6mm
- Mounting Depth From Surface: 99mm
- Optional Rough In Frame: RIF3160L
- Ideal Rear Volume (L): 60
- Minimum Rear Volume (L): 30
- Max SPL (DB): 110
- Certification: THX Ultra
- Safety And Regulatory Compliance: NA
- Net Weight: 13.4Kg (29.54Ibs.)
Description
KEF’s Ci3160REF-THX is an in-wall reference speaker designed for hone-cinema systems. It uses high-grade components and KEF’s signature Uni-Q Driver Array technology for unique KEF sound.
Built for Perfection
The Ci3160REF-THX is built with high-grade components to get the best possible sound for it’s slim compact size; only components with the lowest distortion and the smoothest response make the grade.
It has a frequency range of 32Hz all the way up to 30kHz, which covers more than enough of the frequency spectrum. And a sensitivity of 90dB that ensures a louder sound production, which is ideal for small gatherings and parties.
Uni-Q Array Design
The Ci3160REF-THX uses the KEF’s signature Uni-Q point source driver array technology. A 25mm vented aluminium dome tweeter sits at the exact acoustic centre of a 125mm mid-range driver. Together they become a single source, flooding the listening space evenly with a more cohesive and natural sound.
Built for Brilliant Bass
The Ci3160REF-THX has a 160mm bass driver that is built for an excellent in-wall performance. A massive vented magnet assembly and a large aluminium wire voice coil drive an exceptionally light but strong alloy-cone, this results in exceptional power handling and dynamics, especially considering the flat dimensions of the cabinet.
Easy Installation and Use
This in-wall speaker has a mounting thickness of 40mm that makes it easily mountable on the walls; they can be placed horizontally or vertically. Depending on your system, the Ci3160REF-THX can be used as a two-channel pair or as a part of the home theatre system.
Stylish Looks
The Ci3160REF-THX’s finish is black with an orange mid-range cone in the centre, if this doesn't go with desired aesthetic you can apply a white grille that seamlessly covers it up and fits with other home decors.
