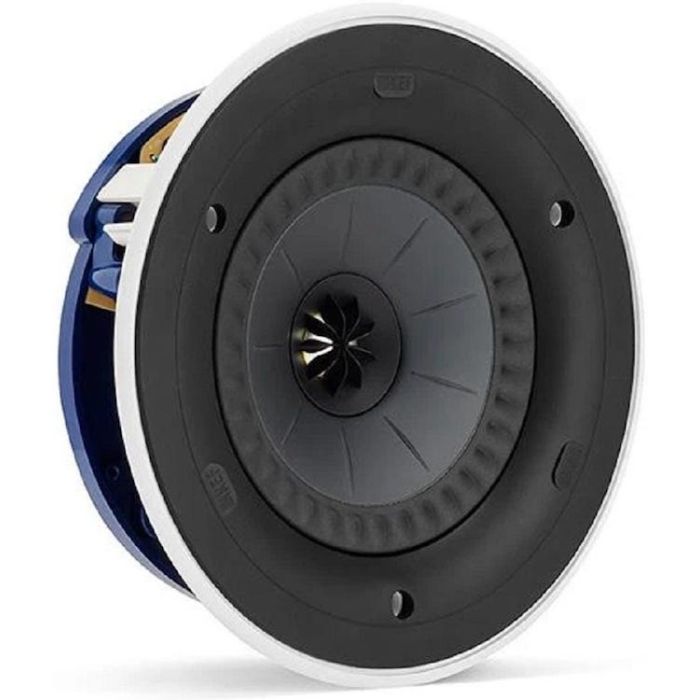

KEF Ci160RR-THX In Wall Speaker
In stock
Available - Usually ships within 2-3 days
Features
| Is Aimable | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- Nominal Impedance: 4 Ohms
- Sensitivity: 90dB (2.83V/ 1m)
- Freq Response (±6dB) Open-Back: 52Hz - 24kHz
- Frequency Range (-10dB): 38Hz-30kHz
- Nominal Coverage (Degrees): 130
- Optional Rough In Frame: RIF160R
- Optional Rear Enclosure: NA
- Ideal Rear Volume(L): 20
- Minimum Rear Volume(L): 10
- Recommended Amplifier Power: 10-190W
- Recommended High-Pass Filter (Hz): 38Hz
- External Diameter Ø: 234.6mm (9.24in.)
- External Depth :115mm (4.53in)
- Cut-Out Dimensions (H X W): Diameter Ø: 196mm
- Max Spl (dB): 105
- Crossover Frequence: 2.1kHz
- Driver Unit: LF: 165mm (6.5in.) Uni-Q / HF: 25mm (1in.)
- Net Weight: 2.94kg (6.48Ibs.)
- Certification: THX ULTRA
- Safety And Regulatory Compliance: IP64
Mounting Thickness
- Ceiling Thickness (Maximum): 37mm (1.460in.)
- Ceiling Thickness (Minimum): 4mm (0.160in.)
- Mounting Depth From Surface: 110mm (4.33in.)
Description
KEF Ci160RR THX in-ceiling speaker is designed for home cinema systems and the flagship in-ceiling speaker in the Ci-R series. It’s easy to install, designed to be discreet and uses KEF’s signature Uni-Q technology.
KEF Uni-Q Design
The Ci160-RR THX in-ceiling speaker has a 6.5” diameter designed with KEF’s Uni-Q technology. This involves positioning the treble unit within the throat of the woofer, ultimately creating a single point source for sound across the frequency spectrum. The end result of this is a broader, more cohesive sound.
Tangerine Wave-Guide
The Ci160-RR has improved treble dispersion by using KEF’s "tangerine" wave-guide technology. This is basically a radial channel phase plug that creates a slight compression loading effect resulting in slightly higher output gain without the need for additional power. This results in more efficient high-end performance with greater dispersion and better treble integration with the mid-range.
Quick and easy to install
The Ci160RR THX is easily installable, with special skills needed, a main characteristic found in all of the KEF Ci-R series. It’s 160mm diameter cut out is the same as any 160mm KEF speaker for ease of installation and component selection. The greyish white speaker covering allows for a discreet look.
KEF’s Matched Sound
All the KEF Ci-Series speakers have been sonically matched so that the tonal characteristics of the speakers don’t change if you have multiple KEF speakers in your system. This provides tonal balance, accuracy and neutrality of the sound throughout your room.
