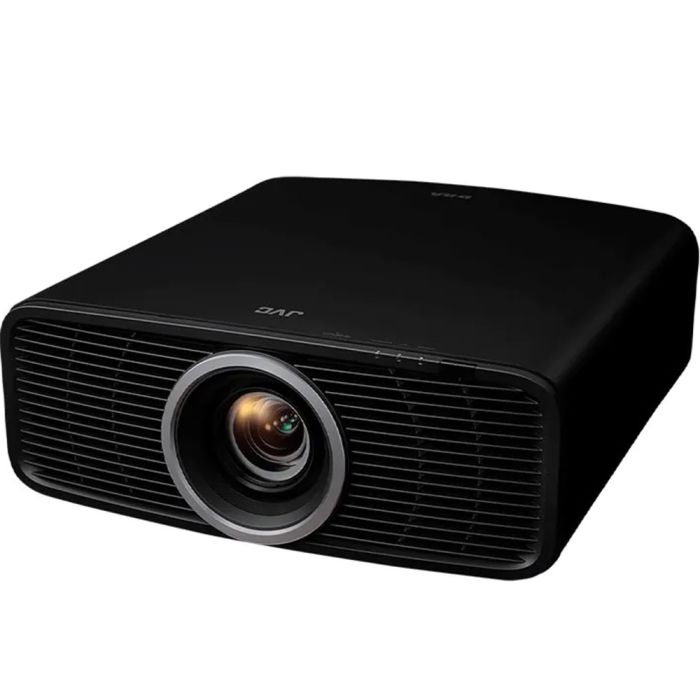

JVC DLA-NZ700 4K Projector
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
Device
- D-ILA Technology - Yes
- Chip Type - 3rd Generation 0.69-inch 4K D-ILA device
- Native Resolution - 4096 x 2160
- Number Of Chips - 3
- Display Resolution - 4096 x 2160
Light Source
- Laser - Yes
- Type - BLU-Escent Laser Diode
- Life Time (Standard Mode) - 20000 hours
- Brightness - 2300 lm
- Dynamic Contrast - ∞ : 1
- Native Contrast - 80000 : 1
- Dynamic Light Power control - Yes
- Modes - Low,High,Balance,Off
- Manual Aperture - Yes
- Range - -15 (stops down) to 0 (opens up)
- DCI-P3 Colour Gamut - Yes
- 100% REC 709 - Yes
- Colour Bit Depth - 12 bit
- ISFccc Certification - Yes
HDR
- HDR10 - Yes
- HDR10+ - Yes
- Frame Adapt HDR - Yes
- Theatre Optimiser - Yes
- HLG - Yes
- Mastering Info Display - Yes
- Info data - MaxCLL and MaxFALL mastering data
- Deep Black Tone Control - Yes
Lens
- Zoom - 1.6 x
- Throw Ratio - 1.34 - 2.14 (16:9)
- 1.26 - 2.01 (17.9)
- Diameter - 80 mm
- Material - All-glass
- Build - 15-element, 11-group
- Lens Shift - Yes
- Range Horizontal - ± 28 %
- Range Vertical - ± 70 %
- Motorised Zoom - Yes
- Motorised Shift - Yes
- Motorised Focus - Yes
- Projection Display size (diagonal) - 60 - 200 inch
- Memory Function - Yes
- Number of user presets - 5
- Lens Cover - Yes
HDMI
- HDMI - Yes
- Number of Inputs - 2
- Data Rate - 32 Gbps
- HDCP Version - 2.3
- 4K60P signal input - Yes
- Video Signal range - 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
- PC Signal range - 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
- Input Level Adjustment - Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
- Colour Space Range - Auto/ YCbCr444 / YCbCr422 / RGB
- EDID Modes - Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings)
Connections
- LAN - Yes
- Connector - RJ45
- Service - Yes
- Connector - USB (Type A) for firmware update or backup
Picture Settings
- Picture Modes - Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
- Colour Temperatures - Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
- Gamma Processing Depth - 12 bit
- Gamma Adjust - HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes
- Colour Management - 6-Axis adjustable CMS
- MPC - Yes
- Filmmaker Mode - Yes
- Low Latency Mode - Yes
- Auto Calibration - Yes
- Installation Mode - Yes
- Number of modes - 5
- Included settings - Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
- Anamorphic Modes - 4 Modes (A, B, C, D)
- Control4 SDDP - Yes
Description
The DLA-NZ700 represents a leap forward in projector technology, achieving the title of the world’s smallest native 4K projector. This is made possible by the complete redesign of its optical unit, lens, and circuit board.
As a result, JVC has managed to reduce the projector’s overall size by an impressive 35% compared to its predecessor, the DLA-NZ7/RS2100, without compromising on performance. Despite its smaller form factor, the DLA-NZ700 retains key features like the laser light source and native 4K D-ILA device, ensuring that it delivers superior image quality in a compact package.
This reduction in volume not only makes installation easier but also brings greater flexibility, especially for users with space constraints in home theater setups.
Improved Efficiency and Environmental Benefits
JVC has placed a strong emphasis on sustainability with the DLA-NZ700, using significantly less plastic in the construction of the projector. This not only reduces the environmental impact but also lowers transportation costs.
The redesign of the air intake and exhaust systems further enhances the projector’s efficiency. By placing the heat source exhaust at the rear, JVC has eliminated potential interference with the image on the projection screen, offering even more flexibility for installation in various environments.
These thoughtful design improvements contribute to a more eco-friendly product, without sacrificing the performance and quality that JVC is known for.
Advanced Image Quality with Native 4K D-ILA
At the heart of the DLA-NZ700 is JVC’s proprietary 0.69-inch native 4K D-ILA device, now in its third generation, which significantly enhances black detail and overall image quality.
This, combined with the projector’s high native contrast ratio of 80,000:1 (40,000:1 for the DLA-NZ500), ensures incredibly sharp, vibrant, and true-to-life visuals. Furthermore, the DLA-NZ700 boasts exceptional uniform brightness across the entire screen, making sure every corner of the image is beautifully illuminated.
With low latency design, the projector also offers rapid response times, making it a perfect choice for gaming, where fast-moving content and high frame rates are crucial for a smooth experience.
Enhanced HDR and Color Reproduction
For those who enjoy HDR content, the DLA-NZ700 takes viewing to new heights with its support for all major HDR formats, including HDR10, HLG, and HDR10+ with dynamic metadata. This projector offers a wide color gamut with BT.2020 and 10-bit gradation, allowing for a dynamic range that brings vivid and realistic colors to life.
The Gen2 Frame Adapt HDR function enhances the HDR experience by analyzing each scene’s brightness in real-time and adjusting tone mapping to optimize the image. This function has been significantly improved for brighter, more colorful, and higher-definition HDR visuals.
Additionally, the Deep Black Tone Control ensures deeper blacks and more detailed gradation, even in the darkest scenes, allowing for better contrast and more lifelike imagery.
Long-Lasting Brightness and Installation Flexibility
The DLA-NZ700 features JVC's Blu-Escent laser light source, delivering a high brightness of 2,300 lumens, with a long lifespan of approximately 20,000 hours. This ensures long-term, consistent performance and reduces the need for frequent maintenance or bulb replacements.
Furthermore, the projector’s installation flexibility is second to none, with fully electric zoom, focus, and shift capabilities. With a 70% vertical and 28% horizontal shift range, you can easily position the projector to achieve a perfectly aligned image, even in unconventional setups.
The large aperture, 4K-compatible lens ensures that every detail is delivered in full native 4K resolution across the entire screen, enhancing the visual experience no matter where you place the projector.
A True Home Theater Experience
With its cutting-edge features, the DLA-NZ700 provides an unrivaled home theater experience. Its high contrast, superior resolution, and HDR capabilities make it a perfect choice for cinephiles, while its gaming-friendly low latency and high frame-rate performance appeal to gamers seeking the ultimate visual experience.
Whether you're watching movies, streaming content, or playing games, the DLA-NZ700 delivers breathtaking images with incredible depth, detail, and color accuracy. It’s not just a projector; it’s a powerful tool for creating an immersive entertainment space that rivals even the best commercial theaters.
