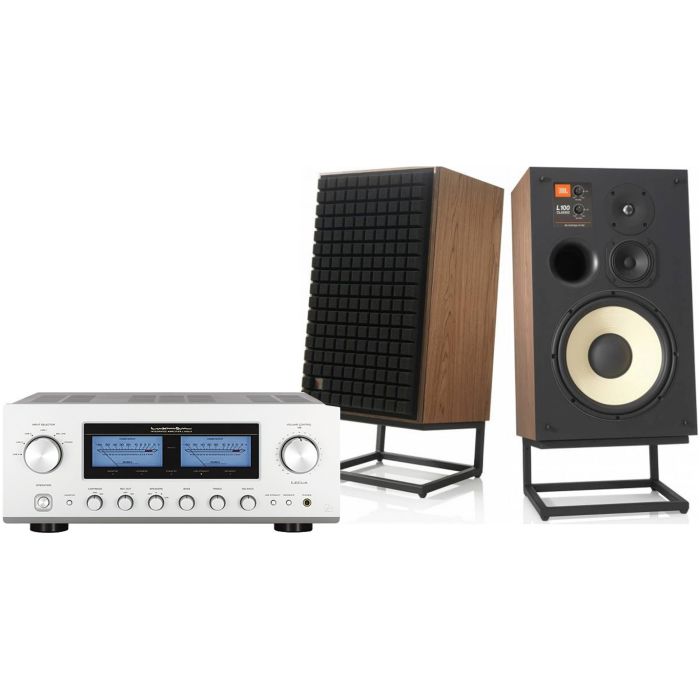

JBL L100 Speakers + Luxman L-505uX II Package
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
JBL L100
- Type: 3-way Bookshelf Loudspeaker
- LF: 12" pure pulp cone (JW300PW-8)
- MID: 5.25" polymer-coated pure pulp cone
- HF: 1" titanium dome with soft surround
- Freq Response: 40Hz – 40kHz (-6dB)
- Sensitivity: 90dB (2.83V/1m)
- Power Handling: 25 - 200 Watts RMS
- Crossover Frequencies: 450Hz, 3.5kHz
- Impedance: 4 Ohms
- Controls: Attenuators for MF/HF drivers
- Connector: 5-way gold-plated binding posts
- Dimensions (HWD): 636.5 x 389.6 x 371.48mm
- Weight: 26.7kg
L-505UX II
- Rated out: 2x 100W/150W (4/8Ω)
- Phono: 2.5/0.3mV, 47k/100Ω (MM/MC)
- Line: 180mV/47kΩ (BAL 180mV/55kΩ)
- Output volt: 180mV, PRE-OUT: 1V
- Phono Freq Resp: 20-20k Hz (-3dB)
- Line Freq Resp: 20-100k Hz (-3dB)
- THD: <0.09%/<0.009% (8Ω, 20-20k/1kHz)
- S/N ratio (IHF-A): (MM/MC): 91/75dB+
- LINE SNR: 104dB or more
- Volume adjustment: LECUA
- Amplification circuit: ODNF 4.0
- Output: Bipolar: 210
- Bass/Treble control: ±8dB @100/10k Hz
- Power supply: 230V/115V~ (50/60Hz)
- Power consumption: 270W/85W/0.4W
- Accessories: RA-17A Remote, Power cable
- Dimensions (WHD): 440 x 178 x 454mm
- Net weight: 22.5kg
Description
Well-matched package pairing the JBL L100 Classic Speakers with great sensitivity and this beautiful class AB Luxman L-505uX II integrated amplifier.
L-505uX II
Luxman L-505uX II features proprietary technologies such as Version 4.0 ODNF and LECUA. As Luxman's latest high-end model, it continues the evolution of the L-505 series, which has attracted many fans of audio quality and earned a great reputation. This amplifier is class AB, you also have the option for a package with the Class A L-550AXII amplifier - please call us to discuss.
JBL L100 Classic
JBL L100 Classic 12” 3-way Bookshelf Loudspeaker and a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance.
More Info
For more info on the speakers, visit our main JBL L100 page.
For more info on the amplifier, visit our main L-505uX II page.
