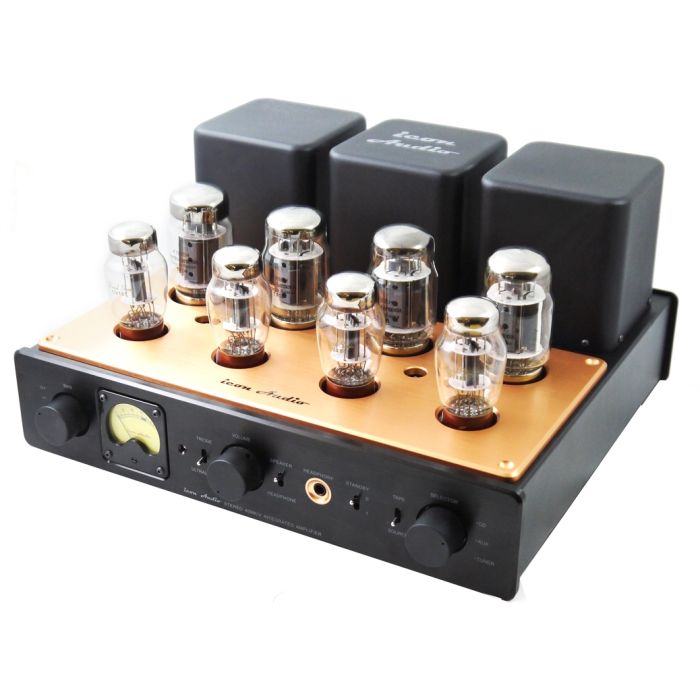

Icon Audio Stereo 40 MkIV Integrated Valve Amplifier KT88 Valves
In stock
Available - Usually ships within 14 days
Features
| XLR Inputs | No |
|---|---|
| Brand Color | None |
| Headphones Socket | No |
| Valve Type | KT88 Valves |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
Performance
- Class A, all Triode front end
- Circuit: Ultralinear or Triode switchable
- 4x EL34/KT88 matched for best performance
- Valve/phase splitter: 4x 6SN7 (1st stage)
- Output: 2x 50w per channel Ultralinear
- 2x 30 Watts in Triode mode
- Signal to noise level: -90db
- Freq response: >20hz-20kHz (0, –1dB)
- Power bandwidth: 30Hz-30kHz (-3dB)
- THD: 0.2% at full output
Connections
- Input sensitivity: 250/800mv (high/low)
- Silver PTFE audio cable
- Gold plated Input & speaker terminals
- Line inputs: CD, Tuner, Aux plus Tape
- Tape monitor circuit: ‘Record Out’
- Suitable for 4 to 16ohm loudspeakers
Features
- Remote control: HQ ALPS motorised vol
- Solen caps, Jensen copper foil (paper/oil)
- Supplied with valve cover
- Choke regulated power supply
- Custom hand wound Tertiary transformers
General
- Standby switch: save valve life/power
- Power requirement: 230-240v (117v adj)
- Max Power Consumption: 240W
- Cont Power Consumption: 76-140W min
- Compliance: CE, ROHS and WEEE
- Dimensions (WDH): 390 x 410 x 230mm
- Weight: 22kg
Description
Icon Audio ST40 MKI was the company's first design in 2001 and has always been a special product to them. Since that time, Icon Audio have substantially improved it over the years and its latest guise, the MK IV has several improvements making it an exceptional value.
Headphone Socket
Following customer feedback the new model now features a headphone socket giving greater flexibility of use.
Improved Power Supply
In conjunction with the re-designed output transformers, the Ultralinear Power is now over 50 Watts. This gives greater instantaneous power available for heavy transients, and a more solid bass.
Redesigned Driver Circuit
Using a “cascode” configuration for the first stage enables Icon Audio to use the venerable 6SN7 valve for all the driver circuit functions. This gives better definition whilst improving the frequency response at lower volumes. This also simplifies valve replacement as the amplifier only uses two valve types. Since too much feedback can spoil the sound of an amplifier, only a small amount is used in the Stereo 40 MK IV.
Choke Regulated Power Supply
Working in conjunction with the smoothing capacitors the large choke gives super-smooth power regulation for a silent background. Tertiary Transformers have an extra (third) winding which reduces distortion, using less global feedback. The large handmade output transformers are believed to be amongst the finest available. They are more expensive and difficult to make but worth the effort.
Wide range of valves
The Stereo 40 is designed to work with a wide range of output valves. You can choose between EL34 or KT88 (or even KT66/77/90, 6CA7, 6550). So you can experiment in the future.
Ultralinear or Triode
For sixty years hi-fi fans have argued which sound is better. With the Stereo 40 IV you have the choice of both at the flick of a switch. It is like having two amplifiers in one! Most hi-fi fans prefer the sound of triode operation. A majority of customers use the Triode Facility most of the time therefore this model is upgraded so the Triode power is now 30 Watts enabling use of all but the most inefficient speakers.
6SN7 (CV181)
More relaxed than their miniature cousins, these larger driver valves are the best in their class for their musical sound and longer life. Try the new David Shaw types or new production and vintage USA/Russian types.
Remote Control
HQ ALPS motorised volume pot remote control is useful to get exactly the right volume in your listening position and allows fine adjustment of the right sound level.
Plenty of Power
50 watts of power is enough to fill a medium to large room with a high volume of musical excellence. Icon Audio can offer a range of upgrades including Shuguang “Treasure” valves and Russian types. As well as the superb Jensen “oil in paper” capacitors.
