HiFi Rose RS520 Streamer DAC and Integrated Amplifier
In stock
Features
| Digital Optical Input | No |
|---|---|
| Preamp Output | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Supported Streaming Services - Spotify Connect, Tidal, Qobuz, Apple Music, RoseTube and Rose Podcast Supported
- Internet Radio Support - HiFi Rose Internet Radio App
- Apple AirPlay Support - Yes
- MQA Compatibility - Full MQA Decoding
- Roon Support - Roon Ready + Roon Tested
- Media Connection Options - USB + SATA
- Network Connectivity - Wi-Fi (with dongle) & Ethernet
- Audio Codecs Supported - WAV, FLAC, ALAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A Supported
- CPU Specifications - Hexa Core: Dual-core Cortex-A72 up to 1.8GHz / Quad-core Cortex-A53 up to 1.4GHz
- GPU - Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
- Memory - LPDDR4 4GB
- Display - 12.6" TFT LCD & Capacitive Touch Screen (eDP)
- Power Output (4Ω) - (Per-Channel) 250 W
- Power Output (8Ω) - (Per-Channel) 250 W
- Frequency Response - +1, -3dB (10Hz - 83kHz)
- Damping Factor - 150
- Tone Control - Software Adjustable
- Signal To Noise Ratio - (Speaker Output @ 250W) 109 dB
- Output Level (Unbalanced): - Max. 2 V
- THD +N - (Speaker Output @ 50W) 0.007 %
- Output Impedance - (Speaker Output) 0.05 Ω
- Oscillator - High Precision Femto Clock
- RCA Input(s) - 1
- Bluetooth Version - V4.2 (USB Dongle)
- HDMI Input(s) - eARC Input
- Optical Input(s) - 1
- Coaxial Input(s) - 1
- USB Digital Input - 1 x USB 2.0
- DAC Chip - ES9038 PRO
- File Limit Support (PCM) - 32-bit, 768kHz
- File Limit Support (DSD) - DSD512
- Digital Output(s) - Coaxial, Optical, USB
- HDMI Output(s) - 1
- Output Options - Switch variable output to fixed level
- Variable Analogue Output(s) - 1 x RCA Pair
- Video Output - ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC,H.264/AVC (Base/Main/High/ High10 profi le @ level5.1 upto 4Kx2K @ 30fps) H.265/HEVC (Main/Main10 profi le @ level 5.1 High-tier up to 4Kx2K @ 60fps) Supported
- App Control - Rose Hi-Fi
- Dimensions (W x H x D) - 346 x 127 x 328 mm
- Weight - 8.1 kg
Description
The HiFi Rose RS520 Streamer DAC and Integrated Amplifier is a premium all-in-one solution that blends sophisticated streaming capabilities with high-end digital-to-analogue conversion and robust amplification. Designed to rival multi-box audio setups, the RS520 handles everything from digital streaming to speaker power delivery with audiophile precision.
With Hi-Res Audio certification, a built-in DAC, and a GaN-based Class AD amplifier, this system delivers exceptional clarity, detail, and musicality—even with larger or more demanding loudspeakers. Running the highly praised Rose OS operating system and featuring full touch-screen control, the RS520 offers not only outstanding sound but also a seamless user experience. It represents an ideal solution for those seeking high-performance sound without the complexity of separate components.
Solid Construction, Seamless Control

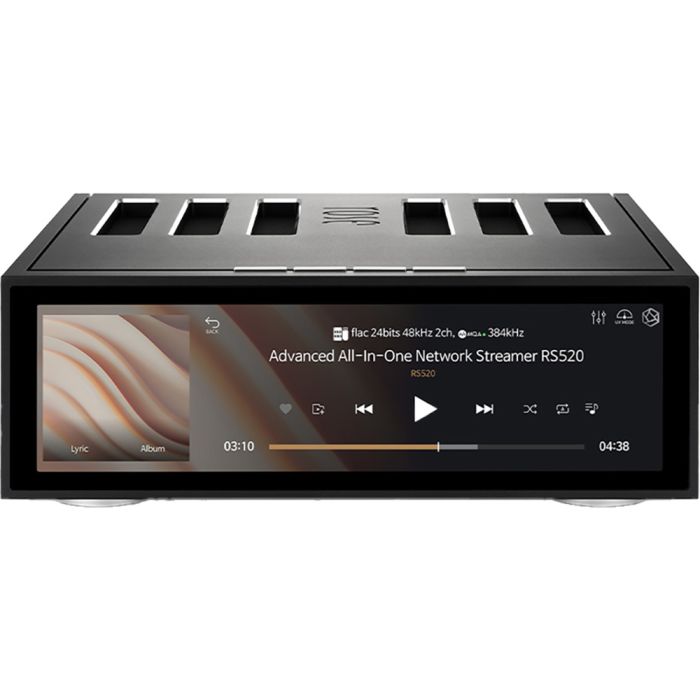

Crafted with precision, the RS520 features a robust aluminium enclosure made using a “one-piece” manufacturing method. This design significantly reduces mechanical resonance and standing waves, helping preserve audio integrity. Its sleek chassis is complemented by a large 12.6" multi-touch LCD display, offering a clear and intuitive interface for complete system control.
The display’s 1920 x 515 resolution allows for smooth interaction and vibrant album artwork, making navigation a joy. For added convenience, essential transport controls are located on the top panel. The RS520 looks as good as it sounds and reflects HiFi Rose’s commitment to marrying form and function in high-end audio equipment.
Versatility with Rose OS and Full Connectivity
At the heart of the RS520 is Rose OS, a custom operating system that brings flexibility and connectivity to your fingertips. Integrated streaming support for Spotify, TIDAL, Qobuz, Apple Music, Roon, and MQA ensures seamless access to a vast world of music. The RS520 also excels in connectivity, functioning as the core of your entire system.
Inputs include digital coaxial, optical, USB, HDMI eARC, and analogue line-level, while outputs cater to speakers, external amps, DACs, and HDMI-equipped video displays. Whether used for music, TV audio, or hi-res playback, the RS520 delivers unmatched control and sonic finesse in one streamlined chassis.
Engineered for Excellence and Effortless Enjoyment
Internally, the RS520 is a marvel of thoughtful engineering. Key components are isolated on separate boards with individual power supplies to minimise interference and optimise performance. The advanced ES9038PRO DAC chip and ultra-precise femto clock provide accurate, detailed signal processing.
In the amplifier stage, HiFi Rose uses the same GaN FET-based Class AD technology found in their flagship RA180 amp, delivering 250W per channel of smooth, natural power with analogue warmth. The result is a soundstage that’s open, articulate, and emotionally engaging. Combined with the Rose Connect app for intuitive operation from mobile devices, the RS520 is the complete package—capable of replacing an entire high-end separates system without compromise.
