Icon Audio MB90 MkII M + LA4 MkII + Klipsch Heritage Heresy IV
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
Icon Audio MB90 MKII M Mono Block Valve Power Amplifier
- Class A, all Triode front end
- Switchable Ultralinear/Triode 115/60W
- 4x KT120 matched valves (per pair)
- 2x 6SL7 2x 6SN7 driving valves (pair)
- Signal to noise level: -90db
- Freq response: 20-20k Hz (+0-0.5dB)
- THD: typically <0.1% 1khz (4/8 Ohm)
- SCR Hi-Fi Audio Capacitors
- Cable: Silver plated pure copper PTFE
- Big custom wound PSU with Choke
- Gold plated Input & speaker terminals
- Sensitivity: 450mv/ 950mv (high/low)
- Power: 230/240v, 200watts approx
- Consumption: 38/200W Standby/Max
- Dimensions (WDH): 200 x 500 x 220mm
- Weight: 21kg
Icon Audio LA4 MkIII Valve Pre Amplifier
- 3x 6SN7 valves
- 274B Valve rectifier (also use GZ34/5AR4/5R4)
- Double Choke HT supply
- DC heater supply
- Signal to noise level -90db
- Freq response 20hz-20khz +0 – 0.1db
- Total harmonic distortion typically <0.1%
- Gain x4, 12db#
- Max input level 5v for 20v output#
- Very low output impedance of 100Ω#
- Suitable for power amps 100mv-5v sensitivity
- Attractive valve cover available (£50 extra).
- Quality 2w metal film/wire-wound resistors
- Solen/SCR audio capacitors (Jensen upg)
- Silver PTFE audio cable
- Gold plated Input terminals
- Four line inputs
- Tape monitor circuit and record output
- 220/240volts 100watts
- C E compliant
- 250W, 370D, 230H (with 274B and cover)
- 175H with GZ34 (no cover) 12kg packed
Klipsch Heritage Heresy III Speakers
- Freq Resp (+/-4dB): 58Hz ñ 20kHz
- Sensitivity: 99dB @ 2.83V / 1m
- Handling (Cont/Peak): 100W/400W
- Maximum SPL: 116dB Continuous
- Nominal Impedance: 8? Compatible
- Crossover Freq: (HF/MF) 5000/850Hz
- HF: 1î Titanium Compression
- MID: 1.75î Titanium Compression
- LF: 12î Fiber-composite cone
- Enclosure Material: MDF
- Inputs: Dual binding posts
- Configuration: bi-wire / bi-amp
- Dimensions (HWD): 605 x 394 x 337cm
Description

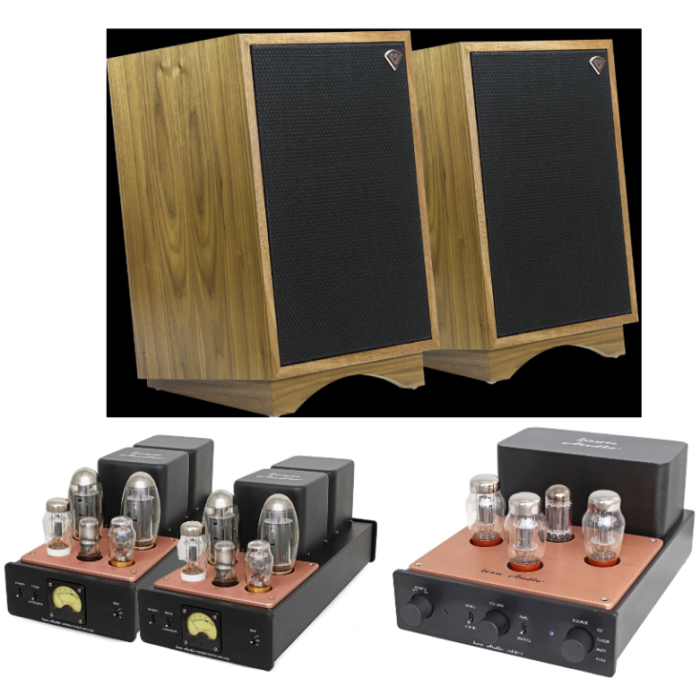

This is an Audio Affair hifi package that has been expertly matched combining the Icon Audio MB90 MKII M Mono Block Valve Power Amplifier, Icon Audio LA4 MkIII Valve Pre Amplifier and the Klipsch Heritage Heresy IV Speakers.
Talk to one of our hi-fi experts
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300/7401 to speak to one of our passionate hi-fi experts.
More information?
- For more info on the Power Amplifier, see our main Icon Audio MB90 MKII 3 Nova page
- For more info on the Pre Amplifier, see our main Icon Audio LA4 MKIII page
- For more info on the Speakers, see our main Klipsch Heritage Heresy IV page
- For recommendations on music sources (streaming, vinyl, CD, etc), please contact us
