Hi-Fi System 26 – PS Audio Stellar Gold Pre + Stellar M700 + JBL S3900 + Cables
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
The speakers - JBL S3900 Speakers (Pair)
- Type: 250 Watt 3-way floorstander
- UHF: ¾" pure-titanium compression
- HF: 1¾" Aquaplased pure-titanium compression
- Neodymium on SonoGlass Bi-Radial horn
- LF: 2x 10" pure-pulp cone, ferrite motor
- Freq Response: 33Hz – 40kHz (@-6dB)
- Sensitivity: 92dB (2.83V @1m)
- Recommended Amp: 250 Watts
- Crossover Frequencies: 850Hz, 12kHz
- Nominal Impedance: 6 Ohm
- Enclosure: 25mm thick MDF stock, ported
- Dimensions (HWD): 1001 x 370 x 368mm
- Weight: 39kg (86 lbs)
The power amplifier - PS Audio Stellar M700 Mono Power Amplifier (Pair)
- Unit Weight: 13 lbs [5.9 kg] (each)
- Unit Dimensions: 17”W x 3”H x 12”D (13"D w/connectors)
- 17”W x 6”H x 12”D (Stacked)
- Shipping Weight: 16.5 lbs [7.5 kg] (each)
- Shipping Dimensions: 22”W x 8”H x 17”D (each)
- Audio Inputs: RCA (Unbalanced)
- XLR (Balanced)
- Speaker Outputs: Copper base nickel plated binding posts (2 pair)
- DC Trigger Input: 3.5mm 5-15VDC
- Signal
- Gain: 30.5dB +/-0.5dB
- Sensitivity for rated output power: 1.6V
- Noise: 1kHz@700 Watts < -105dB
- Input impedance: Unbalanced 50KΩ
- Balanced 100KΩ
- Output Impedance: 50Hz, 2.8VRMS <0.007Ω
- Damping factor: 50Hz. 2.8VRMS
- 8Ω >1100
- 4Ω >550
- Frequency Response: 2.8VRMS into 4Ω
- 10Hz – 20KHz +/- 0.5dB
- 10Hz – 50KHz +0.1/-3.0dB
- THD&IM:
- 1KHz, 1W/4Ω <0.02%
- 10-20KHz, 1W/4Ω <0.02%
- 10-50KHz, 1W/4Ω < 0.05% (90kHz BW)
- 1KHz, 87.5W/4Ω < 0.015%
- Output Power:
- 120vac mains, 1kHz, 1% THD
- 8Ω: 350W minimum
- 4Ω: 700W minimum
- 2Ω: Stable for musical transients
The pre amplifier - PS Audio Stellar Gold Pre Amplifier
Connectors
- Audio Inputs: RCA / Single-Ended: 2 pair
- XLR / Balanced: 2 pair
- Audio Outputs: RCA / Single-Ended: 2 pair
- XLR / Balanced: 2 pair
- Trigger Output: 2
- USB: For USB firmware update only
Performance
- Max Gain: 12.6dB
- Frequency Response: 15Hz-150kHz, +/- 0.1dB
- Input Impedance: 50K Ω RCA / Single-Ended
- 100K Ω XLR / Balanced
- Bandwidth: 5Hz-500kHz, -3dB
- THD: < .0002% @ 1kHz, 1VRMS input
- THD+N: < .0003% @ 1kHz, 1VRMS input
- IMD: .0005% @ 1VRMS input, CCIF, 20kHz mean, 1kHz difference
- Crosstalk: -115dB, One channel driven
- Output level: 10VRMS Single-ended / 20VRMS Balanced @ 1% THD+N
- Output Impedance: 100Ω
Power Requirements
- Input Power: Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz
- Power Consumption: 15W
Physical
- Unit Weight: 24.1 lbs or 10.9 kg
- Unit Dimensions: 17"W x 3.3"H x 13"D (with knob, without knob 12"D) [43.18 cm x 8.38 cm x 33.02 (with knob, without 30.48 cm)]
- Shipping Weight: 27.6 lbs or 12.5 kg
- Shipping Dimensions: 22"W x 8"H x 17"D [55.88 cm x 20.32 cm x 43.18 cm]
The cable - Chord Epic XL Reference Speaker Cable - 3m Pair
- Conductor: Silver plated, OFC
- Insulation: XLPE
- Configuration: Twisted pair
- Shielding: Individual +/-
- Foil: High density foil
- Coverage: 95% metal braid
- Outer Jacket: Translucent PVC
- AWG: 12, mm2: 3.31
- Diameter: 2 x 7.5mm
Description

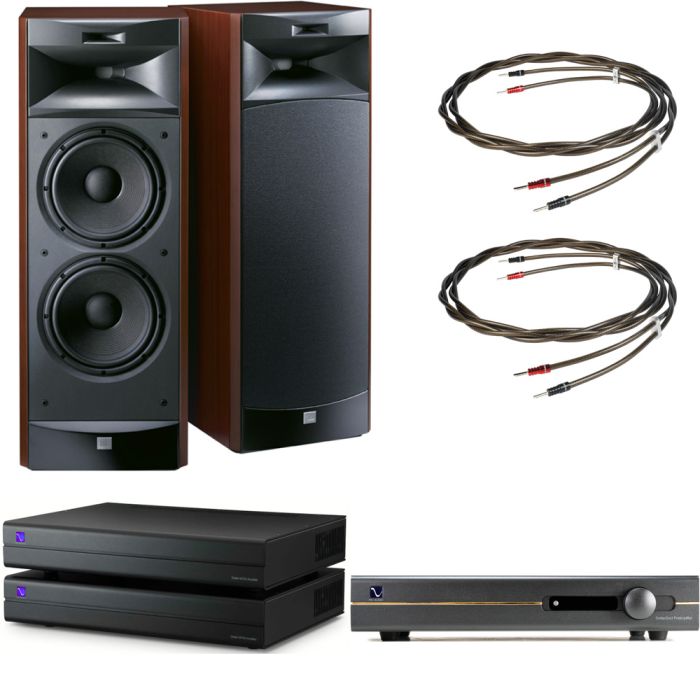

A selected HiFi system put together by our experts here at Audio Affair that consists of the PS Audio Stellar M700 Mono Power Amplifier (Pair) + PS Audio Stellar Gold Pre Amplifier + JBL S3900 Speakers (Pair) with recommended cables
The speakers - JBL S3900 Speakers (Pair)
JBL S3900 floor-standing speaker with twin 10" woofers, is perfect for dual and multi-channel home theater systems. Distinguished by its use of pro-grade components and with design cues derived from the iconic K2 S9900, the S3900 is any music enthusiast's dream come true. View Full Product Details Here
The power amplifier - PS Audio Stellar M700 Mono Power Amplifier (Pair)
PS Audio Stellar M700 Mono Power Amplifier has 700W of analog cell power and offers complete authority over your speakers. The M700 combines a Class D output stage with the Class A Analog Cell input stage for a Stellar performance. View Full Product Details Here
The pre amplifier - PS Audio Stellar Gold Pre Amplifier
The PS Audio Stellar Gold Preamplifier is a high-end unit designed to go with the Stellar Gold DAC. However, it can also be used with any other quality amplifier. Preamplifiers act as the backbone of a premium audio setup. They manage the volume as well as ensure that the sound sources are electrically separated. The PS Audio Stellar Gold Pre amplifier features a balanced design with four inputs and all-discrete circuity. The sound is warm and accurate with life and energy. Lastly, there is a front display that shows the selected source and volume level. View Full Product Details Here
Optional Cables - Chord Epic XL Reference Speaker Cable - 3m Pair
Please note: cables pictured are NOT included but are our recommended option for this package. Please contact us to order with cables and we can do a great deal on these (View Full Product Details Here) or any other cables option.
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
