Hi-Fi System 25 – Anthem STR Integrated + PMC Twenty5 23i + Cables
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
The speakers - PMC Twenty5 23i Speakers (Pair)
- Available Finishes - Walnut, Diamond Black, Oak, White Silk
- Crossover Frequency - 1.7kHz
- Dimensions - H 907mm x W 162mm (238mm inc. plint bars) x D 330mm (+9mm for grille)
- Drive Units - LF PMC 5.5”/140mm long-throw g-weave™ cone with cast alloy chassis - HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled
- Effective ATL™ Length - 2.4m
- Frequency Response - 28Hz - 25kHz
- Impedance - 8 Ohm
- Input Connectors - One pair 4mm binding posts
- Sensitivity - 86.5dB 1W 1m
- Weight - 15kg each
The amplifier - Anthem STR Integrated Amplifier
Phono Preamp
- Input Impedance: 100Ω, 47kΩ (MC/MM)
- Input Capacitance: 270pF (MM)
- Max (20Hz-kHz): 3.6/37.7mV (MC/MM)
- Gain (adj ±20dB): 55/35dB (MC/MM)
- RIAA Response: ±0.1dB (20Hz-kHz)
- THD+N (20Hz-kHz): 0.008%/0.005% (MC/MM)
- SNR: (1kHz, IEC-A): 82/96dB (MC/MM)
Freq Response
- DIG: (44.1/192) 10-50kHz (-0.03/-0.5dB)
- Analogue DSP: 10Hz-40kHz (+0.02, -0.2dB)
- Analogue Direct: 10Hz-80kHz (+0,-0.1dB)
Preamp
- Max Out (<0.1%): 2.2Vrms (ANG: 3.3Vrms)
- XLR: (1/2/3) Ground, Normal, Inverted
THD+N
- Digital: 44.1kHz, 0dBFS, 0.0008%
- Analogue: 1Vrms, 0.0020%
SNR
- Digital: 44.1kHz, 0dBFS, 112dB
- Analogue DSP: 2Vrms, 110dB
- Analogue Direct: 2Vrms, 120dB
Power Amp
- Power Out: 8/4/2Ω, (200/400/550W)
- THD (100W) 0.002% / 0.015% (1/20kHz)
- IMD (100W): ITU-R (19+20kHz) 0.0007%
- SMPTE: (60+7k Hz) 0.005%
- SNR (IEC-A, ref 200W): 114 dB
- Freq Response: (20Hz - 20kHz) ±0.1dB
- Bandwidth (-3dB @200W, 8Ω): 80kHz
- Slew Rate: 30 V/μs
- Damping Factor: (20Hz - 1kHz) 330
- Ch Separation: 101/61dB (100/10k Hz)
General
- Power Required: 220-240/120V (50/60Hz)
- Standby Consumption: 0.38/0.45W
- Max Power Output: 500W
- Dimensions (HWD): 172 x 432 x 445mm
- Weight: 18kg (40lbs)
The cable - Chord Epic XL Reference Speaker Cable - 3m Pair
- Conductor: Silver plated, OFC
- Insulation: XLPE
- Configuration: Twisted pair
- Shielding: Individual +/-
- Foil: High density foil
- Coverage: 95% metal braid
- Outer Jacket: Translucent PVC
- AWG: 12, mm2: 3.31
- Diameter: 2 x 7.5mm
Description

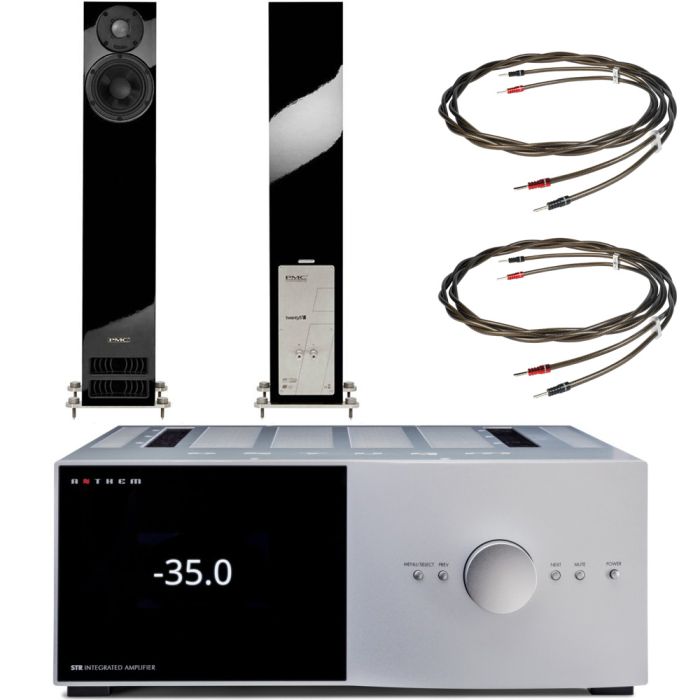

A selected HiFi system put together by our experts here at Audio Affair that consists of the Anthem STR Integrated Amplifier + PMC Twenty5 23i Speakers (Pair) with recommended cables
The speakers - PMC Twenty5 23i Speakers (Pair)
The PMC Twenty5 23i Speakers (Pair) are the entry-level into the Twenty5 floostanding speaker range from PMC, available in Oak, Walnut, White Silk and Diamond Black. This combines perfectly with the PMC Twenty5 subwoofer and are also the perfect accompaniment to the PMC Twenty5 Centre Speaker suitable for any room. View Full Product Details Here
The amplifier - Anthem STR Integrated Amplifier
Anthem STR Integrated Amplifier is based on an entirely new technological platform, for true benchmark performance in stereo amplification, combining the benefits of an advanced preamp with the power of a massive amplifier and processor. It includes leading-edge DAC, onboard ARC, customisable bass manager for mono or stereo sub outs, MM/MC phono inputs more than the average integrated amp. View Full Product Details Here
Optional Cables - Chord Epic XL Reference Speaker Cable - 3m Pair
Please note: cables pictured are NOT included but are our recommended option for this package. Please contact us to order with cables and we can do a great deal on these (View Full Product Details Here) or any other cables option.
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
