Hi-Fi System 18 – ATC SIA2-100 + ATC SCM19 + Cables
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
The speakers - ATC SCM19 Speakers (Pair)
Drivers
- HF: 25mm Neodymium soft dome
- Mid/LF: ATC 150mm SL
Performance
- Matched Response: ±0.5dB
- Freq Response (-6dB): 54Hz-22kHz
- Horizontal Dispersion: ±80° Coherent
- Vertical Dispersion: ±10° Coherent
- Sensitivity: 85dB @ 1W @ 1metre
- Max SPL: 108dB
- Power Amplifier: 75 to 300 Watts
- Nominal Impedance: 8 Ohm
- Crossover Frequency: 2.5kHz
- Connect: Binding posts/4mm plugs, biwire
General
- Dimensions (HWD): 438 x 265 x 300mm
- Weight: 17.8kg
The amplifier - ATC SIA2-100 Integrated Amplifier
Performance
- Max Power Output: 100W
- Cont: 8 Ohms, 1kHz, both channels
- Line In: 2 stereo (inc 3.5mm jack)
- Line Sensitivity: 500mV
- Input Impedance: 13k8 Ohms
- Line Outputs: One, stereo
- Overload Capacity: 13dB
- Line Output Impedance: 10 Ohms
- Freq Response: <2–>250k Hz (@-3dB)
- THD: 1/10kHz <0.0015%/<0.002% (-96/90dB)
- Crosstalk: >80dB (10Hz – 20kHz)
- SNR: Wide >96dB, DIN >108dB, >IEC “A” 112d
Coax/Optical
- THD: 1/10kHz <0.0015%/<0.005% (-96/86dB)
- Frequency Response: 20Hz – 20kHz (+/- 0.1dB)
- S+N/N Ratio: >100dB (IEC “A”)
- Word Lengths Supported: 16 – 24 Bit
- Sample Rates: 44.1-192kHz (192kHz via coax)
USB (PCM)
- THD: 1/10kHz, <0.0015%/<0.005% (-96/86dB)
- Freq Response: 20Hz – 50kHz (+/-0.1dB)
- S+N/N Ratio: >100dB (IEC “A”)
- Word Lengths Supported: 16 – 32 Bit
- Sample Rates: 32-384.0kHz
USB (DSD)
- Freq Response: 10Hz – 50kHz (+/-0.1dB)
- S+N/N Ratio: >100dB (IEC “A”)
- DSD: Windows: 64/128/256, MAC: 64/128
General
- Dimensions (HWD): 113 x 315 x 315mm
- Weight: 9.70kg (24.39lbs)
The cable - Chord Epic Twin Speaker Cable - 3m Pair
- Conductor: Silver-plated OFC
- Insulation: PTFE
- Configuration: Twisted pair
- Shielding: High density foil and 93% coverage metal braid. Translucent PVC outer jacket
- AWG: 12
- mm2: 3.31
- Diameter: 11mm
Description

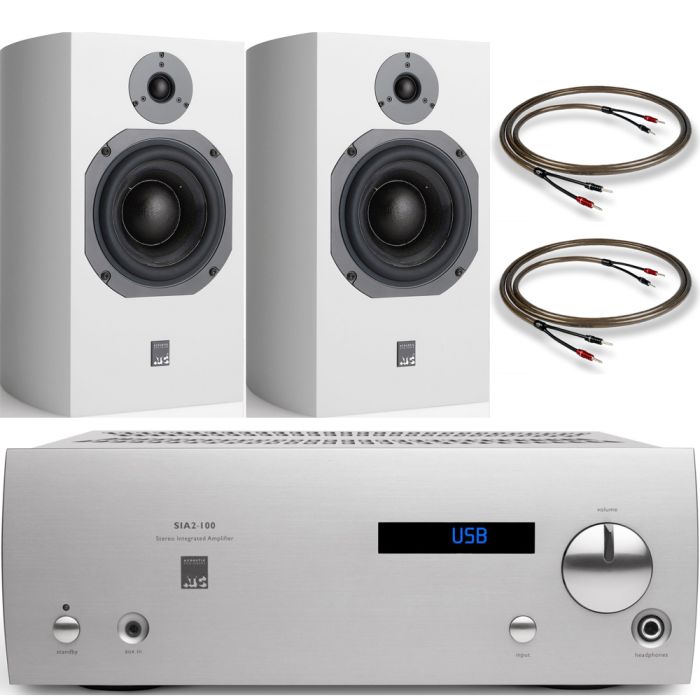

A selected HiFi system put together by our experts here at Audio Affair that consists of the ATC SIA2-100 Integrated Amplifier + ATC SCM19 Speakers (Pair) with recommended cables
The speakers - ATC SCM19 Speakers (Pair)
ATC SCM19 bookshelf speakers are award-winning loudspeakers that offer an impressive sound stage from a stylish design. ATC’s SCM 19 is the largest bookshelf model in the SCM range, coming in above the SCM7 and SCM11. View Full Product Details Here
The amplifier - ATC SIA2-100 Integrated Amplifier
ATC SIA2-100 Integrated Amplifier is compact at 2/3 width yet delivers high output power and excellent resolution with an integrated DAC suited to driving small to medium speakers and styling that assures seamless integration with other equipment. View Full Product Details Here
Optional Cables - Chord Epic Twin Speaker Cable - 3m Pair
Please note: cables pictured are NOT included but are our recommended option for this package. Please contact us to order with cables and we can do a great deal on these (View Full Product Details Here) or any other cables option.
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
