Hi-Fi System 10 - Leak Stereo 230 and Wharfedale Linton with Chord Cables
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
The speakers - Wharfedale Linton Speakers (Pair)- Stands Included
- Type: 3-way Bass reflex
- Bass: 8" black woven Kevlar cone
- Mid: 5" black woven Kevlar cone
- Treble Driver: 1" soft dome
- Sensitivity (2.0V @1m): 90dB
- Recommended Amp: 25-200W
- Peak SPL: 110dB
- Impedance: 6/3.5Ω (Nominal/Min)
- Freq Resp (+/-3dB): 40~20k Hz
- Bass Extension (-6dB): 35Hz
- Crossover Freq: 630Hz & 2.4kHz
- Dimensions (HWD): 565 x 300 x 360mm
- Weight: 18.4kg/pcs
The amplifier - Leak Stereo 230 Integrated Amplifier
Design Philosophy and Core Technology
- 2 x 75W (8ohm) / 2 x 115W (4ohm) Class AB
- ST MOSFET TDA7293 Dual Parallel Amplifier
- ES9038Q2M 32-bit DAC
- Built-in Certified Hardware MQA Full Decoder (PC USB, Coax, Optical)
- Support Bluetooth 5.0 (aptX / aptX LL) streaming
- Low Noise Moving Magnet Phono stage
- Dedicated Current-Feedback Headphone AMP
- Support USB Upgrade
- Inputs: 2 x Analogue, 1 x Phono (MM), 1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x HDMI ARC, 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger
- Outputs: 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency
- Optical/Coaxial: 44.1kHz ---192kHz
- PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
- Gain: +41dB (Phono MM)
- Input Sensitivity: 550mV (Line, Volume =MAX), 4.8mV (Phone MM, Volume=MAX)
- Input Impedance: 10K (Line), 47K // 100pF (Phono MM)
- Total Harmonic Distortion (THD): <0.001% (1kHz @2V, TONE=On)
- Frequency Response: 20Hz-20kHz (+/-0.1dB)
- Output Voltage: 2.3V max. (Volume = MAX)
- Output Impedance: 100ohm
- Signal-to-Noise Ratio: >110dB (Line, A-weighted); >75dB (Phono MM, A-weighted)
DAC
- D to A Converter: ES9038Q2M
- Total Harmonic Distortion (THD): <0.002% (1kHz @ 0dBFS)
- Output level (0dBFS, 1KHz): 2.3Vrms
- Max. Sampling Frequency: Optical, Coaxial: 192kHz, PC USB: PCM768kHz, DSD512
- Signal-to-Noise Ratio (S/N): >115dB (A-weighted)
Power Amplifier Section
- Gain: +32dB
- Rated Power Output: 2 x 75W (8ohm, THD<1%); 2 x 115W (4ohm, THD<1%)
- Frequency Response: 20Hz-20kHz (+/-0.3dB)
- Total Harmonic Distortion (THD): <0.003% (1kHz @30W/8ohm)
- Input Sensitivity: 550mV
- Signal-to-Noise Ratio (S/N): >109dB (A-weighted
Headphone Amplifier
- Total Harmonic Distortion (THD): <0.01% (1kHz, 50mW)
- Output Impedance: 4.7ohm
- Load Impedance: 16-600ohm
The cable - Chord Clearway X Speaker Cable - 3m Pair
- Conductors: 2 x 14AWG
- Material: bare stranded copper
- Insulation: XLPE
- Inner Jacket: White PVC inner jacket
- Outer Jacket: Transparent PVC outer jacket
- Shield: 2 x Foil Shield
- Outer diameter: 10.5mm
- Termination: 4mm banana
Description

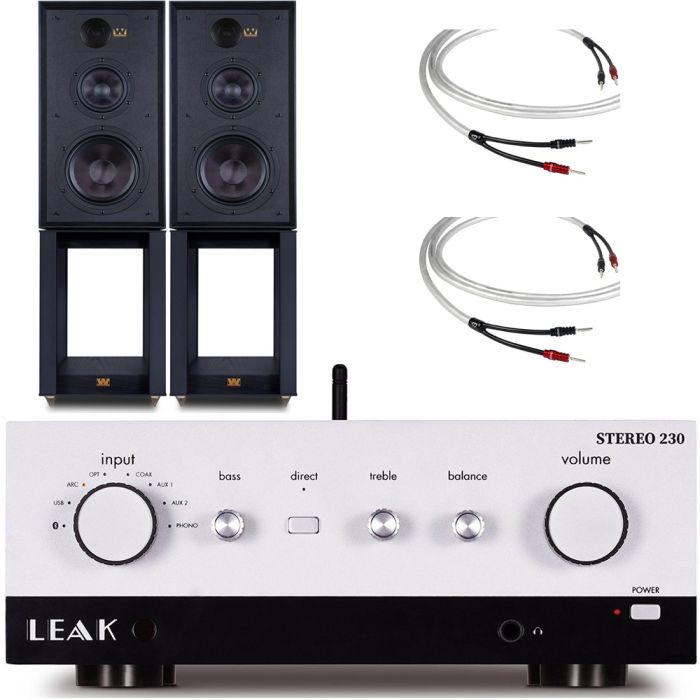

The Leak Stereo 230 amplifier and Wharfedale Linton speakers with recommended cables is a starter hi-fi system put together by our specialists here at Audio Affair, the combination of the Leak amplifier alongside the Wharfedale speakers produces a clean and crisp sound.
The speakers - Wharfedale Linton Speakers (Pair)- Stands Included
Wharfedale Linton speakers are among the most iconic models in Wharfedale’s long history of loudspeakers, available in mahogany, walnut or black oak.
Like the Denton 85, the Linton model follows in the trend for updated versions of classic designs. Retaining the classic sound of the original with updated drivers, crossovers and reworked cabinets, these are beautiful speakers and an enticing alternative to more modern options. View Full Product Details Here
The amplifier - Leak Stereo 230 Integrated Amplifier
Wharfedale Linton speakers are among the most iconic models in Wharfedale’s long history of loudspeakers, available in mahogany, walnut or black oak.
Like the Denton 85, the Linton model follows in the trend for updated versions of classic designs. Retaining the classic sound of the original with updated drivers, crossovers and reworked cabinets, these are beautiful speakers and an enticing alternative to more modern options. View Full Product Details Here
Optional Cables - Chord Clearway X Speaker Cable - 3m Pair
Please note: cables pictured are NOT included but are our recommended option for this package. Please contact us to order with cables and we can do a great deal on these (View Full Product Details Here) or any other cables option.
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
