Hi-Fi System 09 – Yamaha R-N800A + ATC SCM7 + Cables
In stock
Features
| Warranty The length of time your product is protected by warranty | Full Warranty |
|---|---|
| Brand Color | None |
Tech Specs
The speakers - ATC SCM7 Speakers (Pair)
- HF Driver: 25mm Neodymium Soft Dome
- Mid/LF Drivers: ATC 125mm SC
- Matched Response: ±0.5dB
- Frequency Response (-6dB): 60Hz-22kHz
- Horizontal Dispersion: ±80° Coherent
- Vertical Dispersion: ±10° Coherent
- Sensitivity: 84dB @ 1W @ 1metre
- Max SPL: 103dB
- Recommended Power Amp: 75-300W
- Nominal Impedance: 8 Ohm
- Crossover Frequency: 2.5kHz
- Connectors: Binding Posts/4mm Plugs, bi-wire
- Dimensions (HWD): 300 x 174 x 215mm
- Weight: 7.5kg
The amplifier - Yamaha R-N800A Network Receiver
- Network section - File Format - MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD
- AirPlay - Yes
- High Dynamic Power/Channel (8/6/4/2 ohms) - 140 / 170 / 220 / 290 W
- Frequency Response - 10 Hz-100 kHz 0±1.0 dB, 20-20 kHｚ0±0.5 (Pure Direct ON)
- Signal-to-Noise Ratio (CD) - 100 dB (Pure Direct ON)
- Audio In / Out - Phono, CD, line1, line2 / Pre out, Subwoofer out
- Digital Input - Optical1, Optical2, Coaxial1, Coaxial2
- USB Input - USB DAC (USB B-type)
- Subwoofer Out - Yes
- Control (Trigger) Out - Yes
- FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) - 3 µV (20.8 dBf)
- FM Signal-to-Noise Ratio (Mono/Stereo) - 69 dB / 68 dB
- Pure Direct - Yes
- ToP-ART - Yes
- Standby Power Consumption - 0.1 W (Network standby on/ Wi-Fi connection 1.8 W)
- Dimensions (W x H x D) - 435 x 151 x 395 (with antenna up: 435 x 232 x 395)+ 17-1/8" x 6" x 15-1/2" (with antenna up: 17-1/8" x 9-1/8" x 15-1/2")
- Weight - 11.4 kg; 25.2 lbs
- Receiver / Integrated Amplifier
- Network section - Wi-Fi - Yes
- Bluetooth - Yes (SBC / AAC)
- Rated Output Power - [20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms) 120 W + 120 W (6 ohms)
- HDMI(ARC) - No
- Phono Input - Yes
- Ethernet - Yes
- Headphone Out - Yes
The cable - Chord Clearway X Speaker Cable - 3m Pair
- Conductors: 2 x 14AWG
- Material: bare stranded copper
- Insulation: XLPE
- Inner Jacket: White PVC inner jacket
- Outer Jacket: Transparent PVC outer jacket
- Shield: 2 x Foil Shield
- Outer diameter: 10.5mm
- Termination: 4mm banana
Description

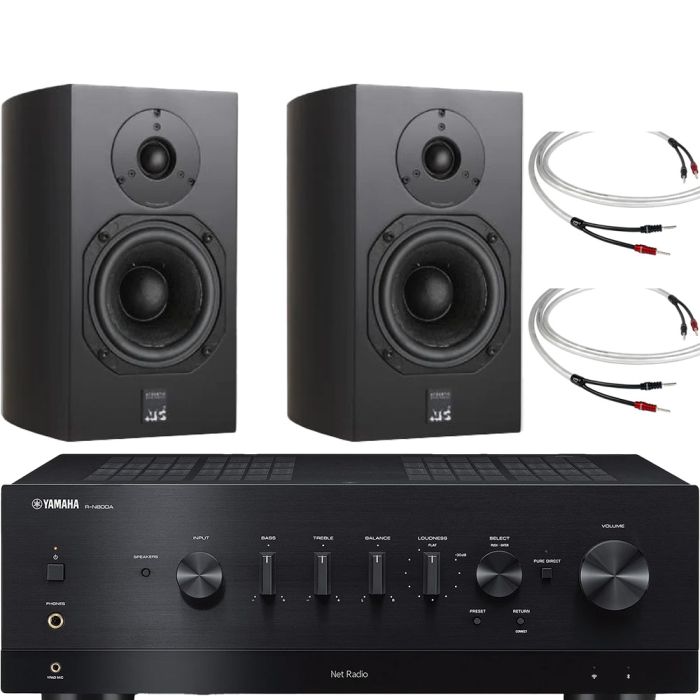

A selected HiFi system put together by our experts here at Audio Affair that consists of the Yamaha R-N800A + ATC SCM7 with recommended cables
The speakers - ATC SCM7 Speakers (Pair)
This is the most compact model in the SCM range, sitting under the SCM11, SCM19 bookshelf models and SCM40 floorstanders. Despite their comparatively diminutive size, the SCM7 pack a punch and are incredibly accomplished speakers. View Full Product Details Here
The amplifier - Yamaha R-N800A Network Receiver
The Yamaha R-N800A Network Receiver can connect to a wide range of sources. Notably, it is an all-in-one unit that can stream audio from popular providers such as Spotify. However, it can also be used with a turntable and has a built-in DAB radio. View Full Product Details Here
Optional Cables - Chord Clearway X Speaker Cable - 3m Pair
Please note: cables pictured are NOT included but are our recommended option for this package. Please contact us to order with cables and we can do a great deal on these (View Full Product Details Here) or any other cables option.
Talk to one of our hi-fi specialists
This is a highly recommended pairing, but please remember it is only an example - we can spec higher model amps or speakers to your room and requirements - please send us an e-mail or give us a call on 01212247300 to speak to one of our passionate hi-fi experts.
