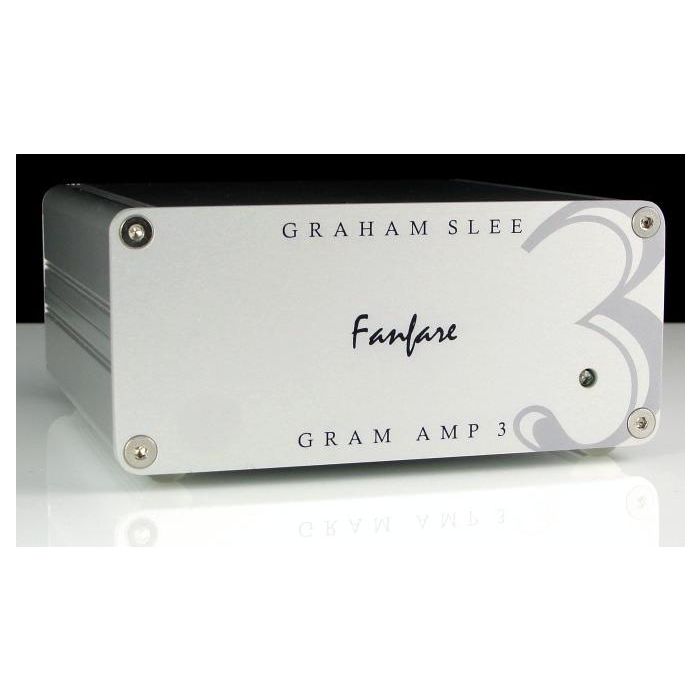

Graham Slee Gram Amp 3 Fanfare Phono Stage
In stock
Usually ships within 3-4 weeks. Order now to reserve your place in the queue
Features
| MC input | No |
|---|---|
| MM Input | No |
| Adjustable Gain | No |
| Adjustable Impedance | No |
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Input sensitivity range: 0.3mV to 1.2mV
- Output for input sensitivity range: 240mV - 954mV
- Maximum input level: 6.16mV (ref 1 kHz)
- Gain (ref 1kHz): 58dB
- Input impedance resistive: 100 Ohms
- Output noise: (CCIR Q-Pk 22Hz-22 kHz) -67dB
- Equivalent Input Noise (EIN) -125dB
- RIAA: within 0.5dB total deviation 20Hz-20kHz
- THD: less than 0.05% (typically <0.015% at 1 kHz)
- Channel balance: 0.1dB
- Channel separation: 64dB
Description
The Graham Slee Fanfare is a dedicated moving coil (MC) phono stage, optimised for the narrow range of gains from an MC cartridge, offering better performance than most MM/MC phono stages. Hand built in England, all of this is contained within a very small box measuring less than 6" deep, 3" high a 3" wide.
The Fanfare uses studio tape head preamp technology to bring you the extreme fidelity captured in the groove. Because of its wideband design capabilities it is able to utilise op-amp characteristics that are beyond current hi-fi understanding. At last, a budget moving coil cartridge can deliver its full glory with this fantastic phono stage.
The Fanfare is not limited by the slow low noise techniques that plague competing moving coil amps, and as such it delivers real musicality while at the same time having a perceived noise floor lower than many moving magnet designs. Input impedance is fixed at 470 Ohms, which is the optimum load for the majority of moving coil cartridges.
Suitable for most MC cartridges with output between 0.2mV and 1.0 mV. Includes green power supply. You can upgrade to the PSU1 power supply in future if you wish.
Rear Panel
