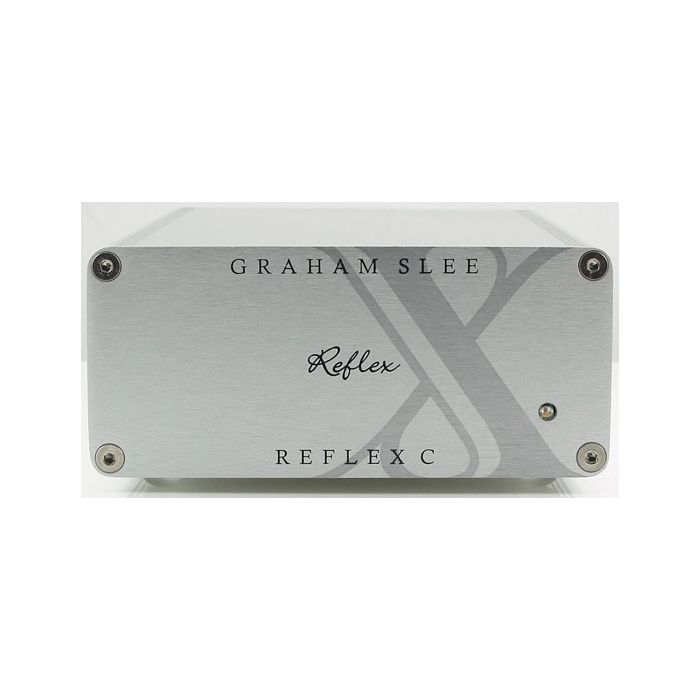

Graham Slee Reflex C Phono Stage
In stock
Features
| MC input | No |
|---|---|
| MM Input | No |
| Adjustable Gain | No |
| Brand Color | None |
| Adjustable Impedance | No |
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
- Input range: 0.2mV to 1.0mV
- Output (for input range): 252mV to 1,260mV (1.26V)
- Maximum input: 3.9mV rms
- Maximum output: 4.914V rms
- Gain: 62dB (1,260) at 1kHz
- Input impedance: 100 Ohms
- Output (driving/source) impedance: 1k Ohm
- Recommended load impedance: 10k Ohm or greater
- Noise at output: -62dB CCIR Q-pk
- Equivalent input noise (EIN): -124dB
- Distortion: 0.02%
- RIAA accuracy: <0.5dB
- Frequency response: 20Hz - 200kHz (flat, corrected to RIAA)
- Channel balance: 0.2dB
- Channel separation: 64dB
- Size: (approx.) W: 107 x H: 50 x D: 180 (mm) inc. jacks
Description
The Graham Slee Reflex C is a new model designed for use with low output MC cartridges, with the option of the standard power supply or better PSU1. The Reflex C features a dual mono configuration and has an unparalleled ability to do one thing - reproduce music exactly the way it should sound.
The Reflex C is designed for use with low output MC cartridges only (of 0.2 to 1.0 mV nominal output). We also sell the Reflex M (for MM and high output MC cartridges).
Graham Slee stated the 'Reflex has the ability to separate the performers further than before, but still keeps the togetherness or cohesiveness of the performance. It can enable you to hear that missing word while still hearing the instrumental accompaniment—that's what stability with wide bandwidth does - and nothing else can'. The Reflex offers a new milestone in performance at the price.
Rear Panel
