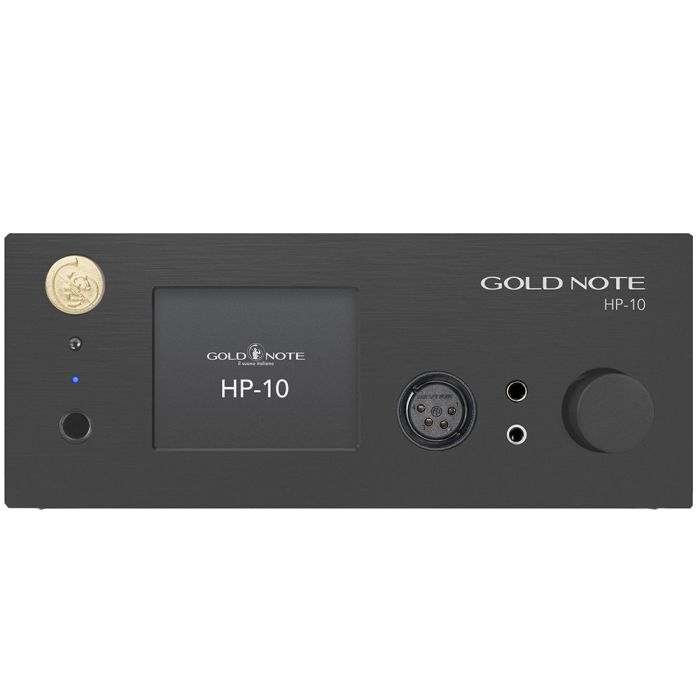

Gold Note HP-10 Headphone Amplifier

The Gold Note HP-10 Headphone Amplifier represents a new generation of high-end headphone amplification, created for listeners who demand uncompromising analogue performance. Designed around a fully balanced Dual-Mono Class A architecture, it preserves signal purity and delivers exceptional clarity, dynamics and control.

Every stage of the audio path is engineered entirely in the analogue domain using carefully selected discrete components, ensuring that all adjustments are applied in real time without digital processing. With substantial power output and wide compatibility, the HP-10 is capable of driving virtually any headphone design with authority and refinement. It is a purpose-built amplifier for serious audiophiles seeking precision, musicality and long-term listening satisfaction.

Pure Class A Dual-Mono Architecture

At the heart of the HP-10 lies a true Dual-Mono Class A design, with completely separated left and right channels to minimise crosstalk and maximise stereo imaging. This topology ensures outstanding channel separation and a stable, expansive soundstage. Delivering up to 10 watts of maximum headphone output power, the amplifier provides exceptional control across a wide range of headphone impedances and sensitivities.

With a frequency response of 20Hz to 20kHz within ±0.3dB, low distortion of 0.015% at 1kHz and a signal-to-noise ratio of 110dB, the HP-10 combines technical excellence with a natural, engaging presentation. The result is a listening experience defined by transparency, impact and tonal accuracy.

Studio Features for Complete Personalisation

The HP-10 introduces an extensive suite of analogue “Studio” features, allowing precise tailoring of the listening experience. Four adjustable Crossfeed modes blend left and right channels to recreate a more speaker-like presentation and enhance spatial realism. Harman Curve equalisation optimises tonal balance for headphone listening, while Superflat refines high-frequency response.

Adjustable damping factor settings allow optimal electrical matching with different headphone types, and a 0/180-degree phase switch provides additional flexibility. Balance control enables fine adjustment of left and right channel levels, an important feature given the natural tolerances in headphone drivers. All of these functions operate entirely in the analogue domain to preserve absolute signal integrity.

Versatile Connectivity and Output Options

The Gold Note HP-10 Headphone Amplifier offers comprehensive connectivity for seamless system integration. Analogue inputs include both unbalanced RCA and balanced XLR connections, allowing compatibility with a wide range of high-end sources. On the front panel, four headphone outputs are provided: 3.5mm and 6.3mm unbalanced jacks, plus 4.4mm balanced and 4-pin XLR balanced connectors.

This ensures effortless pairing with virtually any premium headphone. Rear RCA and XLR line outputs enable the HP-10 to function as a line preamplifier, with Studio features available on the line signal if desired. Stereo and mono modes, as well as left/right channel swapping, further expand operational flexibility.

Intuitive Control and Seamless Integration

Ease of use is central to the HP-10’s design. A high-resolution touchscreen display, multifunction rotary knob and included remote control provide multiple intuitive control options. Adjustments can be made quickly and precisely without interrupting listening sessions. The integrated trigger IN/OUT connection allows synchronised power control with other system components.

A practical bypass function enables the HP-10 to be integrated into systems that already include a preamplifier, allowing seamless switching between loudspeaker and headphone listening without rewiring. When activated correctly using matching RCA or XLR connections, bypass mode ensures maximum convenience while maintaining optimal signal flow.

Compact Design with High-End Engineering

Housed in a solid aluminium chassis measuring 200mm wide and weighing 3.5 kilograms, the HP-10 combines compact proportions with serious engineering. Its robust internal power supply supports stable Class A operation while keeping noise to a minimum.

Every component has been selected to achieve durability, reliability and consistent performance over time. Designed as a pure analogue headphone amplifier without digital inputs, this version focuses entirely on signal integrity and amplification quality. For listeners seeking a refined, powerful and highly customisable headphone amplifier, the Gold Note HP-10 Headphone Amplifier delivers reference-level performance in an elegant and versatile package.
