FiiO KA15 DAC & Headphone Amplifier
In stock
Features
| Headphone Socket | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
Size and Weight
- Dimensions - 152mm x 25mm x 11mm
- Weight - 21g
General
- Hardware solution - DAC:CS43198 x2
- Adaptive impedance - PO: 16~150Ω
- BAL: 16~300Ω
- Sampling rate indication - LCD display screen
- Max supported sampling rate - 768K/32bit
- DSD64/128/256
- 384K/32bit (coaxial)
- Firmware upgrade - System firmware can be upgraded via USB
- FIIO control - Supported
- EQ - Supported
Buttons and Ports
- USB port - Type-C USB
- 3.5mm plug - Single-ended/SPDIF output (shared)
- Physical button - Adjust volume, switch songs
- 4.4mm plug - Balanced output
- Toggle switch - Desktop mode switch
Audio
- Parts of performance and parameters (3.5mm headphone out)
- Output power - L+R≥290mW+290mW (16Ω, THD+N<1%, USB IN)
- L+R≥180mW+180mW (32Ω, THD+N<1%, USB IN)
- L+R≥19mW+19mW (300Ω, THD+N<1%, USB IN)
- Frequency response - 20Hz~20kHz, damping≤0.1dB
- 20Hz~50kHz, damping≤0.1dB
- THD+N - <0.00045% (0dB, 32Ω)
- Peak output voltage - ≥2.4V (32Ω, THD+N<1%)
- Output impedance - <0.8Ω
- Crosstalk - ≥74dB (1kHz, 32Ω)
- Noise floor - 1.7uV"A"
- SNR - ≥122dB (32Ω, A-weighted)
- Parts of performance and parameters (4.4mm headphone out)
- Output power - L+R≥510mW+510mW (16Ω, THD+N<1%, USB IN)
- L+R≥560mW+560mW (32Ω, THD+N<1%, USB IN)
- L+R≥78mW+78mW (300Ω, THD+N<1%, USB IN)
- Frequency response - 20Hz~20kHz, damping≤0.1dB
- 20Hz~50kHz, damping≤0.1dB
- THD+N - <0.0004% (-4dB, 32Ω)
- Peak output voltage - ≥4.2V (32Ω, THD+N<1%)
- Output impedance - <1.2Ω
- Crosstalk - ≥113dB (1kHz, 32Ω)
- Noise floor - 3.2uV"A"
- SNR - ≥123dB (32Ω, A-weighted)
Description
The FiiO KA15 DAC & Headphone Amplifier is a compact yet powerful device designed for audiophiles who crave flexibility and superior sound quality. Featuring a ten-band high-precision lossless parametric equalizer (PEQ), the KA15 allows users to fine-tune their audio experience.
With its intuitive control app and web interface, you can easily simulate or correct the frequency response of your headphones. You can also export, import, and share EQ settings with other enthusiasts, making it simple to enjoy custom audio profiles.
Whether you stick to official presets or create your own, the KA15 empowers you to become your own music tuner, ensuring that your listening experience is truly personalized.
Dynamic Power Management
One of the standout features of the FiiO KA15 is its intelligent dynamic power consumption system. Equipped with a high-performance, low-power processor, the KA15 offers real-time monitoring of voltage and current, adjusting power usage based on playback status. This ensures that your phone runs efficiently, conserving battery life during music playback.
For example, if you set a timer for music to play at night, the KA15 will automatically enter an ultra-low power sleep mode once the timer ends, allowing you to wake up to a fully charged device. This thoughtful design element enhances usability, ensuring that you can enjoy music without worrying about draining your phone’s battery.
Enhanced User Interface

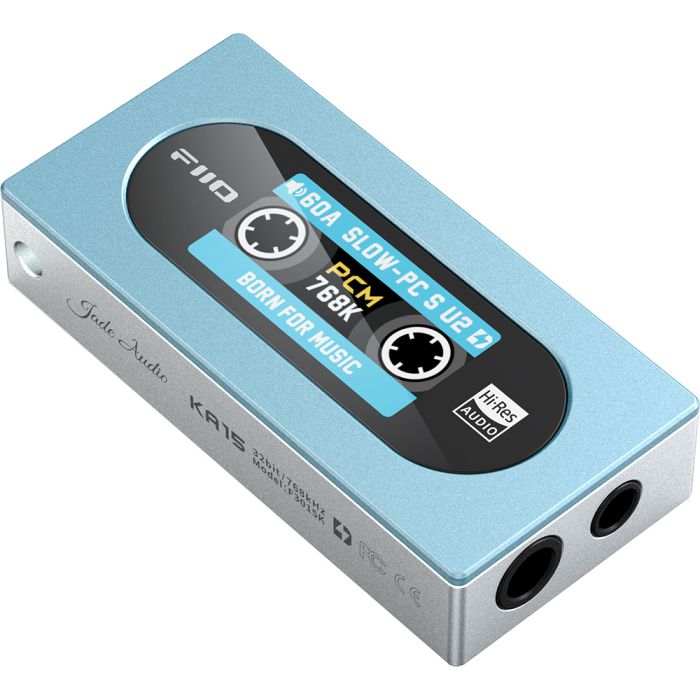

The FiiO KA15 boasts a 0.96-inch IPS true color LCD screen, a first for similar audio dongles, and supports both English and Chinese displays. The user interface is designed for ease of use, featuring a retro dynamic UI that blends classic aesthetics with modern functionality.
The screen displays vital information in a visually engaging manner, including simulated spinning tape graphics that add a touch of nostalgia. This unique combination of design and technology makes navigating settings a delightful experience, allowing you to easily adjust audio parameters, manage playback, and enjoy the visual appeal of the device.
Patented Desktop Mode
When activated, the KA15’s Desktop Mode unleashes a powerful output of 560mW + 560mW, marking a remarkable 207% increase over its predecessor, the KA5. This enhanced power capability means that the KA15 can effectively drive both low and high-impedance headphones, providing an expansive headroom for various listening preferences.
With dual flagship CS43198 DACs and SGM8262 op-amps, the KA15 delivers exceptional sound quality despite its compact size. This innovative design allows users to experience high-fidelity audio without the bulk, making it a remarkable addition to any audio setup.
Comprehensive Control and Compatibility
The KA15 is designed for seamless integration with various devices, supporting high-resolution audio up to 768kHz/32bit and DSD256 sampling rates. Its Hi-Res Audio certification is a testament to its capability to deliver stunning sound quality.
Controlled via the FiiO Control app, users can adjust PEQ settings, channel balance, and other parameters easily. With support for UAC1.0 mode, the KA15 can be connected to gaming consoles like the Switch and PS5 for an immersive gaming experience. Its compatibility with Android, iOS, Windows, and macOS ensures that audiophiles can enjoy their favorite music on multiple platforms without limitations.
Stylish and Functional Design
Crafted from high-quality metal, the FiiO KA15 combines style and functionality in a sleek package. The all-metal body undergoes precision CNC milling, anodizing, and polishing, resulting in a refined texture that feels great in hand. The design effectively reduces external interference, contributing to cleaner sound quality.
Additionally, the 3.5mm jack serves as a SPDIF output, providing further versatility for connecting to external decoders. With chic color options like midnight black and sky blue, the KA15 not only enhances your audio experience but also adds a fashionable touch to your setup. A thoughtfully designed lanyard hole ensures that the KA15 can be easily attached to a lanyard, allowing for stylish portability.
