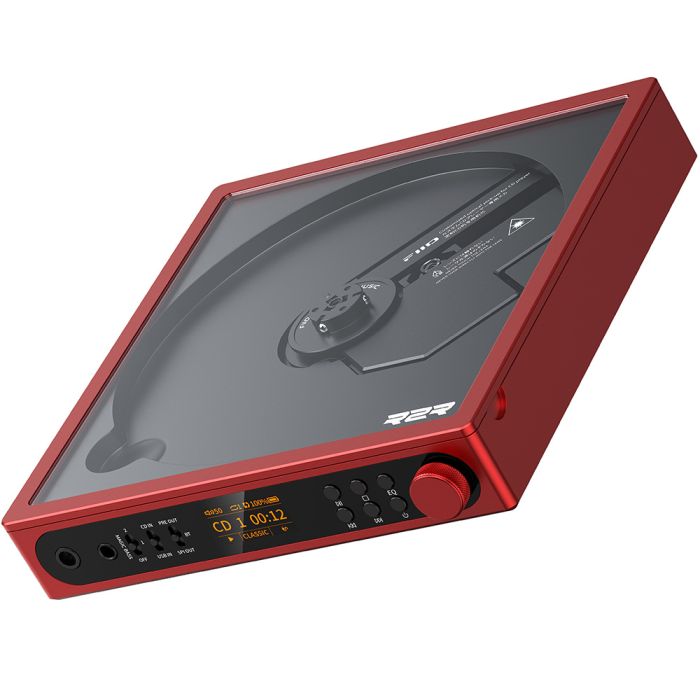

FiiO DM15 R2R CD Player
In stock
Features
| Coaxial Digital Output | No |
|---|---|
| Optical Digital Output | No |
| Includes Pre Amp | No |
| Brand Color | None |
| Includes DAC Digital Inputs | No |
| USB Digital Output | No |
| AES/EBU Digital Output | No |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Remote Control | No |
| Upsampling Feature | No |
| Product Type | Other |
Tech Specs
General
- Model Name: DM15 R2R
- Hardware: Master control GD32F305RET6, Op Amp SGM8262 x2
- DAC: Feiao Self-developed R2R DAC
- Bluetooth: QCC3095
- USB Chip: SPV5048
- Working Modes: CD playback, USB DAC mode, Bluetooth transmitter mode
- Weight: 471.5 g
- Dimensions: 144 x 137 x 25.5 mm
- Volume Control: Button control
- Display: 0.96 inch (80 x 160) LCD
- Custom Bald Head and Movement
- Recommended Headset Impedance: PO 8–350Ω, BAL 8–350Ω
Keys and Interfaces
- Power Key x1
- Stop Key x1
- Play/Pause Key x1
- Previous Track x1
- Next Track x1
- EQ Button x1
- Headphone Output: Standard 3.5 mm
- Linear Output: Standard 3.5 mm
- Coaxial Output: Standard 3.5 mm (multiplexed with LO port)
- Ripple Switch: Input and Output buttons
- BASS Switch x1
- ESP Switch x1
- D.MODE Switch x1
- USB: Type-C USB2.0 x1 (data), Type-C POWER IN x1 (charging/power)
- Balanced Output: Standard 4.4 mm
- Balanced Linear Output: Standard 4.4 mm
- Fiber Output: Standard 3.5 mm (multiplexed with LO port)
Features
- Bluetooth Transmitter: 5.4, supports SBC, aptX, aptX-HD, aptX-LL, aptX-Adaptive
- Operation Mode: Button / Knob
- BASS: OFF / 1 / 2
- Timing Shutdown: Supported
- EQ: 8 Built-in Presets
- Drive-Free Mode: Supported
- Firmware Upgrade: USB / Local
- Maximum Sampling Rates: USB DAC 384 kHz/32bit, DSD256 Native; Coaxial 192 kHz/24bit; Fiber 96 kHz/24bit
Power Parameters
- Power Support: PD2.0 and PD3.0 Fast Charge
- Charging Time: Approximately 2 hours with PD3.0 Fast Charge
Description
The FiiO DM15 R2R CD Player represents the latest culmination of FiiO’s research and development in portable CD technology. Following the DM13, FiiO carefully refined its design based on user feedback to create a slimmer, more versatile device.
Compact yet powerful, the DM15 R2R combines modern functionality with the warm, organic sound quality of classic portable CD players. Its advanced configuration integrates five core pillars, including a CD servo, USB DAC, R2R module, and Bluetooth module, all managed by a microcontroller unit.
The result is a portable CD player that offers simplicity, high build quality, and sophisticated audio performance, delivering a listening experience that surpasses expectations for devices in its class.
Cutting-Edge R2R DAC for Analog Warmth
At the heart of the DM15 R2R is a proprietary four-channel, fully differential 24-bit R2R resistor array DAC. Constructed from 192 precision thin-film resistors with 0.1% accuracy and low temperature drift, this DAC reintroduces the warm and nuanced characteristics of vintage CD players.
The system carefully reproduces midrange richness, dynamic highs, and deep lows, providing an organic and musical sound signature that is distinct among portable CD players.
This sophisticated design allows listeners to experience a lifelike analog feel from digital media, ensuring that every note, instrumental nuance, and vocal timbre is faithfully conveyed with clarity and natural harmonic structure.
Reliable and Enhanced CD Mechanism
The DM15 R2R features a custom-designed CD mechanism optimized for smooth and reliable playback. Building on the advancements of the DM13, the player incorporates a self-rebounding steel ball design for precise disc alignment, making insertion and removal effortless while reducing the risk of scratches.
The servo system ensures accurate tracking and stable rotation, delivering consistent read performance.
Combined with Electronic Shock Protection (ESP), the DM15 R2R maintains uninterrupted playback even during portable use, giving listeners peace of mind whether stationary or on the move. These mechanical innovations provide an exceptional foundation for high-fidelity sound, making it a standout choice for portable CD enthusiasts.
Versatile Connectivity and HiFi-Grade Features
The DM15 R2R functions as a portable CD player, HiFi-grade USB DAC, and Bluetooth transmitter, offering unparalleled versatility. Its USB DAC supports up to 384kHz/32bit and DSD256 for exceptional digital audio reproduction.
Bluetooth 5.4, powered by the Qualcomm QCC3095 chip, supports standard and high-resolution audio codecs including aptX, aptX Adaptive, aptX HD, and SBC. High-quality analog outputs include 3.5mm single-ended and 4.4mm balanced connections, as well as coaxial and optical outputs.
With a premium HD TFT display, intuitive controls, and 24 dynamic sound presets combining EQ and BASS modes, the DM15 R2R allows users to customize their listening experience while maintaining precision and clarity.
Portability, Battery Life, and Build Quality
Designed for portability without sacrificing performance, the DM15 R2R measures just 144mm x 137mm x 25.5mm and weighs only 471.5g. A high-voltage 4700mAh lithium battery provides approximately seven hours of continuous playback, while PD2.0/PD3.0 fast charging ensures quick recharging.
The chassis features an all-aluminium alloy construction with a transparent tempered glass lid and front panel, offering durability and a premium tactile feel.
Mechanical buttons, knobs, and keys provide responsive, tactile control, enhancing the overall user experience. Available in multiple colours, including white, silver, black, and red, the DM15 R2R combines portable convenience with robust design and an elegant aesthetic suitable for any setting.
