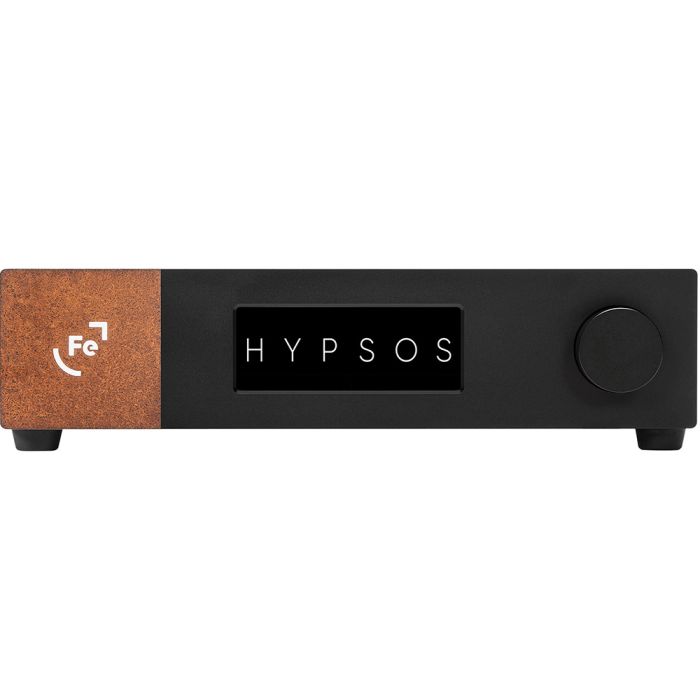

Ferrum Audio Hypsos Power Supply Upgrade
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
Power input:
- 100-240Vac/50-60Hz (EU/US)
- 90 – 110Vac/50-60Hz (JP)
- IEC C14 power inlet
- Two-stage EMI filter for low impedance load
- Mains cable: US/EU/UK
DC Out:
- 5 x 2.5mm DC plug
- 5 x 2.1mm DC plug
- Custom cables made to order at extra cost
- Output Voltage Range: 5-30 [V]
Max Cont Output Current
- Below 10V: 6 [A]
- Higher than 10V: l out=60W/DC out
Max Cont Output Power
- Below 10V: P out=V out * 6[A]
- Higher than 10V: 60W
General
- Main winding fuse: IEC 5x20mm fuse, 3.15AT, 250V
- Secondary winding fuse: Littefuse 154004T, 4A
- Power consumption: 230VAC, 50Hz @ 12VDC
- Idle: 6/30.7VA @ 15W/60W load – 98VA
- Dimensions (WDH): 217.5 x 206.5 x 50mm
- Net weight: ~ 2,8Kg / ~ 6.2Ib
Description
Ferrum Audio Hypsos is a hybrid power supply upgrade that combines the best features of both linear and switching power supplies to deliver efficient power. The Hypsos is designed to deliver the cleanest possible power supply allowing your equipment to perform at its very best.
Why the Hypsos?
Ferrum Hypsos uses a hybrid power system, a combination of linear and switching designs, to get the advantages from each technique, which is low-ripple and low-noise as well as a fast transient response and high efficiency. It offers a selection of unique features and even accounts for future software improvements.
Simple and Stylish
Housed in a minimalistic sleek black unit with hardly any hardware user controls, only a display screen and one knob; the device is mainly software controlled and is as impressive in its design as in its performance.
Compatibility
The Hypsos is compatible with a vast array of equipment, such as the Apple Remote, and by using pre-configured settings from the list of supported devices or setting parameters manually you can get your system up and running in no time. The HYPSOS is as universal a device as it gets. View Ferrum's list of compatible models
Customisable sound
The Hypsos allows for full customisation of your sound. SST (Sweet Spot Tuning) allows you to fine-tune the output voltage for the best sound; it can even be adjusted on the fly to provide comparison testing. It also has a settings lock to prevent accidental changes of the parameters.
Hypsos Cables
Ferrum Audio Hypsos has a cable design called 4T Sensing Design (4TSD), which comprises of two wires delivering the power and two wires providing feedback to ensure a flat voltage at every moment. This technique eliminates the harmful effects of the cable's resistance, effectively improving transient response. The current delivery speed at the powered device's input is significantly improved.
Configuration Options
The Hypsos comes with two DC power cables, a 5.5 x 2.5mm and a 5.5 x 2.1mm DC cord, which connects to most commonly used DC inlets.
Version Options
From October 2024 onward the Hypsos is available in two versions – the standard version as was available before, with a single power output that can power a single device at once – or you can use the splitter (available separately) at a later date to power two devices. Also available now is the Dual version with two outputs, allowing you to power two devices directly from the Hypsos without the need for the splitter
