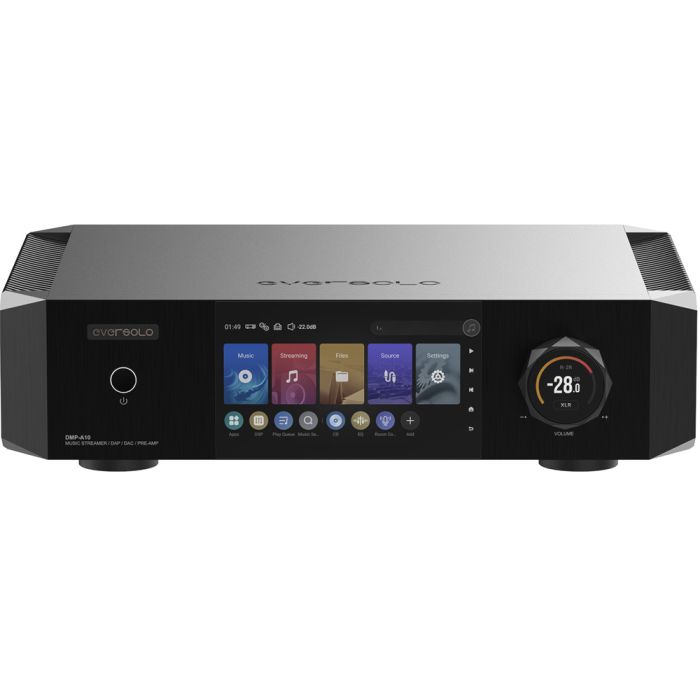

EverSolo DMP-A10 Streamer & DAC
In stock
Available - Usually ships within 2-3 days
Features
| Digital Optical Input | No |
|---|---|
| Preamp Output | No |
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 1 Year |
| Product Type | Other |
Tech Specs
DMP Specifications
- Product type - Streamer & DAC
- Touch screen - 6,5″ LCD Full HD
- RAM - 4Go DDR4
- ROM - 64Go eMMC
- DAC - ES9039 PRO
- USB interface - XMOS XU316
- AOP - OPA1612
- Power supply - Dual low-noise linear + digital power supplies
- SSD support - 2x M.0 NVME 3.0 protocol 2280 up to 4TB (SSD sold separately)
- Inputs - 1x Ethernet RJ45 (10/100/1000Mbps)
- 1x SFP Fiber Network port*
- 1x Balanced XLR
- 1x Single-ended RCA
- 1x HDMI ARC
- 2x SPDIF Coaxial
- 1x USB-B
- 2x Optical Toslink
- 1x BT 5.0, supports SBC/AAC
- *SFP modules need to be purchased separately; Supports single-mode single-fiber, single-mode dual-fiber optical modules, as well as SFP electrical port modules
Outputs
- 1x Balanced XLR
- 1x Single-ended RCA
- 1x SPDIF Coaxial
- 1x Optical Toslink
- 2x USB-A
- 2x Subwoofer output
- 12V trigger - In & Output
- Wireless coinnectivity - 2.4G+5G dual-band WiFi
- BT 5.0, supports SBC/AAC
- Suppported sample rates - USB / I2S: PCM up to 32bit 768kHz, DSD up to DSD512
- Optical / Coaxial: PCM up to 24bit 192kHz, DSD DoP64
- HDMI ARC: PCM up to 24bit 192kHz
- Supported streaming services - Tidal
- Qobuz
- Amazon Music
- Deezer
- Apple Music
- Highresaudio
- Paradise Radio
- Supported transmission protocols - WebDAV
- UPnP
- AirPlay
- DLNA
- Tidal Connect
- Roon Ready
…
- Supported Bluetooth Codecs - SBC
- AAC
- aptX
- aptX HD
- aptX LL
- LDAC
- Compatible OS (USB) - Windows 10 / 11
- Android
- iOS
- Analog Audio Characteristics
- Output level - XLR 4.2 V; RCA 2.1V
- Frequency response - 20Hz~20KHz XLR/RCA (土0. 15dB)
- THD+N - 0.000078%(-122dB), RCA :0.00009%(-121dB)
- Crosstalk - XLR;-123dB, RCA;-122dB
- Dynamic range - XLR; 130dB, RCA; 129dB
- SNR - XLR;-123dB, RCA;-122dB
- General
- Power supply - 110-240VAC 50/60Hz
- Power consumption - 30W
- Dimensions - W430mm*L310mm*H117mm
- Color - Black
- Package - DMP-A10*1
- Remote control*1
- power cable*1
- product manual *1
- trigger cable*1
Description
The EverSolo DMP-A10 Streamer & DAC offers high-quality audio performance in a compact design. It integrates modern technology with a user-friendly interface. The DMP-A10 uses a high-speed electrical isolation system to reduce noise. This feature ensures clear audio signals. The display panel includes specialized shielding to enhance sound clarity.
USB Audio Isolation
This device incorporates advanced electrical isolation to minimize interference. Using iCoupler® technology, it improves data transmission accuracy. This reduces jitter, resulting in high-fidelity audio playback.
Subwoofer Integration
The DMP-A10 has two subwoofer output ports. You can connect one or two subwoofers, or disable this function as needed. Easily switch between MIXER and STEREO modes. Adjust subwoofer gain, crossover frequency, and delay independently.
Precision Timing
Equipped with OCXO clock technology, the DMP-A10 maintains a stable temperature for audio crystal oscillators. This reduces frequency fluctuations and minimizes phase noise. Jitter levels remain below 50fs for a detailed audio experience.
Fiber Network Connectivity
The DMP-A10 features an SFP Fiber port for fiber optic connections. This setup reduces electrical interference, improving audio quality. Traditional RJ45 Ethernet connections are also supported.
Global Music Search
EverSolo's Global Music Search is a useful feature that allows searching for music across multiple music platforms with a single search.
