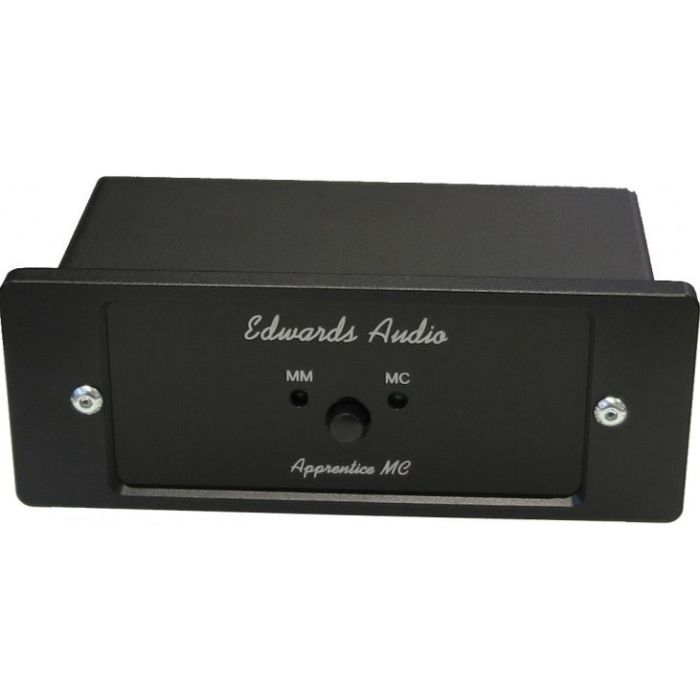

Edwards Audio Apprentice MC EQ Phono Stage
In stock
Available - Usually ships within 2-3 days
Features
| MC input | No |
|---|---|
| MM Input | No |
| Adjustable Gain | No |
| Brand Color | None |
| Adjustable Impedance | No |
| Warranty The length of time your product is protected by warranty | 2 Years (10 Years on registration) |
| Product Type | Other |
Tech Specs
- Max Input MM: 75mV
- Gain: 40dB MM
- THD: <0.01% 1kHz
- SNR (MM) 5mV: -83dB
- RIAA accuracy: within 0.5dB
- Stereo separation: better than 66dB - 20-20kHz
- Input Loading MM: 47K with 150pF
- Dynamic Range: 110dB
- Output impedance: <10 Ohms
- Max output level: 7.5V RMS
- Dimensions (W x H x D): 4.5"x1.9"x3.5"
- Weight: 1 kg
- Power consumption: 1.5W
Description
Edwards Audio Apprentice EQ MC Phono Stage adapts the earlier Edwards Audio MM1 model in a new and improved design while retaining its predecessor's passive treble and active bass equalisation.
This high-performing model punches well above its weight by utilising a second stage amplifier to buffer the equalisation network and to ensure a low output impedance. Alongside this, the MC gain uses a third separate op-amp.
Sleek Construction, Intuitive Design
The Apprentice EQ MC phono stage is designed to be partnered with the brand's bespoke single rail DC regulated switch mode power supply. As a result, the requirement for expensive extrusion has been eliminated. A sleek 3mm black acrylic front panel and a 5mm machined aluminium frame completes the aesthetic of the model. In the front panel switch you will find MM or MC selection.
Sublime Sound Performance
The model delivers a near silent noise floor and 42dB gain in MM mode or 63dB gain in MC mode, so you can expect an audiophile level sound performance.
