Dali SUB E-12 F Subwoofer
In stock
Features
| Subwoofer Type | Active |
|---|---|
| High Level Input | No |
| RMS Output | 170 Watts |
| Shape | Square |
| Warranty The length of time your product is protected by warranty | 2 Years |
Tech Specs
Performance:
Freq Range: (+/-3dB) 28-190Hz
LF drive: 1 x 12" long stroke
Diaphragm: Polymere Aluminimum
Enclosure type: Bass Reflex
Bass Reflex Tuning: 36.0Hz
Maximum SPL: 112dB
Connections
Input Impedance: 25kohms
LFE Input: Mono Line Level
Inputs: RCA, Stereo Line Level
Magnetic Shielding: No
Recommended Placement: Floor
Rec Distance From Wall: > 5cm
Functions
Crossover Frequency: 40 - 120Hz
Phase, Standby, On/Off, Vol (Gain)
Power
Max Amp Power Out: 220 RMS watt
Max Power Consumption: 250 W
Continous IEC: 170 RMS watt
General:
Manual, Rubber Bumpers, Spikes M6
Dimensions (HWD): 370 x 340 x 380mm
Weight: 14.7Kg
Description

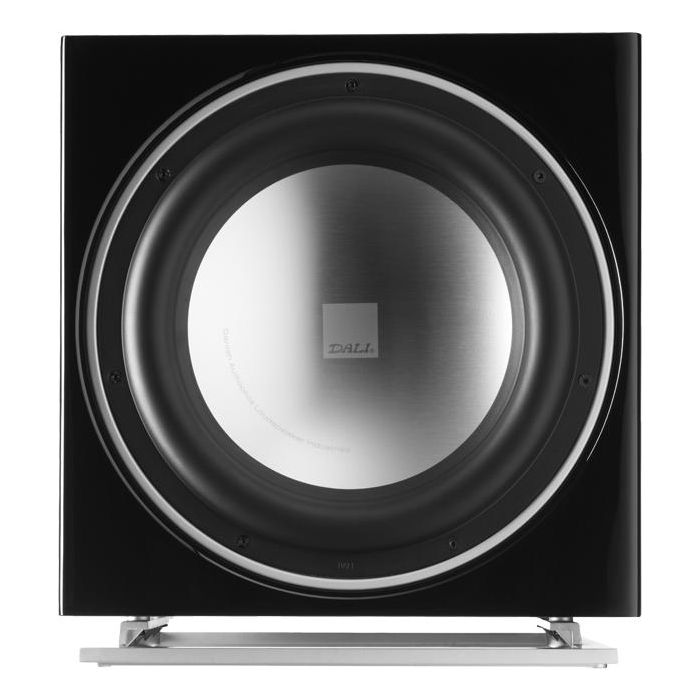

Dali SUB E-12 F subwoofer marks a new stage of what's possible from a subwoofer at this level - available in a beautifully finished black satin or white satin (walnut is no longer available). This model features a high performance 12" aluminium cone for maximum rigidity, capable of making sound with power and precision - it also looks the part too with the grille off (itself attached by magnets). When off, the appearance changes from discreet to extravagent!
Along with the quality of the driver, a heavy duty magnet wields a massive 4-layer, long-stroke voice coil with a heavy duty motor system, the E-12 F is more than capable of ensuring your music and movie soundtracks sound stunning.
The heart of this subwoofer is a 170W RMS Class D amplifier with a highly linear response. Embracing a classic Dali trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.
The back plate of SUB E-12F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.
SUB E-12F is elevated from the floor by an aluminium base, while a down-firing bass port allows positioning directly against the wall. The front grille is mounted by magnets only, and when removed, the visual appearance changes from discreet to extravagant as the pure aluminium cone is revealed.
