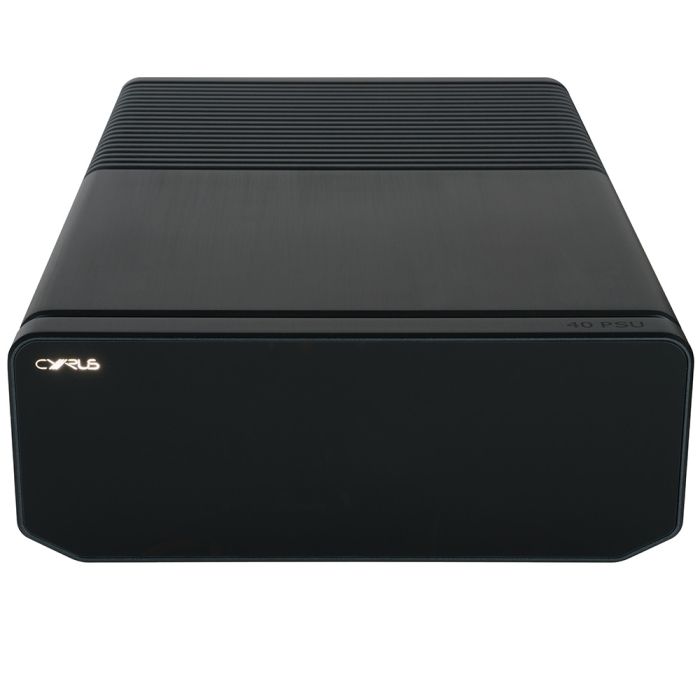

Cyrus 40 PSU External Power Supply Upgrade
In stock
This is a click and collect item. It can not be shipped. Due to agreement with the manufacturer, it has to be collected from our Birmingham UK showroom or installed in person by one of our team. Continuing to order this item through the basket is acceptance you agree to this and we will contact you to arrange following your order.
Available. To discuss, call 0121 224 7300/7401
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- Low voltage supply - Standby mode +5V DC
- Low voltage supply - Operational +5V DC
- Fixed voltage supply - Standby mode 0V
- Fixed voltage supply - Operational +24V DC
- Variable supply - Standby mode 0V
- Variable supply - Regulated +10V to +45V DC
- Variable supply - Unregulated +45V or +56V DC
- RJ45 Ethernet For Firmware Updates
- Mini USB For Firmware Updates
- Size (H x W x D) 88 x 220 x 365 mm
(3.46” x 8.66” x 14.37”)
- Weight 9.4kg (21lbs)
- EAN 230V 5060020434877
- EAN 115V 5060020434860
- 5 Year Warranty
Description
The Cyrus 40 PSU External Power Supply Upgrade can be used for any of the Cyrus 40 Series devices. This includes the integrated amplifier, CD player, and streamer. The PSU upgrade is microprocessor-controlled and provides the optimal output for each device. It also keeps any possible source of interference away from the connected unit. As a result, the audio background is whisper quiet.
Intelligent PSU
Cyrus has been building external power supplies for a long time and the Cyrus 40 PSU External Power Supply Upgrade is the culmination of many years of development. The unit communicates with the connected device to provide the optimum supply voltages. This maintains the best configuration at all times.
Multipin connector
The multipin connector feeds multiple supplies to the connected device. These are digitally controlled internally. The Cyrus 40 PSU External Power Supply Upgrade unit is very stable and well-shielded. As an upgrade, it removes any possible source of interference as the internal PSU of the connected unit is shut down when connected.
What does a PSU do?
A power supply provides a wide range of different voltages for the various stages of audio devices. For example, the Cyrus 40 CD player has nine separate regulators. Digital and analogue stages need their own power feeds to prevent mutual interference. Moreover, the PSU itself can emit noise. Hence it is best to keep it away from other units.
There are also two methods of converting the mains into a lower voltage. Linear and switching. Linear systems use standard transformers, normally toroidal types that have a lower magnetic field. These have the lowest output noise. On the other hand Switching supplies use a smaller transformer and are more efficient but can emit high frequency noise.
