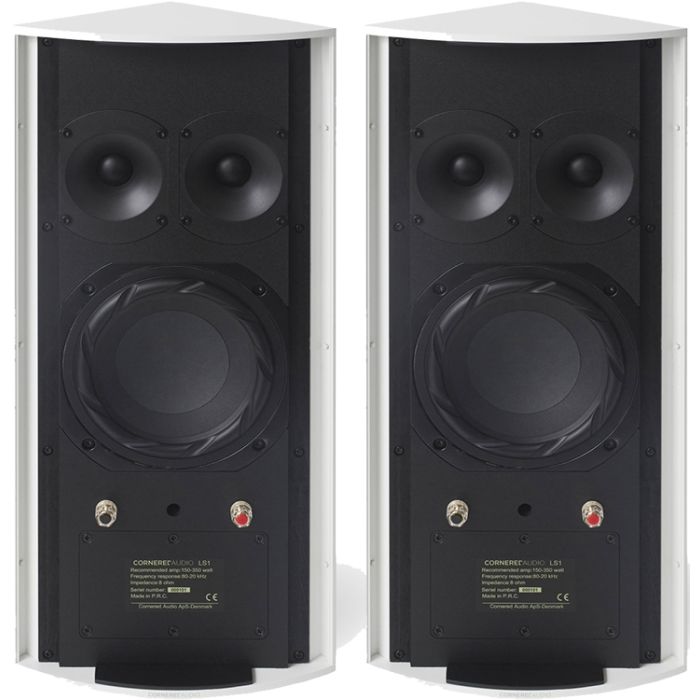

Cornered Audio LS1 Corner Speakers (Single)
In stock
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 3 Years |
| Product Type | Other |
Tech Specs
- Power handling, IEC268: 250W
- Power handling, peak: 1000W
- Sensitivity (2.83V/1m): 92dB
- Maximum SPL long term: 116dB
- Maximum SPL peak: 122 dB
- Frequency response: 70-20k Hz
- Nominal impedance: 8 ohm
- Measurement: 502 x 232 x 167mm
- Weight: 6.4 kg
Description
Cornered Audio LS1 Corner Speakers is an ultra-compact speaker designed to be flown horizontally in compact Line Source applications. Flying up to 6 pcs per side, the LS1 speakers are designed for medium to high SPL applications in Theatres, Hotel Lobbies, Conference rooms and high SPL entertainment venues.
Construction
Flying 2 boxes will give a coverage of 90×50 degree, 4 boxes 90×40 degree and 6 boxes 90×30 degree. An array of 2×6 pieces will deliver 105 dB in 30 meters in pure hi-fi sound quality. Line Source speakers weigh less than 7 kg per speaker and offer very high SPL-to-weight and SPL-to-size ratio.
Drive units in the LS1 have been designed by the finest European manufacturers. The 6.5″ woofer of our Line Source speaker system features a strong neodymium magnet with state-of-the art-cooling and less than 1,8 dB power compression after 8 hours of maximum SPL.
Dome Tweeter
The closely spaced 1″ horn-loaded dome tweeter in the LS1 offers excellent sensitivity and combines the output of a horn-loaded design with the clarity of a dome tweeter. The extruded aluminium cabinet is well dampened and the triangular shape minimises standing waves inside the cabinet. LS1 speakers offer quality sound reproduction for applications where top performance is a must.
