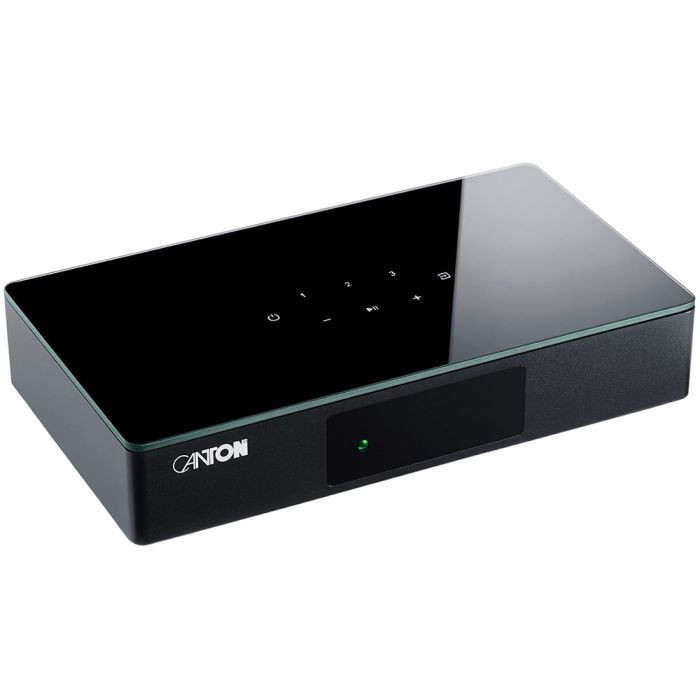

Canton Smart Connect 5.1 S2 Multi Room Streamer
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
- Weight - 1.23 kg
- Packing dimensions - 33 x 10.5 x 21.5 cm
- Packing weight - 1.76 kg
- Dimensions (WxHxD) - 24.5 x 5.2 x 14 cm (9.7" x 2" x 5.5")
- Standby (Eco) - < 0.47 / 1.94 / 7.2 / 7.8 / 5.3
- Input sensitivity/impedance 1kHz, 100W/4Ω - 310 mVrms / 47 kΩ
- Max input signal analogue input 1kHz, 1% THD - 3.2 Vrms
- Frequency response 10-450,000 Hz - +0 / -1 dB
- THD+N 1kHz, 1Vrms - 0.003%
- Nominal output level - 1 Vrms / 600 Ω
- Max output level - 3.4 Vrms
- Max reinforcement - 17 dB
- Signal to noise ratio - 101 dB
- Channel separation (1kHz) - 93 dB
- S/PDIF audio formats - Dolby Digital, DTS Digital Surround, PCM 2-channel 24 Bit / 192 kHz
- Cabinet material - Aluminium
- Used radio frequencies - 521 = 5180 MHz, 522 = 5210 MHz
- RF bandwidth - 22 MHz
- Max transmitting power - 7.9 mW (+9 dBm)
- Connections - 3x Input (4K, 3D, HDR, HDCP 2.2, CEC), 1x Output (eARC, 4K, 3D, HDR, CEC)
- Optical input - 1x S/PDIF TOSLINK
- Coaxial input - 2x S/PDIF RCA (Cinch)
- Analogue input - 1 (Stereo) RCA (Cinch)
- Analogue outputs - 6 RCA (Cinch)
- USB - USB A (Service)
- Bluetooth standard - 4.1
- Bluetooth profile - A2DP 1.2, AVRCP 1.3
- Bluetooth max transmission power - 10 mW (+10 dBm)
- Network - 100 Base-TX / 10 Base-T (RJ45)
- Net - IEC C8 (100-240V~, 50/60Hz, max 10 W)
- HDMI audio formats - Dolby Atmos, DTS-HD, Dolby True HD, DTS-HD Master Audio, DTS-HD HRA, Dolby Digital Plus, DTS Express, Dolby Digital, DTS Digital Surround, PCM (2-8 Channels, 8-24 Bit, 44.1-192 kHz)
- Supported video formats - 640x480/60 Hz, 720x480/60 Hz, 720x576/50 Hz, 800x600/60 Hz, 1024x768/60 Hz, 1280x720/50, 60 Hz, 1280x1024/60 Hz, 1920x1080/24, 30, 50, 60 Hz, 1920x1200/60 Hz, 3840x2160/24, 25, 30, 50, 60 Hz
- HDMI standard / copy protection - HDMI 2.0b / HDCP 2.2
- Other HDMI features - 3D up to 1080p, xvYCC, Deep Colour
- Supported HDR - HDR10
- WLAN standard - IEEE 802.11 a/b/g/n/ac
- Available security method - WEP, WPA2-PSK (AES)
- WLAN setup - Google Home App, Apple Airplay2
- Supported streaming protocols - Chromecast built-in for Audio, Spotify Connect, UPnP, Airplay2
- Supported file formats - MP3, HE-AAC, LC-AAC, OGG, WAV (LPCM), FLAC
- WLAN max transmitting power - 63 mW (+18 dBm)
- Dolby Atmos licensed - Yes
- Virtual Atmos - Yes
- Operation possible on the unit - Yes
- Sound settings can be saved to presets - Yes
- Saving of playlists to presets possible - Yes
- Volume adjustment per speaker - Yes
- Setting the listening level per speaker - Yes
- Voice function (for better voice reproduction in stereo & surround) - Yes
- Equalizer (adaptation to spatial conditions) - Yes
- Virtualizer - Dolby Surround
- Bass adjustment - ±6 dB
- Midrange adjustment - ±6 dB
- Tweeter adjustment - ±6 dB
- Integrated bass management - Yes
- Adjustable phase adjustment of the subwoofer - Yes
- Dynamic range control (setting the dynamic range) - Yes
- Sleep timer (setting the switch-off time) - Yes
- IR learning function (controllable with TV / system remote control) - Yes
- Input-direct selection (ideal for system remote controls) - Yes
- Automatic switch on and off - Yes
- Configuration of the inputs (input renaming) - Yes
- LipSync function (for exact speech synchronisation) - Yes
- System volume (setting the maximum level) - Yes
- Restore factory settings (reset function) - Yes
- Wireless speaker pairing - Yes
- Bluetooth select (selects BT input automatically) - Yes
- Autoplay function (automatic Bluetooth playback) - Yes
- Max number of pairable wireless speakers - 8
Description
The Canton Smart Connect 5.1 S2 Multi Room Streamer is the ultimate hub for modern audio and home cinema systems. Designed as a high-resolution HiFi streamer and preamplifier, it supports Dolby Atmos® and DTS-HD, offering immersive three-dimensional sound. With six active channels and the ability to connect up to eight wireless Canton Smart speakers, this system ensures a fully synchronized multi-room audio experience.
Equipped with Google Cast, Spotify Connect, and Apple AirPlay 2, it provides effortless streaming from smartphones or tablets. The sleek, black silk matt design complements any living environment, while the advanced DSP and digital sound optimization deliver high-quality audio with exceptional clarity, dynamic range, and room-filling performance. The Smart Connect 5.1 S2 transforms a simple listening setup into a sophisticated and flexible audio network.
Flexible Home Theater Integration
The Smart Connect 5.1 S2 serves as a versatile interface for both existing stereo amplifiers and active loudspeakers, making it ideal for building a high-end home cinema system. With four 4K-compatible HDMI connections including eARC, it easily connects to TVs, gaming consoles, Blu-ray players, and other playback devices.
The preamplifier supports multi-channel formats, allowing a 7.1.4 configuration with virtual Dolby Atmos® and DTS HD for fully immersive audio. It can also operate as a DAC for conventional stereo systems, bringing high-resolution sound to existing equipment.
Through the Canton Smart app, remote control, or on-screen TV display, users can customize speaker layouts, adjust EQ settings, and configure multi-room playback, making the Smart Connect 5.1 S2 a flexible solution for a wide variety of listening environments.
High-Resolution Wireless Streaming
The Smart Connect 5.1 S2 enables lossless high-resolution transmission up to 24-bit/96 kHz, ensuring pristine audio quality. It can connect six active speakers or power amplifiers and up to eight Canton Smart wireless speakers in a single setup, allowing for a versatile combination of wired and wireless configurations.
The built-in DSP supports stereo and multi-channel playback, creating accurate sound imaging and dynamic range for music and film. Multi-room streaming allows playback across several rooms simultaneously, fully synchronized for consistent listening experiences.
The system can be expanded step by step, making it compatible with both small setups and full-scale home cinema environments. This flexibility and sound quality make it ideal for audiophiles seeking a high-performance, adaptable solution.
Centralized Control and Easy Operation
The Smart Connect 5.1 S2 puts complete control at your fingertips. It can be operated via the Canton Smart app, on-screen TV display, or included remote control. Voice commands are also possible using Siri or Google Assistant on external devices, enabling hands-free operation.
Users can start or pause playback, adjust volume, switch between sources, or control the entire multi-room system with a single touch or command. The system is compatible with a wide range of streaming services, including Spotify, Chromecast, and AirPlay 2, making it easy to access favorite music, radio, or podcasts from any device.
This combination of convenience, flexibility, and compatibility ensures that the Smart Connect 5.1 S2 provides an intuitive and modern user experience.
Expandable and Future-Ready
The Canton Smart Connect 5.1 S2 is designed to grow with your audio needs. It seamlessly integrates with Canton Smart speakers, allowing the creation of a full home theater system with wireless surround sound or a multi-room audio setup. Existing stereo amplifiers can be incorporated to receive high-resolution streaming and virtual 3D sound, providing a new lease on life for older equipment.
The system also supports HDMI eARC connections for direct TV integration and can manage a variety of playback devices, from CD players to gaming consoles. Whether used as a stereo hub, a home cinema preamplifier, or a multi-room controller, the Smart Connect 5.1 S2 ensures the highest level of performance, connectivity, and versatility for years to come.
