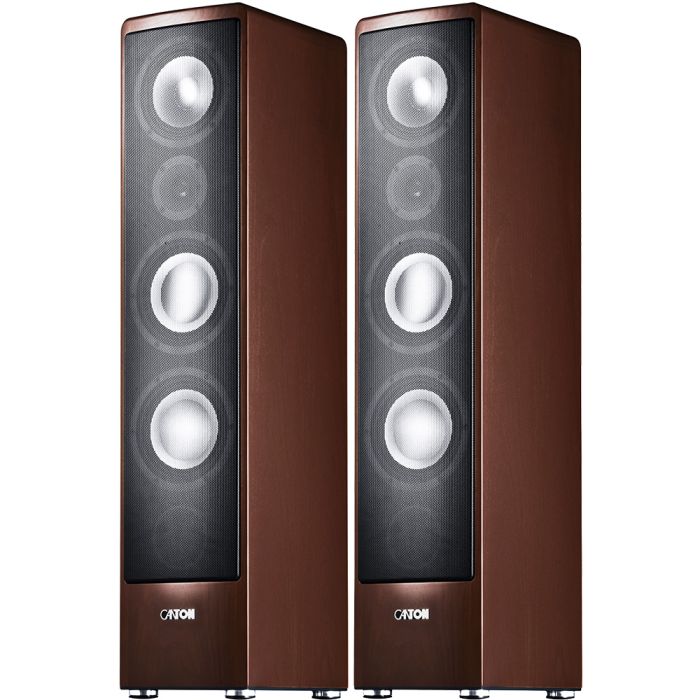

Canton Ergo 690 DC Speakers (Pair)
In stock
Features
| Removable Grilles | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 5 Years |
| Product Type | Other |
Tech Specs
- Weight - 24 kg
- Packing dimensions - 117 x 46 x 35 cm
- Packing weight - 28 kg
- Dimensions (W x H x D) - 23 x 105 x 30.5 cm / 9.1" x 41.3" x 12"
- Acoustic principle - 3-way bass reflex
- Principle passive resonator - Bass reflex
- Radiation direction resonator - Frontfire
- Tweeter quantity - 1
- Tweeter size - 25 mm
- Tweeter material - Aluminium-manganese
- Midrange driver quantity - 1
- Midrange driver size - 174 mm
- Midrange driver material - Aluminium
- Woofer quantity - 2
- Woofer size - 192 mm
- Woofer material - Aluminium
- Nominal load capacity - 170 watts
- Music load capacity - 320 watts
- Transmission range - 20–40,000 Hz
- Crossover frequencies - 300 / 3,500 Hz
- Impedance - 4–8 ohms
- Efficiency 2.83V/1m - 88.3 dB
- Woofer wave surround - Yes
- Midrange wave bead - Yes
- Front cover material - Aluminum
- Transmission front plate - Yes
- DC switch technology - Yes
- Unit socket included - Yes
- Size supplement (W x D x H) - xx1 cm
- Unit feet - Yes
- Bi-wiring / amping terminal - Yes
- Cabinet surface - Real wood veneer
- Terminal contact material - Gold-plated
- Mounting type front cover - Plugged
- Terminal banana plug suitable - Yes
Description
The Canton Ergo 690 DC Speakers (Pair) represent the enduring spirit of classic hi-fi design, offering timeless elegance and uncompromising performance. As part of Canton's longest-standing and most iconic speaker series, the Ergo 690 DC continues to embody the company’s commitment to superior craftsmanship and exceptional sound quality.
These three-way bass reflex floorstanding speakers combine the warmth of traditional materials with cutting-edge acoustic engineering. Their refined real wood veneer, solid construction, and aluminium front panels create a sophisticated presence in any living space.
With 320 watts of power handling, a balanced tonal character, and compatibility with a wide range of musical genres, the Ergo 690 DC delivers an authentic, full-bodied sound experience that remains faithful to the original performance.
Advanced Acoustic Engineering
Behind its timeless exterior, the Ergo 690 DC is built upon decades of acoustic innovation. Each speaker features a carefully tuned three-way system that includes dual 192 mm aluminium woofers, a dedicated 174 mm midrange driver, and a 25 mm aluminium-manganese dome tweeter.
These precision-engineered components work in harmony to produce clear, dynamic, and detailed sound across all frequencies. Canton's proprietary DC technology eliminates unwanted low-frequency distortion, ensuring deep and controlled bass even at high volumes. The rigid internal bracing and strategically positioned damping materials minimise cabinet resonance, enhancing tonal purity and spatial depth.
This meticulous construction allows the Ergo 690 DC to deliver an accurate soundstage with impressive dynamics, making it equally adept at reproducing delicate acoustic music or powerful orchestral scores.
Meticulous German Craftsmanship
Each Canton Ergo 690 DC Speaker is meticulously handcrafted in Weilrod, Germany, where Canton’s skilled technicians oversee every detail of production. The process combines traditional craftsmanship with state-of-the-art engineering to achieve the brand’s renowned precision and quality standards.
Every cabinet is assembled, sanded, and finished by hand using premium veneers available in Cherry, Wenge, or Ash. These natural wood finishes lend warmth and individuality to each pair, while the brushed aluminium front panels add a contemporary accent. The speakers are fitted with an elegant, removable aluminium grille that protects the drivers without compromising acoustic transparency.
This attention to material selection and finishing ensures that every Ergo 690 DC is not only an exceptional performer but also a lasting piece of craftsmanship designed to complement any home interior.
Precision Connectivity and Versatility
The Ergo 690 DC Speakers are designed for flexibility and precision in high-end audio setups. Their front-firing bass reflex ports allow easy placement near walls or in free-standing positions without compromising performance. Gold-plated screw terminals ensure secure and efficient signal transmission, while the option for bi-wiring and bi-amping enables separate control of the high, mid, and low frequencies for enhanced clarity and power handling.
The result is a versatile system that adapts to various amplification setups and listening preferences. Whether integrated into a traditional stereo configuration or a modern high-resolution system, the Ergo 690 DC maintains exceptional sonic accuracy. Every note and instrument is reproduced with stunning realism, providing an immersive and emotionally engaging listening experience for discerning audiophiles.
Timeless Sound, Lasting Performance
With its combination of classic design and advanced acoustic engineering, the Canton Ergo 690 DC Speakers continue to uphold the legacy of one of the most respected names in hi-fi audio. Their three-way construction, superior component quality, and German manufacturing excellence ensure performance that endures both sonically and aesthetically.
From the clarity of vocals to the depth of low-end resonance, every musical detail is faithfully reproduced with precision and balance. The Ergo 690 DC exemplifies what Canton has stood for since its founding: authenticity, craftsmanship, and the pursuit of perfect sound. Elegant, powerful, and enduring, these speakers are a statement piece for any music lover seeking to experience true high-fidelity performance at home.
