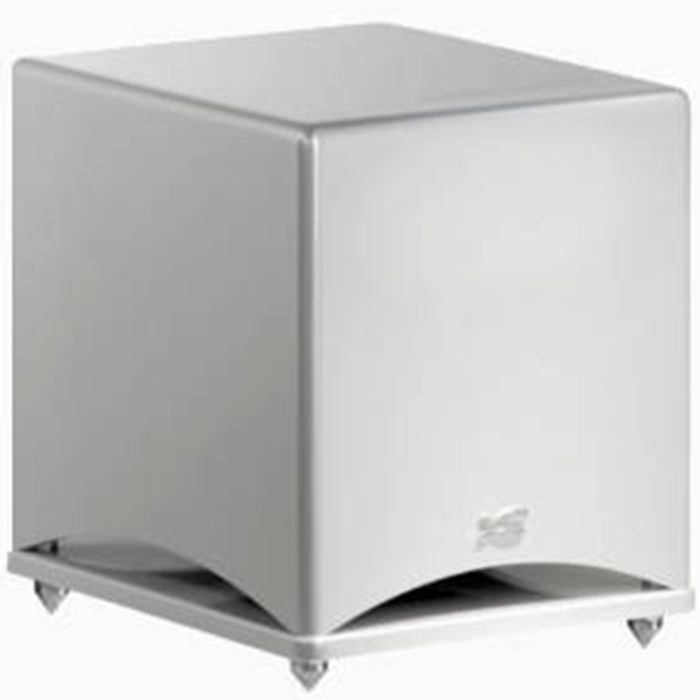

Cabasse Santorin 30-200 Subwoofer
In stock
Features
| High Level Input | No |
|---|---|
| Brand Color | None |
| Warranty The length of time your product is protected by warranty | 2 Years |
| Product Type | Other |
Tech Specs
Sound
- Way - 1
- Drivers - 1 × 30 cm 30ND40 honeycomb membrane
- Low pass filter adjustment - 40 – 180 Hz
- Phase adjustment - 0° to 180°
- Frequency response - 29 – 180 Hz
- Max SPL level - 104 dB
- Nominal power - 200 W
- Peak power - 400 W
- Use - Floorstanding
Dimensions
- Size (W × H × D) - 43.5 × 37 × 46 cm
- Weight - 25 kg
Description
The Cabasse Santorin 30-200 Subwoofer delivers deep, musical bass using acoustic technologies developed directly from the renowned La Sphère flagship system. Despite its compact amplifier, this subwoofer reproduces low frequencies with remarkable richness and accuracy, making it ideal for both music and home cinema. The dynamic output is powerful yet controlled, offering impactful bass that enhances any listening experience.
Thanks to its carefully engineered design, the Santorin 30-200 integrates seamlessly with other speakers, delivering a coherent and immersive soundstage. Whether placed in a stereo setup or paired with multi-channel systems, this subwoofer elevates the overall audio performance, adding depth, energy, and clarity without overwhelming the midrange or higher frequencies.
30 cm Honeycomb Membrane for Precision
At the heart of the Santorin 30-200 is a 30 cm woofer featuring a honeycomb membrane, designed for long excursion without deformation or distortion. This structure allows the subwoofer to handle high sound pressure levels while maintaining tonal purity across a wide frequency range. The long voice coil, Kapton former, and powerful magnetic assembly ensure efficient power handling and responsiveness, delivering bass that is precise, detailed, and full-bodied.
The design supports both subtle musical nuances and dynamic cinematic effects, providing a consistently accurate low-end foundation. This careful engineering ensures that every note, from the deepest sub-bass to mid-bass textures, is reproduced with clarity, energy, and realism, making the Santorin 30-200 a versatile companion for high-fidelity audio systems.
Down-Firing 360° Vertical Port and Specifications
The Santorin 30-200 Subwoofer employs a 360° vertical down-firing vent, replacing traditional horizontal ports to deliver purer, deeper, and more dynamic bass. This design filters vent noise, reduces standing wave effects, and minimizes dependency on wall placement, allowing flexible positioning in any room.
With a frequency response of 29–180 Hz, a low-pass filter adjustable from 40–180 Hz, and a phase adjustment of 0° to 180°, it offers precise integration with any speaker system. Rated at 200 W nominal power with 400 W peak capacity and a maximum SPL of 104 dB, the floorstanding Santorin 30-200 is compact yet powerful, measuring 43.5 x 37 x 46 cm and weighing 25 kg. Its combination of efficiency, depth, and dynamic control makes it an essential component for immersive audio experiences.
