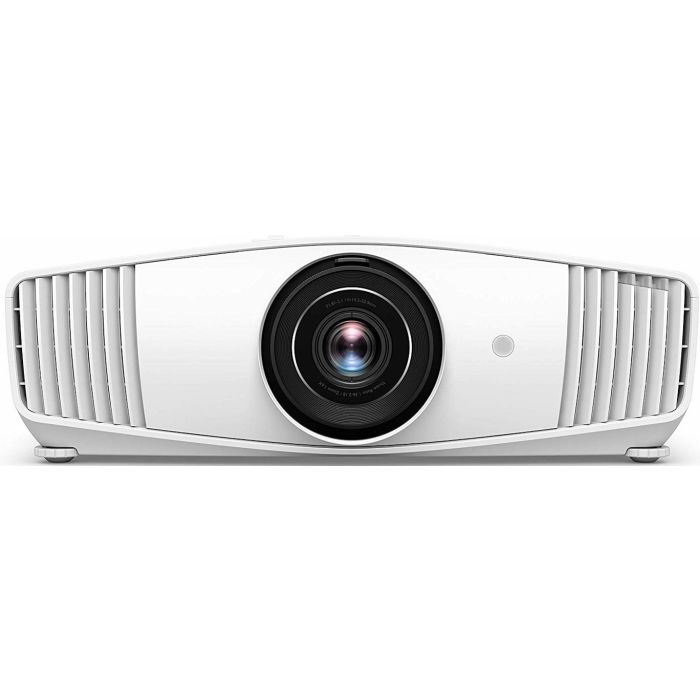

BenQ W5700S 4K UHD HDR Home Cinema Projector
In stock
Available - Usually ships within 2-3 days
Features
| Brand Color | None |
|---|---|
| Warranty The length of time your product is protected by warranty | Full Warranty |
| Product Type | Other |
Tech Specs
Main Specifications
- Resolution: 4K UHD (3840 x 2160)
- Brightness (ANSI lumens): 1800 ANSI Lumens
- Contrast Ratio (FOFO): 100,000:1 (w/ Dynamic Iris)
Display
- Projection System: DLP
- Resolution: 4K UHD (3840 x 2160)
- Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
- Brightness (ANSI lumens): 1800 ANSI Lumens
- Contrast Ratio (FOFO): 100,000:1 (w/ Dynamic Iris)
- Display Colour: 30 Bits (1.07 billion colors)
- Native Aspect Ratio: Native 16:9 (3 aspect ratio selectable)
- Light Source: Lamp
- Light Source Wattage: 245W
- Life: Normal 4,000 hours, Economic 10,000 hours, SmartEco 8,000 hours
Optical
- Throw Ratio: 1.36 ~ 2.18 (100" @ 3 m)
- Zoom Ratio: 1.6X
- Lens: F/# 1.81~2.1, f 14.3(Wide) ~ 22.9(Tele)
- Lens Shift: Vertical: ± 60% / Horizontal: ± 23%
- Keystone Adjustment: 1D, Vertical ± 40 degrees
- Image Size: 60" ~ 200" / 300" (Clear Focus / Maximum)
- Horizontal Frequency: 15K-102KHz
- Vertical Scan Rate: 23-120Hz
- ISF Enabled: Bright/Vivid/Cinema (Rec. 709)/D. Cinema/Silence/ISF Night/ISF Day
- Colour Wheel Segment: 6-Segment (RGBRGB)
- Colour Wheel Speed: 2D: 96Hz ; 100Hz ; 120Hz, 3D: 100Hz, 120Hz
- Rec.709 Coverage: 100%
- DCI-P3 Coverage: 100%
Interface
- HDMI: x2 (HDMI 2.0b & HDCP 2.2)
- USB Type A: x1 (5V/2.5A power supply), x1 (USB 2.0), x1 (USB 3.0)
- USB Type Mini B: x1 Firmware upgrade
- Audio out (3.5 mm Mini Jack): x1
- LAN (RJ45): x1 RJ-45 LAN input jack (10/100M)
- RS232 (DB-9 pin): x1 RS232 In (D-sub 9pin, male)
- DC 12V Trigger (3.5 mm Jack): x1 (3.5mm Jack)
- IR Receiver: x2 (Front/Top)
- Wired Remote in (3.5 mm Mini Jack): x1
Special Feature
- HDR: Yes (HDR10, HLG)
- Motion Enhancer (MEMC): Yes
- ISF Night/ Day: Yes
- LAN control: Yes
- CinemaMaster Video+: Yes (4K Motion Enhancer, 4K Pixel Enhancer, Color Enhancer, Flesh Tone)
Compatibility
- HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Power
- Power Supply: VAC 100 ~ 240 (50/60Hz)
- Typical Power Consumption: Max 405W, Normal 330W, Eco 247W
- Standby Power Consumption: 0.5W Max. at 100 ~ 240VAC
- Network Stand-by Power Consumption: <2W
- Acoustic Noise (Typ./Eco.): 32dBA / 26dBA
- Operating Temperature: 0~40 degrees (Celcius)
Dimension and Weight
- Dimensions (W x H x D)(mm): 492 x 168 x 349
- Net Weight (kg/ lb): 6.5kg / 14.3lbs
Accessories (Standard)
- Remote Control w/ Battery: Remote Control w/ Battery x 1 (RCV016)
- Power Cable (by region): Power Cord (by region) x 1(3m)
- User Manual CD: Yes (27L)
- Quick Start Guide: Yes (9L)
- Warranty Card (by region): Yes
- Lens cover: x 1
Description
BenQ W5700 4K UHD HDR Home Cinema Projector is a true 4K UHD HDR home cinema projector that’s perfect if you’re looking for outstanding cinematic experiences with full colour and precise detail and suitable for permanent, temporary or throw installations.
It includes super-wide colour space up to 100% DCI-P3, which delivers film-like texture and playback the way directors envisioned, 100000:1 contrast ratio for viewing anytime, 4K HDR CinePrime with CinematicColor technology that brings movies to life, support for 3D content and much more.
Watch Films the Way Directors Intended
BenQ CinematicColor technology achieves up to 100% of the digital-cinema industry’s super-wide DCI-P3 colour space, which is 1.26 times of the Rec. 709 colour space. This allows you to achieve a more accurate and precise reproduction of the filmmaker’s intentions. With DCI-P3, the W5700s can deliver richer, cleaner and more lifelike colours than ever possible on a 1080p Full HD TV.
Optimised Viewing
BenQ’s exclusive HDR-PRO offers an incredible contrast range (100,000:1) to bring out every detail form 4K content. And the 4K UHD 3840x2160 resolution with 8.3 million distinct pixels for each frame, which is four times the resolution of Full HD 1080p, reduces pixel blur for improved clarity and crisp defined details.
Cinematic Colour Technology
BenQ worked extensively on the W5700s for it to deliver precise levels of D65 colour temperature, gamma, black level, white level, neutral grey, RGBCMY colour tracking, hue, saturation, brightness and output based on DCI-P3 and Rec. 709. Combined with BenQ’s DCI-P3 Cinematic Colour technology’s enhanced colour mapping, the W5700 produces vibrant, immersive and lifelike colours automatically tuned for when viewing DCI-P3 4K Blu-ray movies.
Fit For Any Room
The W5700s can be used day or night in any type of room. The built in ISFccc calibration system allows image and colour performance to be customized to fit your room, along with pre-set light balance modes for day and night. This is allows you to get the best possible colours, balance and light no matter where the W5700s is installed.
Flexible Installation
The W5700s uses lens shift to suit your installation needs. Vertically it can shift 60% up or down and 23% horizontally. The W5700s is also flexible enough to be installed close to the walls it’s projecting on with the use of a 1.6X big zoom and 1.36 ~ 2.18 (100" @ 3 m) throw ratio. The w5700s will adapt to any room size or shape.
Practical Build
To prevent light pollution the W5700s is equipped with a patterned lens ring to prevent stray light and a rearward tilt to eliminate optical engine light. The anti-accumulation lens hood prevents falling dust from gathering and a vertical louver air intake rejects dust from cooling system.
